Premium Efficient Stainless Steel Motor, Totally Enclosed Non-Ventilated, 0.75 HP, 1800 RPM, 230/460V, 56CRD Frame, C-Face Round Body (Footless) 460V 60HZ Three Phase 75 HP Stainless Steel

WorldWide ElectricSKU: SSPENV34-18-56CRD

Price:
Sale price$515.63
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

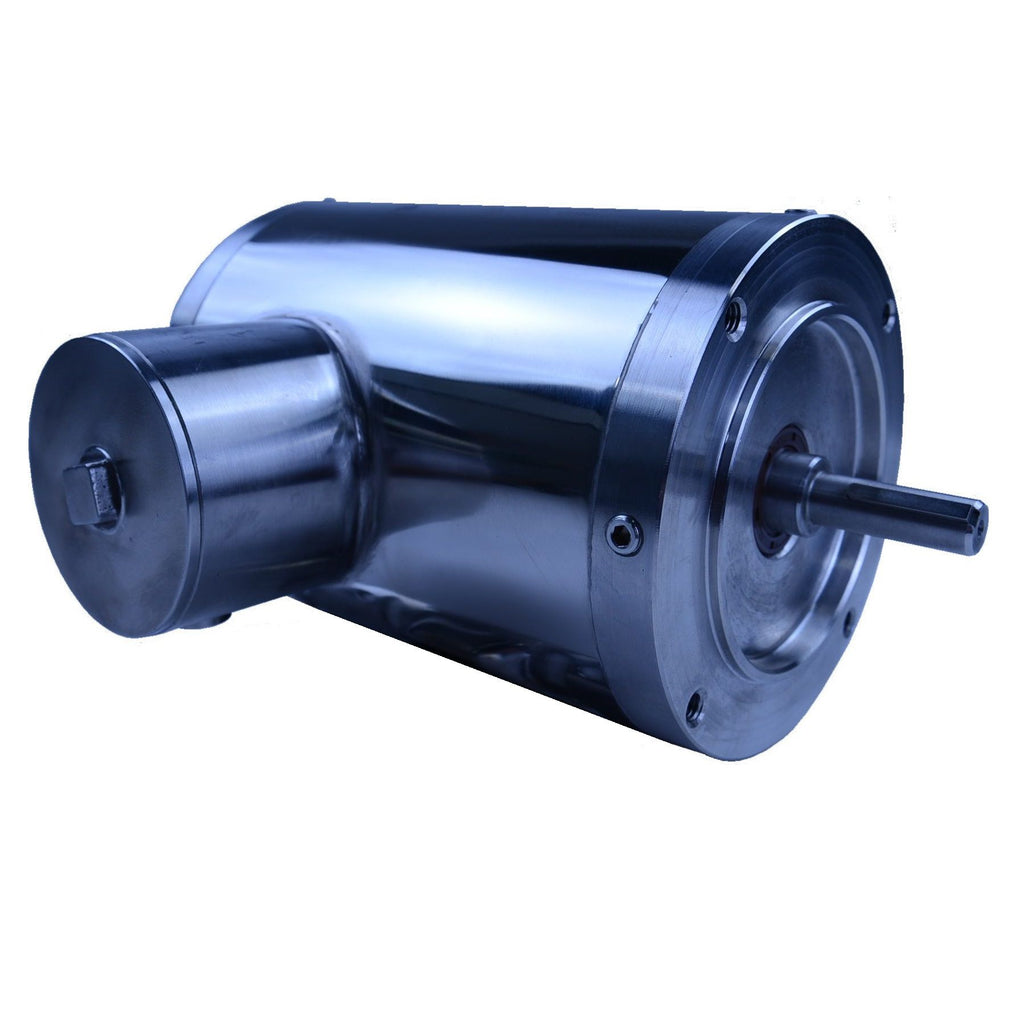

Premium Efficient Stainless Steel Motor by WorldWide Electric

Introducing the Premium Efficient Stainless Steel Motor, designed for durability and high performance in demanding wash-down applications. This 0.75 HP motor operates at 1800 RPM and is suitable for 230/460V three-phase power, making it an ideal choice for various industrial settings.

Key features include:

  • Type: Wash-down, Stainless Steel Motor
  • Efficiency: Premium Efficiency, Totally Enclosed Non-Ventilated (TENV)
  • Frame Size: 56CRD
  • Mounting: C-Face Round Body (Footless)
  • Service Factor: 1.15 SF

This motor is built to withstand harsh environments, ensuring longevity and reliability. Whether you are replacing an existing motor or upgrading your equipment, this stainless steel motor is the perfect solution.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches this motor, and don’t hesitate to reach out if you need help locating the right item.

Category Electric Motors
Approximate Weight (lbs) 33
Degree of Protection IP69K
Duty Cycle S1
Efficiency 100% 81.5%
Enclosure Type TENV
FL Efficiency (%) 81.5
Frame Size 56CRD
Full Load Amps @ 460V 1.2
Horsepower 0.75
Insulation Class Class F
Locked Rotor Time (Hot) 12 seconds
Max. Ambient Temperature 40°C
Max. Elevation 3300 ft
Mounting Type C-Face Round Body (Footless)
NEMA Code Letter N
NEMA Design B
Phase Three-Phase
Poles 2
RPM 1800
Service Factor 1.15
Temperature Rise (C) 80 C
Voltage 230/460

Motor Curves
