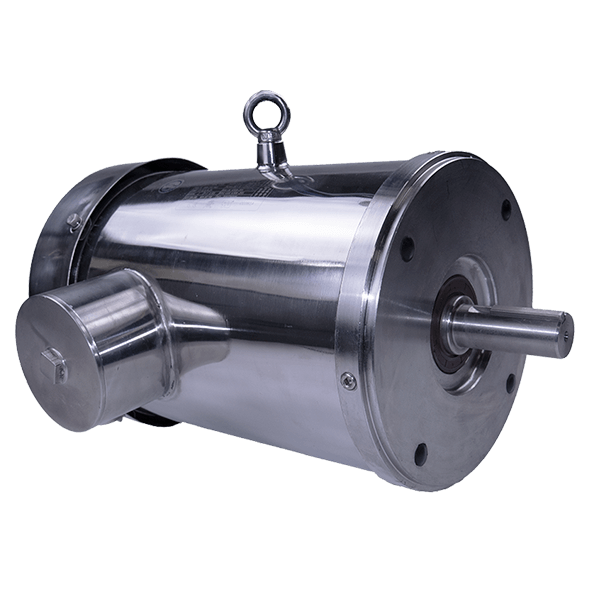

Premium Efficient Stainless Steel Motor, 7.5 HP, 3600 RPM, 230/460V, 213TC Frame, C-Face Round Body (Footless) 460V 60HZ Three Phase 7.5 HP Stainless Steel

Worldwide ElectricSKU: SSPE7.5-36-213TCRD

Price:
Sale price$2,389.93
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

WorldWide Electric Replacement Part — Component
Stainless Steel

The WorldWide Electric SSPE7.5-36-213TCRD (Stainless Steel) for WorldWide Electric pump systems.

Part Specifications
Part Number SSPE7.5-36-213TCRD
Material Stainless Steel
Brand WorldWide Electric
⚠ Confirm Compatibility Before OrderingAlways verify this part is correct for your specific pump model. Contact PumpStop with your pump model number and we'll confirm.
Category Electric Motors
Subcategory Stainless Steel / Washdown Duty Motors
Approximate Weight (lbs) 153.5
Area of Classification Div.2 Class I, Gr. A,B,C&D T2B
Breakdown Torque (BDT) 270%
Connection Diagram 9 Lead 2Y/Y
DE Bearing 6308 2RS
DE Regreasing Interval No Need
Degree of Protection IP69K
Duty Cycle S1
Efficiency 100% 89.5%
Efficiency 50% 88%
Efficiency 75% 88%
Enclosure Type TEFC
F1/F2 Suitable Unsuitable
Frame Size 213TC
Frequency 60 HZ
Full Load Amps @ 208V 20.5
Full Load Amps @ 230V 19
Full Load Amps @ 460V 9.5
Full Load RPM 3520
Full Load Torque 11.1 lb.ft.
Grease Quantity No Need
Grease Type Mobil Polyrex EM
Horsepower 7.5
Insulation Class Class F
Inverter Rating 10:1 CT/20:1 VT
Locked Rotor Amps @ 230V 127
Locked Rotor Amps @ 460V 63.5
Locked Rotor Time (Hot) 12 seconds
Locked Rotor Torque 225%
Max. Ambient Temperature 40°C
Max. Elevation 3300 ft
Moment of Inertia 0.55 lb.ft.^2
Mounting Type C-Face Round Body (Footless)
NEMA Code Letter H
NEMA Design B
No Load Current @ 230V 8.60
No Load Current @ 460V 4.30
Number of Starts/Hr 10
ODE Bearing 6208 2RS
ODE Regreasing Interval No Need
Phase Three-Phase
Poles 2
Power Factor 100% 85%
Power Factor 50% 68%
Power Factor 75% 80%
Rotation Bidirectional
RPM 3600
Service Factor 1.15
Shaft Material sus304
Slip 2.22%
Sound Pressure Level 81 dB(A)
Standard NEMA MG1, UL1004
Temperature Rise (C) 80 C
Terminal Box Location F1
Voltage 230/460

Motor Curves
