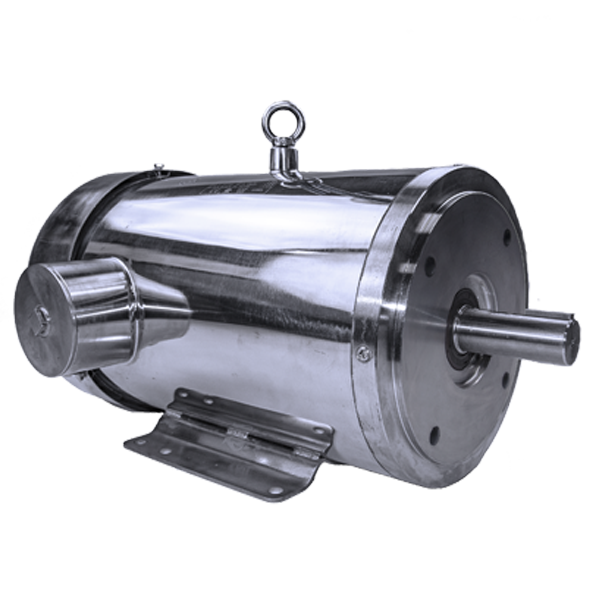

Premium Efficient Stainless Steel Motor, 5 HP, 1200 RPM, 230/460V, 215TC Frame, C-Face With Feet 460V 60HZ Three Phase 5 HP Stainless Steel

Worldwide ElectricSKU: SSPE5-12-215TC

Price:
Sale price$2,457.89
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

WorldWide Electric Replacement Part — Component
Stainless Steel

The WorldWide Electric SSPE5-12-215TC (Stainless Steel) for WorldWide Electric pump systems.

Part Specifications
Part Number SSPE5-12-215TC
Material Stainless Steel
Brand WorldWide Electric
⚠ Confirm Compatibility Before OrderingAlways verify this part is correct for your specific pump model. Contact PumpStop with your pump model number and we'll confirm.
Category Electric Motors
Approximate Weight (lbs) 200
Area of Classification Div.2 Class I, Gr. A,B,C&D T2B
Breakdown Torque (BDT) 270%
Connection Diagram 9 Lead 2Y/Y
DE Bearing 6308 2RS
DE Regreasing Interval No Need
Degree of Protection IP69K
Duty Cycle S1
Efficiency 100% 89.5%
Efficiency 50% 86%
Efficiency 75% 87.5%
Enclosure Type TEFC
F1/F2 Suitable Unsuitable
Frame Size 215TC
Frequency 60 HZ
Full Load Amps @ 208V 15
Full Load Amps @ 230V 14
Full Load Amps @ 460V 7
Full Load RPM 1175
Full Load Torque 22.1 lb.ft.
Grease Quantity No Need
Grease Type Mobil Polyrex EM
Horsepower 5
Insulation Class Class F
Inverter Rating 10:1 CT/20:1 VT
Locked Rotor Amps @ 230V 92
Locked Rotor Amps @ 460V 46
Locked Rotor Time (Hot) 12 seconds
Locked Rotor Torque 225%
Max. Ambient Temperature 40°C
Max. Elevation 3300 ft
Moment of Inertia 1.356 lb.ft.^2
Mounting Type C-Face with Feet
NEMA Code Letter J
NEMA Design B
No Load Current @ 230V 8.00
No Load Current @ 460V 4.00
Number of Starts/Hr 12
ODE Bearing 6208 2RS
ODE Regreasing Interval No Need
Phase Three-Phase
Poles 6
Power Factor 100% 78%
Power Factor 50% 55%
Power Factor 75% 67%
Rotation Bidirectional
RPM 1200
Service Factor 1.15
Shaft Material sus304
Slip 2.08%
Sound Pressure Level 61 dB(A)
Standard NEMA MG1, UL1004
Temperature Rise (C) 80 C
Terminal Box Location F1
Voltage 230/460
