Description
WorldWide Electric Replacement Part — Component

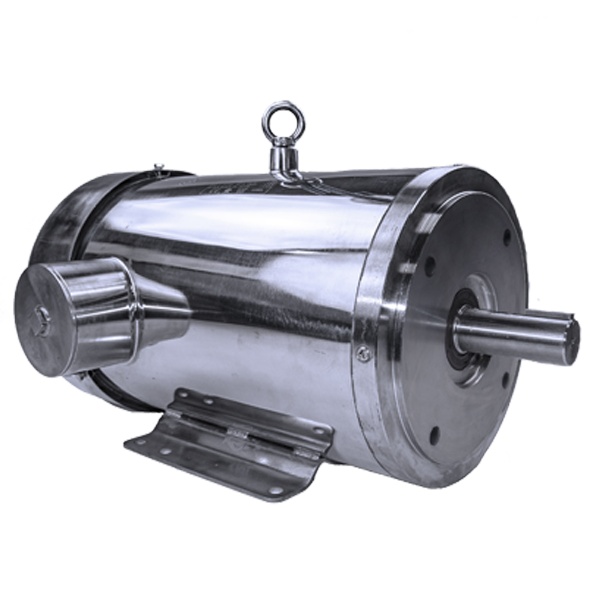

The WorldWide Electric SSPE2-36-145TC (Stainless Steel) for WorldWide Electric pump systems.
Part Specifications
| Part Number | SSPE2-36-145TC |
| Material | Stainless Steel |
| Brand | WorldWide Electric |
⚠ Confirm Compatibility Before OrderingAlways verify this part is correct for your specific pump model. Contact PumpStop with your pump model number and we'll confirm.
- Category
- Electric Motors
- Approximate Weight (lbs)
- 46
- Area of Classification
- Div.2 Class I, Gr. A,B,C&D T2B
- Breakdown Torque (BDT)
- 300%
- Connection Diagram
- 9 Lead 2Y/Y
- DE Bearing
- 6205 2RS
- DE Regreasing Interval
- No Need
- Degree of Protection
- IP69K
- Duty Cycle
- S1
- Efficiency 100%
- 85.5%
- Efficiency 50%
- 75%
- Efficiency 75%
- 79%
- Enclosure Type
- TEFC
- F1/F2 Suitable
- Unsuitable
- Frame Size
- 145TC
- Frequency
- 60 HZ
- Full Load Amps @ 208V
- 4.9
- Full Load Amps @ 230V
- 4.8
- Full Load Amps @ 460V
- 2.4
- Full Load RPM
- 3480
- Full Load Torque
- 2.9 lb.ft.
- Grease Quantity
- No Need
- Grease Type
- Mobil Polyrex EM
- Horsepower
- 2
- Insulation Class
- Class F
- Inverter Rating
- 10:1 CT/20:1 VT
- Locked Rotor Amps @ 230V
- 50
- Locked Rotor Amps @ 460V
- 25
- Locked Rotor Time (Hot)
- 12 seconds
- Locked Rotor Torque
- 285%
- Max. Ambient Temperature
- 40°C
- Max. Elevation
- 3300 ft
- Moment of Inertia
- 0.094 lb.ft.^2
- Mounting Type
- C-Face with Feet
- NEMA Code Letter
- L
- NEMA Design
- B
- No Load Current @ 230V
- 1.70
- No Load Current @ 460V
- 0.85
- Number of Starts/Hr
- 10
- ODE Bearing
- 6205 2RS
- ODE Regreasing Interval
- No Need
- Phase
- Three-Phase
- Poles
- 2
- Power Factor 100%
- 91%
- Power Factor 50%
- 78%
- Power Factor 75%
- 85%
- Rotation
- Bidirectional
- RPM
- 3600
- Service Factor
- 1.15
- Shaft Material
- sus304
- Slip
- 3.33%
- Sound Pressure Level
- 76 dB(A)
- Standard
- NEMA MG1, UL1004
- Temperature Rise (C)
- 80 C
- Terminal Box Location
- F1
- Voltage
- 230/460
