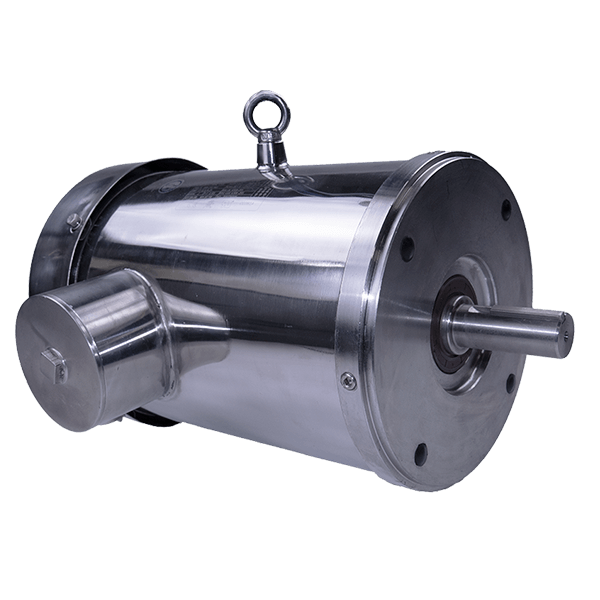

Premium Efficient Stainless Steel Motor, 2 HP, 1800 RPM, 230/460V, 56C Frame, C-Face Round Body (Footless) 460V 60HZ Three Phase 2 HP Stainless Steel 56°C

WorldWide ElectricSKU: SSPE2-18-56CRD

Price:
Sale price$720.41
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Premium Efficient Stainless Steel Motor - 2 HP, 1800 RPM

Introducing the WorldWide Electric Wash-down Stainless Steel Motor, a high-performance solution designed for demanding environments. This 2 HP motor operates at 1800 RPM and is compatible with 230/460V power supply, making it ideal for various industrial applications.

Key features include:

  • Premium Efficiency: Engineered for optimal performance and energy savings.
  • Durable Stainless Steel Construction: Built to withstand harsh conditions, ensuring longevity and reliability.
  • TEFC Design: Totally Enclosed Fan Cooled (TEFC) for enhanced protection against dust and moisture.
  • C-Face Round Body (Footless): Versatile mounting options for easy installation.
  • 56C Frame: Standardized frame size for compatibility with various applications.

This motor is perfect for wash-down applications, providing the durability and efficiency needed in food processing, chemical handling, and other rigorous environments.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches this motor, SKU: SSPE2-18-56CRD, to ensure compatibility.

Upgrade your operations with the WorldWide Electric Stainless Steel Motor today!

Category Electric Motors
Subcategory Stainless Steel / Washdown Duty Motors
Approximate Weight (lbs) 50
Area of Classification Div.2 Class I, Gr. A,B,C&D T2B
Breakdown Torque (BDT) 300%
Connection Diagram 9 Lead 2Y/Y
DE Bearing 6205 2RS
DE Regreasing Interval No Need
Degree of Protection IP69K
Duty Cycle S1
Efficiency 100% 86.5%
Efficiency 50% 80%
Efficiency 75% 83%
Enclosure Type TEFC
F1/F2 Suitable Unsuitable
Frame Size 56C
Frequency 60 HZ
Full Load Amps @ 208V 6.2
Full Load Amps @ 230V 6
Full Load Amps @ 460V 3
Full Load RPM 1750
Full Load Torque 5.9 lb.ft.
Grease Quantity No Need
Grease Type Mobil Polyrex EM
Horsepower 2
Insulation Class Class F
Inverter Rating 10:1 CT/20:1 VT
Locked Rotor Amps @ 230V 50
Locked Rotor Amps @ 460V 25
Locked Rotor Time (Hot) 12 seconds
Locked Rotor Torque 285%
Max. Ambient Temperature 40°C
Max. Elevation 3300 ft
Moment of Inertia 0.184 lb.ft.^2
Mounting Type C-Face Round Body (Footless)
NEMA Code Letter L
NEMA Design B
No Load Current @ 230V 3.50
No Load Current @ 460V 1.75
Number of Starts/Hr 12
ODE Bearing 6205 2RS
ODE Regreasing Interval No Need
Phase Three-Phase
Poles 4
Power Factor 100% 78%
Power Factor 50% 52%
Power Factor 75% 66%
Rotation Bidirectional
RPM 1800
Service Factor 1.15
Shaft Material sus304
Slip 2.78%
Sound Pressure Level 61 dB(A)
Standard NEMA MG1, UL1004
Temperature Rise (C) 80 C
Terminal Box Location F1
Voltage 230/460

Motor Curves
