Premium Efficient Stainless Steel Motor, 2 HP, 1800 RPM, 230/460V, 145TC Frame, C-Face Round Body (Footless) 460V 60HZ Three Phase 2 HP Stainless Steel

WorldWide ElectricSKU: SSPE2-18-145TCRD

Price:
Sale price$739.47
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

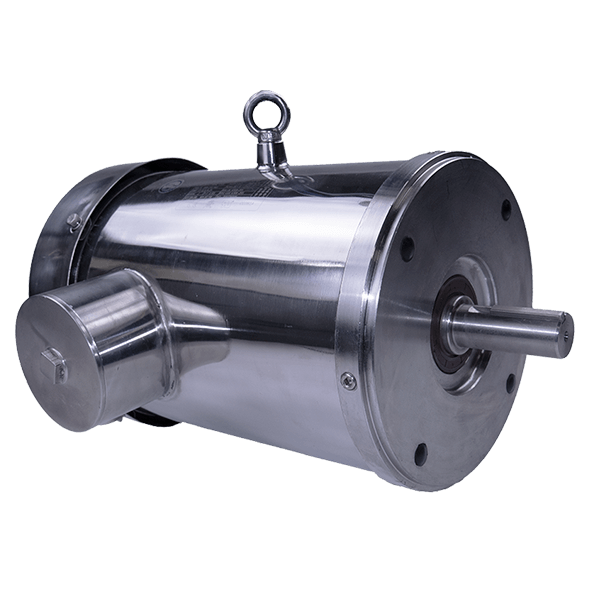

Premium Efficient Stainless Steel Motor - 2 HP, 1800 RPM

Introducing the WorldWide Electric Wash-down Stainless Steel Motor, a top-tier solution for your industrial and commercial applications. This 2 HP motor operates at 1800 RPM and is designed for three-phase power with a voltage rating of 230/460V. Built with a 145TC frame and a C-face round body (footless) design, this motor is perfect for environments that require durability and efficiency.

Constructed from premium stainless steel, this TEFC (Totally Enclosed Fan Cooled) motor is engineered for wash-down applications, ensuring it withstands harsh conditions while maintaining optimal performance. With a service factor of 1.15, it provides reliable operation and energy efficiency, making it an excellent choice for various industrial tasks.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches this motor, which is SSPE2-18-145TCRD. If you encounter any difficulties, our team is here to help you find the perfect solution.

Upgrade your operations with the WorldWide Electric Stainless Steel Motor today!

Category Electric Motors
Subcategory Stainless Steel / Washdown Duty Motors
Approximate Weight (lbs) 50
Area of Classification Div.2 Class I, Gr. A,B,C&D T2B
Breakdown Torque (BDT) 300%
Connection Diagram 9 Lead 2Y/Y
DE Bearing 6205 2RS
DE Regreasing Interval No Need
Degree of Protection IP69K
Duty Cycle S1
Efficiency 100% 86.5%
Efficiency 50% 80%
Efficiency 75% 83%
Enclosure Type TEFC
F1/F2 Suitable Unsuitable
Frame Size 145TC
Frequency 60 HZ
Full Load Amps @ 208V 6.2
Full Load Amps @ 230V 6
Full Load Amps @ 460V 3
Full Load RPM 1750
Full Load Torque 5.9 lb.ft.
Grease Quantity No Need
Grease Type Mobil Polyrex EM
Horsepower 2
Insulation Class Class F
Inverter Rating 10:1 CT/20:1 VT
Locked Rotor Amps @ 230V 50
Locked Rotor Amps @ 460V 25
Locked Rotor Time (Hot) 12 seconds
Locked Rotor Torque 285%
Max. Ambient Temperature 40°C
Max. Elevation 3300 ft
Moment of Inertia 0.184 lb.ft.^2
Mounting Type C-Face Round Body (Footless)
NEMA Code Letter L
NEMA Design B
No Load Current @ 230V 3.50
No Load Current @ 460V 1.75
Number of Starts/Hr 12
ODE Bearing 6205 2RS
ODE Regreasing Interval No Need
Phase Three-Phase
Poles 4
Power Factor 100% 78%
Power Factor 50% 52%
Power Factor 75% 66%
Rotation Bidirectional
RPM 1800
Service Factor 1.15
Shaft Material sus304
Slip 2.78%
Sound Pressure Level 61 dB(A)
Standard NEMA MG1, UL1004
Temperature Rise (C) 80 C
Terminal Box Location F1
Voltage 230/460

Motor Curves
