Description

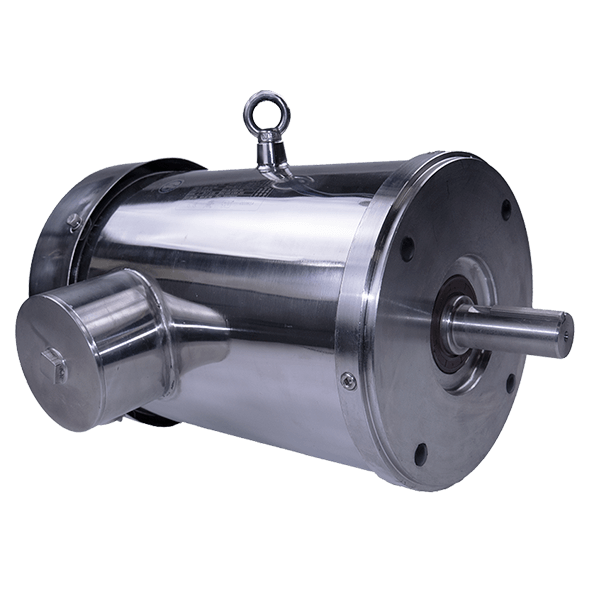

WorldWide Electric Replacement Part — Component
The WorldWide Electric SSPE20-18-256TCRD (Stainless Steel) for WorldWide Electric pump systems.
Part Specifications
| Part Number | SSPE20-18-256TCRD |
| Material | Stainless Steel |
| Brand | WorldWide Electric |
⚠ Confirm Compatibility Before OrderingAlways verify this part is correct for your specific pump model. Contact PumpStop with your pump model number and we'll confirm.
- Category
- Electric Motors
- Subcategory
- Stainless Steel / Washdown Duty Motors
- Approximate Weight (lbs)
- 434
- Area of Classification
- Div.2 Class I, Gr. A,B,C&D T2B
- Breakdown Torque (BDT)
- 250%
- Connection Diagram
- 12 Lead 2Δ/Δ
- DE Bearing
- 6309 2RS
- DE Regreasing Interval
- No Need
- Degree of Protection
- IP69K
- Duty Cycle
- S1
- Efficiency 100%
- 93%
- Efficiency 50%
- 92%
- Efficiency 75%
- 92.5%
- Enclosure Type
- TEFC
- F1/F2 Suitable
- Unsuitable
- Frame Size
- 256TC
- Frequency
- 60 HZ
- Full Load Amps @ 208V
- 53
- Full Load Amps @ 230V
- 49
- Full Load Amps @ 460V
- 24.5
- Full Load RPM
- 1765
- Full Load Torque
- 58.6 lb.ft.
- Grease Quantity
- No Need
- Grease Type
- Mobil Polyrex EM
- Horsepower
- 20
- Insulation Class
- Class F
- Inverter Rating
- 10:1 CT/20:1 VT
- Locked Rotor Amps @ 230V
- 290
- Locked Rotor Amps @ 460V
- 145
- Locked Rotor Time (Hot)
- 12 seconds
- Locked Rotor Torque
- 200%
- Max. Ambient Temperature
- 40°C
- Max. Elevation
- 3300 ft
- Moment of Inertia
- 2.4 lb.ft.^2
- Mounting Type
- C-Face Round Body (Footless)
- NEMA Code Letter
- G
- NEMA Design
- B
- No Load Current @ 230V
- 22.00
- No Load Current @ 460V
- 11.00
- Number of Starts/Hr
- 12
- ODE Bearing
- 6309 2RS
- ODE Regreasing Interval
- No Need
- Phase
- Three-Phase
- Poles
- 4
- Power Factor 100%
- 85%
- Power Factor 50%
- 63%
- Power Factor 75%
- 75%
- Rotation
- Bidirectional
- RPM
- 1800
- Service Factor
- 1.15
- Shaft Material
- sus304
- Slip
- 1.94%
- Sound Pressure Level
- 69 dB(A)
- Standard
- NEMA MG1, UL1004
- Temperature Rise (C)
- 80 C
- Terminal Box Location
- F1
- Voltage
- 230/460
