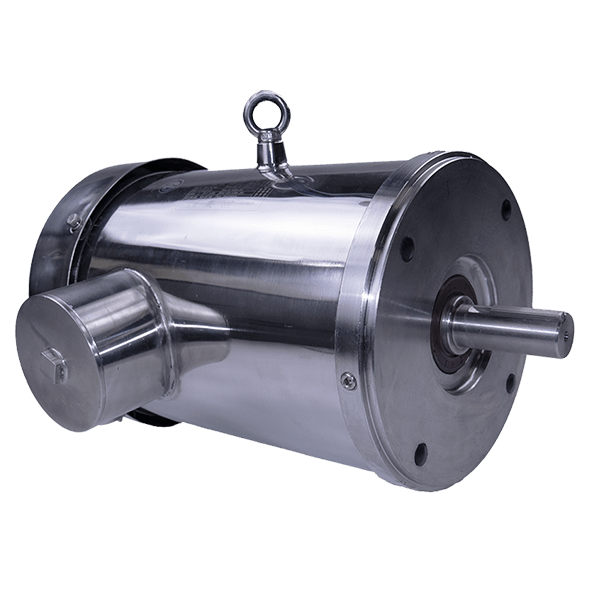

Premium Efficient Stainless Steel Motor, 10 HP, 1800 RPM, 230/460V, 215TC Frame, C-Face Round Body (Footless) 460V 60HZ Three Phase 10 HP Stainless Steel

Worldwide ElectricSKU: SSPE10-18-215TCRD

Price:
Sale price$2,534.77
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

WorldWide Electric Replacement Part — Component
Stainless Steel

The WorldWide Electric SSPE10-18-215TCRD (Stainless Steel) for WorldWide Electric pump systems.

Part Specifications
Part Number SSPE10-18-215TCRD
Material Stainless Steel
Brand WorldWide Electric
⚠ Confirm Compatibility Before OrderingAlways verify this part is correct for your specific pump model. Contact PumpStop with your pump model number and we'll confirm.
Category Electric Motors
Subcategory Stainless Steel / Washdown Duty Motors
Approximate Weight (lbs) 208.5
Area of Classification Div.2 Class I, Gr. A,B,C&D T2B
Breakdown Torque (BDT) 265%
Connection Diagram 9 Lead 2Y/Y
DE Bearing 6308 2RS
DE Regreasing Interval No Need
Degree of Protection IP69K
Duty Cycle S1
Efficiency 100% 91.7%
Efficiency 50% 91%
Efficiency 75% 92%
Enclosure Type TEFC
F1/F2 Suitable Unsuitable
Frame Size 215TC
Frequency 60 HZ
Full Load Amps @ 208V 26
Full Load Amps @ 230V 24.4
Full Load Amps @ 460V 12.2
Full Load RPM 1760
Full Load Torque 29.3 lb.ft.
Grease Quantity No Need
Grease Type Mobil Polyrex EM
Horsepower 10
Insulation Class Class F
Inverter Rating 10:1 CT/20:1 VT
Locked Rotor Amps @ 230V 162
Locked Rotor Amps @ 460V 81
Locked Rotor Time (Hot) 12 seconds
Locked Rotor Torque 200%
Max. Ambient Temperature 40°C
Max. Elevation 3300 ft
Moment of Inertia 1.16 lb.ft.^2
Mounting Type C-Face Round Body (Footless)
NEMA Code Letter H
NEMA Design B
No Load Current @ 230V 12.20
No Load Current @ 460V 6.10
Number of Starts/Hr 12
ODE Bearing 6208 2RS
ODE Regreasing Interval No Need
Phase Three-Phase
Poles 4
Power Factor 100% 83%
Power Factor 50% 65%
Power Factor 75% 76%
Rotation Bidirectional
RPM 1800
Service Factor 1.15
Shaft Material sus304
Slip 2.22%
Sound Pressure Level 69 dB(A)
Standard NEMA MG1, UL1004
Temperature Rise (C) 80 C
Terminal Box Location F1
Voltage 230/460
