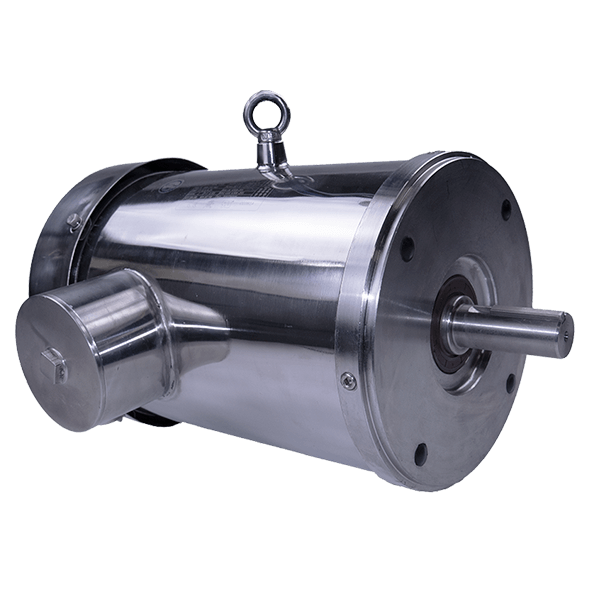

Premium Efficient Stainless Steel Motor, 0.75 HP, 1800 RPM, 230/460V, 56C Frame, C-Face Round Body (Footless) 460V 60HZ Three Phase 75 HP Stainless Steel 56°C

Worldwide ElectricSKU: SSPE34-18-56CRD

Price:
Sale price$510.77
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

WorldWide Electric Replacement Part — Component
Stainless Steel

The WorldWide Electric SSPE34-18-56CRD (Stainless Steel) for WorldWide Electric pump systems.

Part Specifications
Part Number SSPE34-18-56CRD
Material Stainless Steel
Brand WorldWide Electric
⚠ Confirm Compatibility Before OrderingAlways verify this part is correct for your specific pump model. Contact PumpStop with your pump model number and we'll confirm.
Category Electric Motors
Subcategory Stainless Steel / Washdown Duty Motors
Approximate Weight (lbs) 32
Area of Classification Div.2 Class I, Gr. A,B,C&D T2B
Breakdown Torque (BDT) 300%
Connection Diagram 9 Lead 2Y/Y
DE Bearing 6205 2RS
DE Regreasing Interval No Need
Degree of Protection IP69K
Duty Cycle S1
Efficiency 100% 82.5%
Efficiency 50% 72%
Efficiency 75% 77%
Enclosure Type TEFC
F1/F2 Suitable Unsuitable
Frame Size 56C
Frequency 60 HZ
Full Load Amps @ 208V 2.5
Full Load Amps @ 230V 2.4
Full Load Amps @ 460V 1.2
Full Load RPM 1745
Full Load Torque 2.2 lb.ft.
Grease Quantity No Need
Grease Type Mobil Polyrex EM
Horsepower 0.75
Insulation Class Class F
Inverter Rating 10:1 CT/20:1 VT
Locked Rotor Amps @ 230V 25
Locked Rotor Amps @ 460V 12.5
Locked Rotor Time (Hot) 12 seconds
Locked Rotor Torque 285%
Max. Ambient Temperature 40°C
Max. Elevation 3300 ft
Moment of Inertia 0.084 lb.ft.^2
Mounting Type C-Face Round Body (Footless)
NEMA Code Letter P
NEMA Design B
No Load Current @ 230V 1.80
No Load Current @ 460V 0.90
Number of Starts/Hr 12
ODE Bearing 6205 2RS
ODE Regreasing Interval No Need
Phase Three-Phase
Poles 4
Power Factor 100% 78%
Power Factor 50% 56%
Power Factor 75% 64%
Rotation Bidirectional
RPM 1800
Service Factor 1.15
Shaft Material sus304
Slip 3.06%
Sound Pressure Level 60 dB(A)
Standard NEMA MG1, UL1004
Temperature Rise (C) 80 C
Terminal Box Location F1
Voltage 230/460
