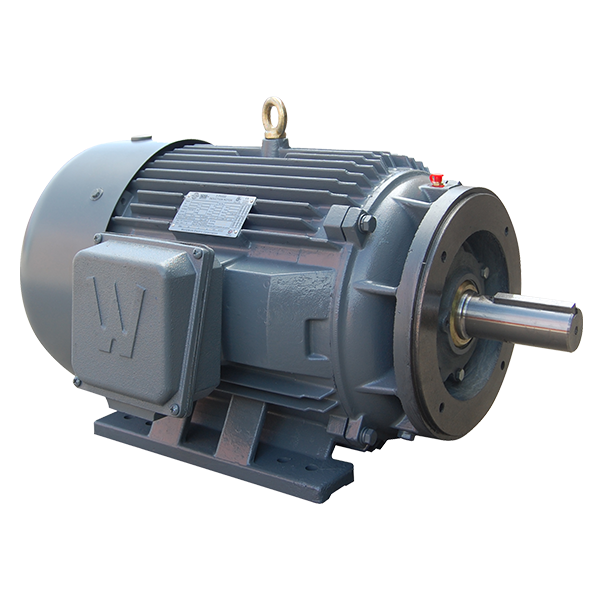

Premium Efficient Severe Duty Motor, 75 HP, 1800 RPM, 230/460V, 365TC Frame, C-Face With Feet 460V 60HZ Three Phase 75 HP Cast Iron

WorldWide ElectricSKU: PEWWE75-18-365TC

Price:
Sale price$5,231.59
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Premium Efficient Severe Duty Motor - 75 HP

Introducing the WorldWide Electric Premium Efficient Severe Duty Motor, designed for high-performance applications. This robust motor features a power rating of 75 HP and operates at 1800 RPM, making it ideal for demanding environments. With a voltage range of 230/460V and a frequency of 60 Hz, this motor is versatile and efficient.

Constructed with a 365TC frame and a cast iron housing, this TEFC (Totally Enclosed Fan Cooled) motor ensures durability and longevity, even in severe duty applications. The C-face rigid mounting design allows for easy installation and reliable operation.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

Upgrade your operations with the WorldWide Electric Premium Efficient Severe Duty Motor and experience the difference in performance and efficiency.

Category Electric Motors
Subcategory PE Severe Duty Motors
Approximate Weight (lbs) 891
Degree of Protection IP55
Enclosure Type TEFC
FL Efficiency (%) 95.4
Frame Size 365TC
Frequency 60/50 HZ*
Full Load Amps 83.8
Horsepower 75
Insulation Class Class F
Mounting Type C-Face with Feet
Phase Three-Phase
RPM 1800
Service Factor 1.25
Voltage 230/460
