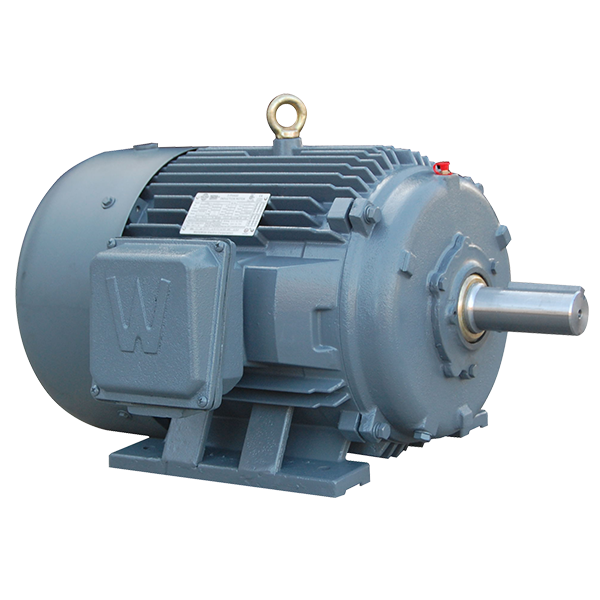

Premium Efficient Severe Duty Motor, 5 HP, 3600 RPM, 230/460V, 184T Frame, Rigid Base 460V 60HZ Three Phase 5 HP Cast Iron

WorldWide ElectricSKU: PEWWE5-36-184T

Price:
Sale price$516.97
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Premium Efficient Severe Duty Motor - 5 HP

Introducing the WorldWide Electric Premium Efficient Severe Duty Motor, designed for high-performance applications. This robust motor features a powerful 5 HP output, operating at 3600 RPM, and is suitable for both 230V and 460V configurations. With a 184T frame and a rigid base, this motor is built to withstand the toughest conditions.

Key features include:

  • Type: General Purpose Motor
  • Voltage: 230/460V
  • Frequency: 60 Hz
  • Service Factor: 1.25 SF
  • Enclosure: TEFC (Totally Enclosed Fan Cooled)
  • Material: Durable Cast Iron
  • Efficiency: Premium Efficiency for reduced energy costs

This motor is ideal for severe duty applications, ensuring reliability and longevity. At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches this motor. If you encounter any difficulties, don’t hesitate to reach out to our knowledgeable team for support.

Category Electric Motors
Subcategory PE Severe Duty Motors
Approximate Weight (lbs) 96
Degree of Protection IP55
Enclosure Type TEFC
FL Efficiency (%) 88.5
Frame Size 184T
Frequency 60/50 HZ*
Full Load Amps 6
Horsepower 5
Insulation Class Class F
Mounting Type Rigid Base
Phase Three-Phase
RPM 3600
Service Factor 1.25
Voltage 230/460

Motor Curves
