Premium Efficient Severe Duty Motor, 350 HP, 1800 RPM, 460V, 586/7UZ Frame, Rigid Base, Insulated Ode Bearing 460V 60HZ Three Phase 350 HP 4.375 In 11.625 In Cast Iron

This item ships free!
WorldWide ElectricSKU: PEWWE350-18-586/7UZ-IB

Price:
Sale price$31,781.83
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

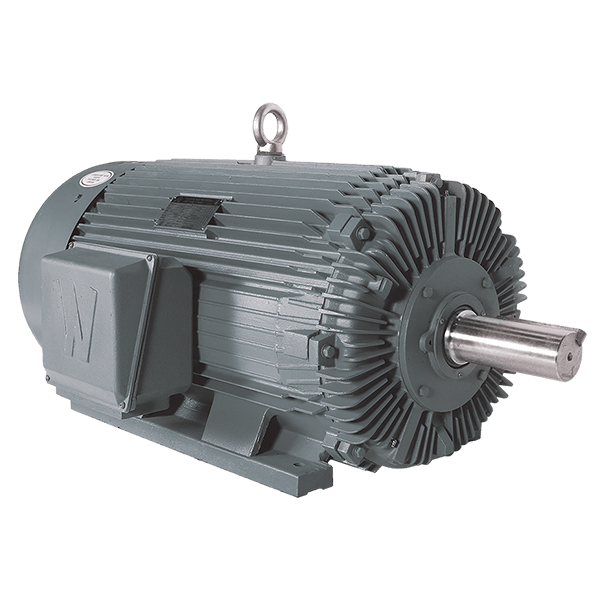

Premium Efficient Severe Duty Motor - 350 HP

Introducing the WorldWide Electric Premium Efficient Severe Duty Motor, designed for high-performance applications requiring reliability and efficiency. This robust motor features a power rating of 350 HP and operates at 1800 RPM, making it ideal for demanding environments.

Key specifications include:

  • Voltage: 460V
  • Frame Size: 586/7UZ
  • Type: TEFC (Totally Enclosed Fan Cooled)
  • Service Factor: 1.15 SF
  • Shaft Diameter: 4.375 inches
  • Shaft Length: 11.625 inches
  • Mounting: Rigid Base
  • Insulated Bearing: ODE

This motor is built with a cast iron construction, ensuring durability and longevity in severe duty applications, including rock crushers and other heavy machinery. Its premium efficiency design helps reduce energy consumption, making it a cost-effective choice for your operations.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches this motor, and don’t hesitate to reach out if you need help locating the right item.

Category Electric Motors
Subcategory Rock Crusher Motors
Degree of Protection IP55
Enclosure Type TEFC
Frame Size 586/7UZ
Frequency 60 HZ
Horsepower 350
Insulation Class Class F
Mounting Type Rigid Base
Phase Three-Phase
RPM 1800
Service Factor 1.15
Voltage 460
