Premium Efficient Severe Duty Motor, 350 HP, 1800 RPM, 460V, 586/7UZ Frame, Rigid Base 460V 60HZ Three Phase 350 HP 4.375 In 11.625 In Cast Iron

WorldWide ElectricSKU: PEWWE350-18-586/7UZ

Price:
Sale price$29,037.64
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

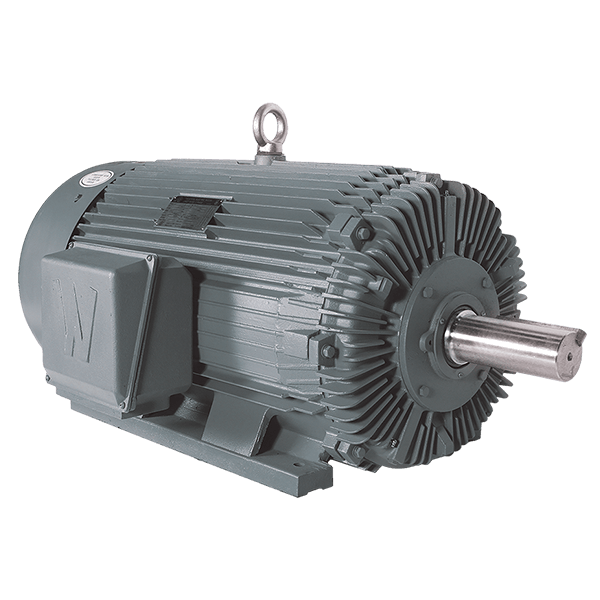

Premium Efficient Severe Duty Motor - 350 HP

Introducing the WorldWide Electric Premium Efficient Severe Duty Motor, designed for high-performance applications. This robust motor features a powerful 350 HP output, operating at 1800 RPM, and is engineered for three-phase power at 460V, making it ideal for demanding environments.

Key specifications include:

  • Frame Size: 586/7UZ
  • Efficiency: Premium Efficiency
  • Type: Totally Enclosed Fan Cooled (TEFC)
  • Mounting: Rigid Base
  • Shaft Diameter: 4.375 inches
  • Shaft Length: 11.625 inches

This motor is built with a cast iron construction, ensuring durability and reliability in severe duty applications, including rock crushing and other heavy-duty tasks. With a service factor of 1.15, it provides extra performance under challenging conditions.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches this motor, SKU: PEWWE350-18-586/7UZ, and don’t hesitate to reach out if you need help locating the right item.

Category Electric Motors
Subcategory Rock Crusher Motors
Approximate Weight (lbs) 4070
Degree of Protection IP55
Enclosure Type TEFC
FL Efficiency (%) 96.2
Frame Size 586/7UZ
Frequency 60 HZ
Full Load Amps 374
Horsepower 350
Insulation Class Class F
Mounting Type Rigid Base
Phase Three-Phase
RPM 1800
Service Factor 1.15
Voltage 460

Motor Curves
