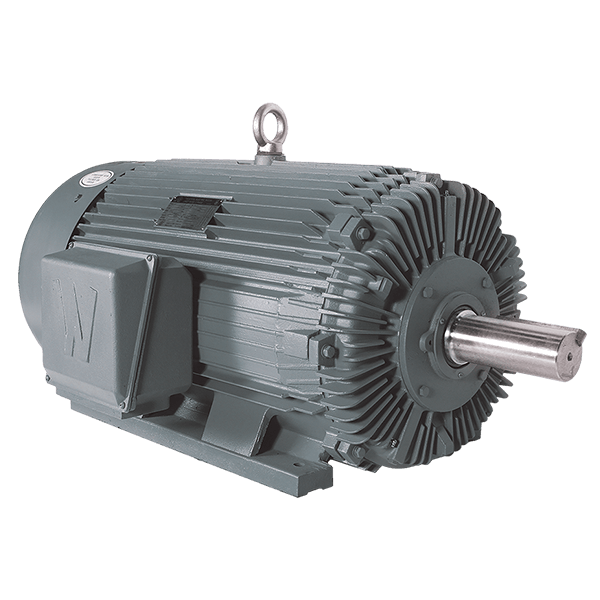

Premium Efficient Severe Duty Motor, 200 HP, 1200 RPM, 460V, 505Z Frame, Rigid Base 460V 60HZ Three Phase 200 HP 3.625 In 10.625 In Cast Iron

WorldWide ElectricSKU: PEWWE200-12-505Z

Price:
Sale price$20,920.49
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Premium Efficient Severe Duty Motor - 200 HP

Introducing the WorldWide Electric Premium Efficient Severe Duty Motor, designed for high-performance applications requiring reliability and efficiency. This robust motor features:

  • Power: 200 HP
  • Speed: 1200 RPM
  • Voltage: 460V
  • Frame Size: 505Z
  • Type: TEFC (Totally Enclosed Fan Cooled)
  • Mounting: Rigid Base
  • Shaft Diameter: 3.625 inches
  • Shaft Length: 10.625 inches
  • Efficiency: Premium Efficiency with 1.15 Service Factor

This motor is ideal for severe duty applications, ensuring optimal performance and durability in demanding environments. With its cast iron construction, it is built to withstand the rigors of industrial use.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility. Don’t hesitate to reach out if you need help finding the right item!

Category Electric Motors
Subcategory PE Severe Duty Motors
Approximate Weight (lbs) 2470
Degree of Protection IP55
Enclosure Type TEFC
FL Efficiency (%) 95.8
Frame Size 505Z
Frequency 60/50 HZ*
Full Load Amps 225
Horsepower 200
Insulation Class Class F
Mounting Type Rigid Base
Phase Three-Phase
RPM 1200
Service Factor 1.25
Voltage 460

Motor Curves
