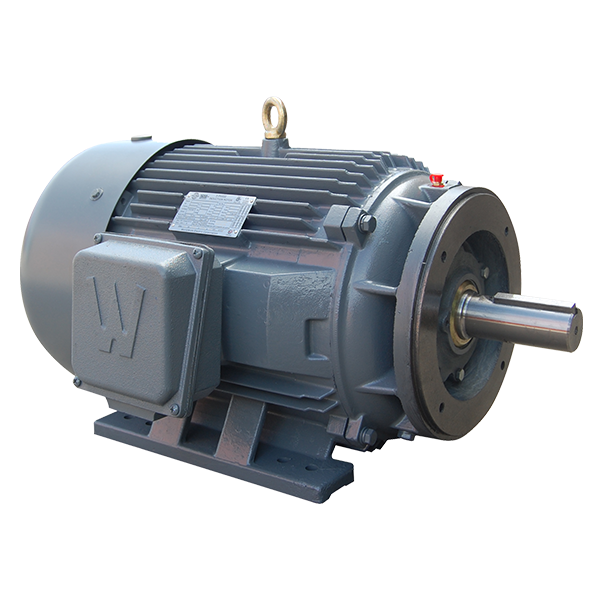

Premium Efficient Severe Duty Motor, 100 HP, 3600 RPM, 230/460V, 405TSC Frame, C-Face With Feet 460V 60HZ Three Phase 100 HP Cast Iron

Worldwide ElectricSKU: PEWWE100-36-405TSC

Price:
Sale price$7,446.72
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

WorldWide Electric Replacement Part — Component
Cast Iron

The WorldWide Electric PEWWE100-36-405TSC (Cast Iron) for WorldWide Electric pump systems.

Part Specifications
Part Number PEWWE100-36-405TSC
Material Cast Iron
Brand WorldWide Electric
⚠ Confirm Compatibility Before OrderingAlways verify this part is correct for your specific pump model. Contact PumpStop with your pump model number and we'll confirm.
Category Electric Motors
Subcategory PE Severe Duty Motors
Approximate Weight (lbs) 1007
Degree of Protection IP55
Enclosure Type TEFC
FL Efficiency (%) 94.2
Frame Size 405TSC
Frequency 60/50 HZ*
Full Load Amps 111
Horsepower 100
Insulation Class Class F
Mounting Type C-Face with Feet
Phase Three-Phase
RPM 3600
Service Factor 1.25
Voltage 230/460

Motor Curves
