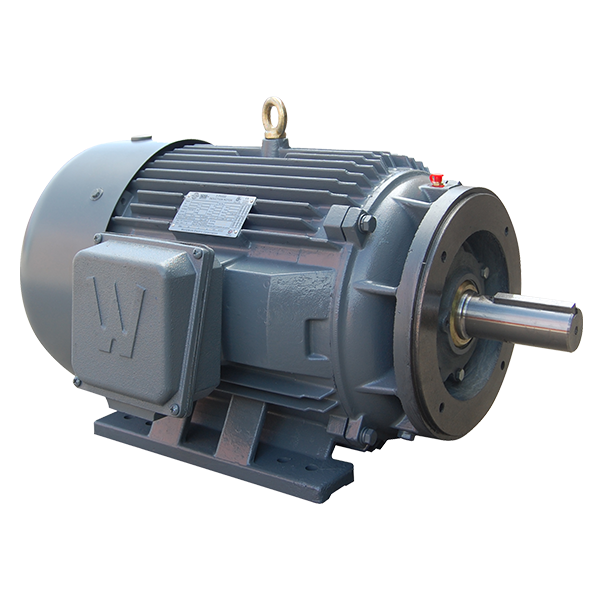

Premium Efficient Severe Duty Motor, 100 HP, 1800 RPM, 230/460V, 405TSC Frame, C-Face With Feet 460V 60HZ Three Phase 100 HP Cast Iron

WorldWide ElectricSKU: PEWWE100-18-405TSC

Price:
Sale price$6,202.57
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Premium Efficient Severe Duty Motor - 100 HP

Introducing the WorldWide Electric Premium Efficient Severe Duty Motor, designed for high-performance applications. This robust motor features a power rating of 100 HP and operates at 1800 RPM, making it ideal for demanding industrial environments.

Key specifications include:

  • Voltage: 230/460V
  • Frame Size: 405TSC
  • Type: C-Face with Feet
  • Efficiency: Premium Efficiency
  • Enclosure: Totally Enclosed Fan Cooled (TEFC)
  • Service Factor: 1.25 SF

Constructed from durable cast iron, this motor is built to withstand severe duty applications, ensuring longevity and reliability. The rigid mounting design allows for easy installation and stability during operation.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches this motor, and don’t hesitate to reach out if you need help locating the right item.

Upgrade your operations with the WorldWide Electric Premium Efficient Severe Duty Motor today!

Category Electric Motors
Subcategory PE Severe Duty Motors
Approximate Weight (lbs) 1198
Degree of Protection IP55
Enclosure Type TEFC
FL Efficiency (%) 95.4
Frame Size 405TSC
Frequency 60/50 HZ*
Full Load Amps 114
Horsepower 100
Insulation Class Class F
Mounting Type C-Face with Feet
Phase Three-Phase
RPM 1800
Service Factor 1.25
Voltage 230/460
