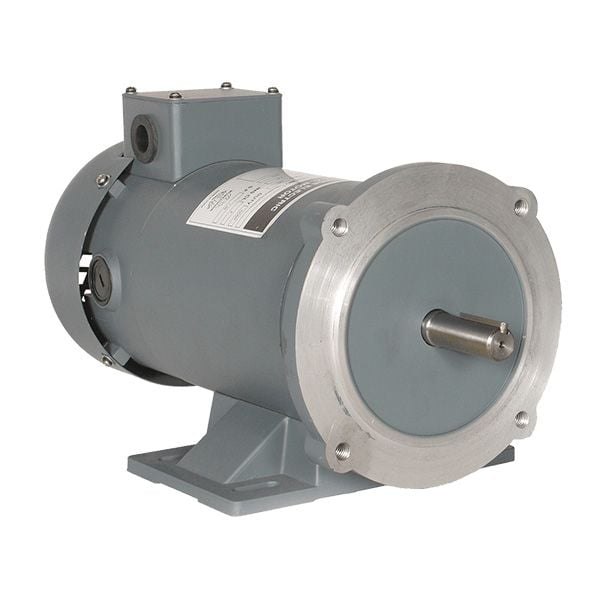

Permanent Magnet DC Motor, 2 HP, 1800 RPM, 180V, 56C Frame, C-Face With Removable Base 180V 2 HP

WorldWide ElectricSKU: WPMDC2-18-180V-56CB

Price:
Sale price$809.08
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

WorldWide Electric DC Motors:

WPMDC 2 HP 1800 RPM 180V DC 56CB FRAME, TEFC, PERMANENT MAGNET DC MOTOR, ROLLED STEEL, C-FACE REMOVABLE BASE MOUNTING

Category Electric Motors
Subcategory Permanent Magnet DC Motors
Approximate Weight (lbs) 65
Degree of Protection IP54
Enclosure Type TEFC
FL Efficiency (%) 85.0
Frame Size 56C
Full Load Amps 9.8
Horsepower 2
Insulation Class Class F
Mounting Type C-Face with Removable Base
RPM 1800
Service Factor 1.0
Voltage 180
