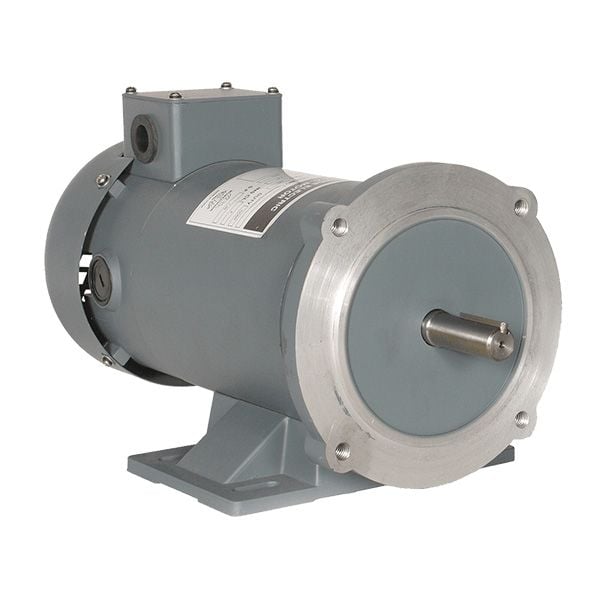

Permanent Magnet DC Motor, 1 HP, 3600 RPM, 12V, 56C Frame, C-Face With Removable Base 12V 1 HP

WorldWide ElectricSKU: WPMDC1-36-12V-56CB

Price:
Sale price$511.31
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Permanent Magnet DC Motor - 1 HP, 3600 RPM, 12V

Introducing the WorldWide Electric Permanent Magnet DC Motor, a high-performance solution designed for various applications. This 1 HP motor operates at 3600 RPM and is powered by a 12V supply, making it ideal for both industrial and commercial use.

Featuring a robust 56C frame and a totally enclosed fan-cooled (TEFC) design, this motor ensures durability and efficient operation. The rolled steel construction provides added strength, while the C-face with removable base mounting allows for easy installation and versatility in mounting options.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches this motor, which is WPMDC1-36-12V-56CB. Our team is here to help you find the perfect fit for your needs.

Upgrade your equipment with the reliable and efficient WorldWide Electric DC Motor today!

Category Electric Motors
Subcategory Permanent Magnet DC Motors
Approximate Weight (lbs) 26
Degree of Protection IP54
Enclosure Type TEFC
FL Efficiency (%) 75
Frame Size 56C
Full Load Amps 82.2
Horsepower 1
Insulation Class Class F
Mounting Type C-Face with Removable Base
RPM 3600
Service Factor 1.0
Voltage 12
