Permanent Magnet DC Motor, 1.5 HP, 1800 RPM, 180V, 145TC Frame, C-Face With Removable Base 180V 1.5 HP

WorldWide ElectricSKU: WPMDC1.5-18-180V-145TCB

Price:
Sale price$756.65
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

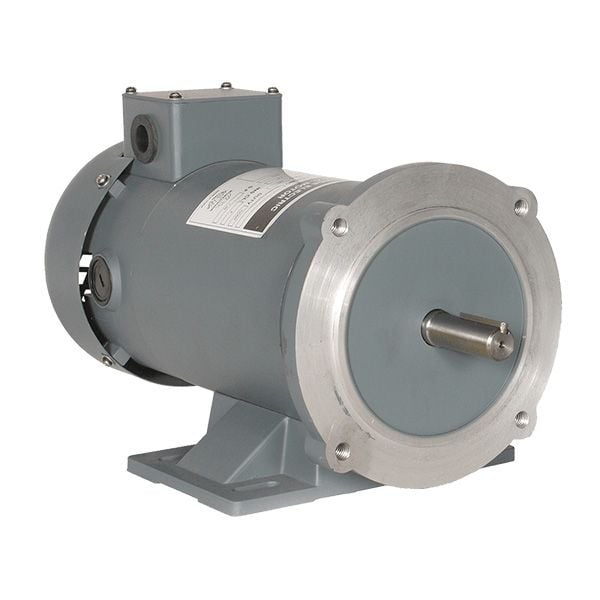

Permanent Magnet DC Motor - 1.5 HP, 1800 RPM, 180V

Introducing the WorldWide Electric WPMDC 1.5 HP Permanent Magnet DC Motor, designed for high performance and reliability. This robust motor operates at 1800 RPM and is rated for 180V, making it an ideal choice for various applications requiring efficient power delivery.

Featuring a 145TCB frame and a totally enclosed fan-cooled (TEFC) design, this motor is built to withstand demanding environments while ensuring optimal cooling and protection. The rolled steel construction adds durability, while the C-face with removable base mounting allows for easy installation and maintenance.

Whether you're looking to replace an existing motor or upgrade your system, the WPMDC 1.5 HP motor is a reliable choice. At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905.

For the best results, check your current pump for the exact part number or SKU that matches this motor. If you're having trouble locating the right item, our team is here to help!

Category Electric Motors
Subcategory Permanent Magnet DC Motors
Approximate Weight (lbs) 47
Degree of Protection IP54
Enclosure Type TEFC
FL Efficiency (%) 80.0
Frame Size 145TC
Full Load Amps 7.7
Horsepower 1.5
Insulation Class Class F
Mounting Type C-Face with Removable Base
RPM 1800
Service Factor 1.0
Voltage 180
