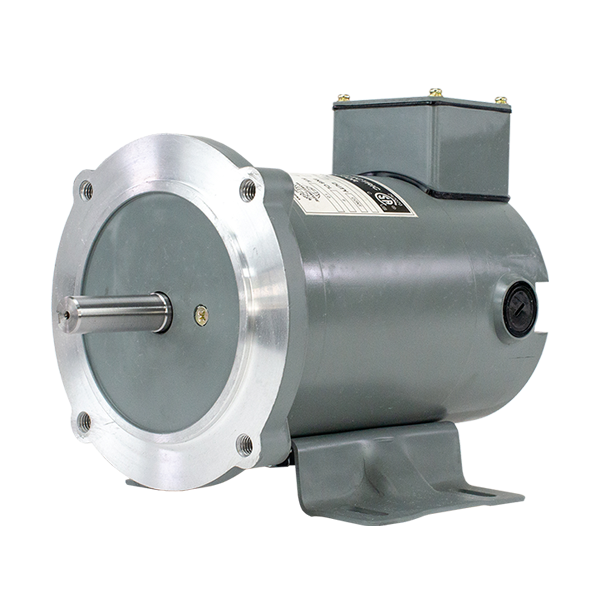

Permanent Magnet DC Motor, 0.5 HP, 1800 RPM, 90V, 56C Frame, C-Face with Removable Base
Roll over image to zoom in Click on image to zoom
Permanent Magnet DC Motor, 0.5 HP, 1800 RPM, 90V, 56C Frame, C-Face with Removable Base
WorldWide Electric Motors

Permanent Magnet DC Motor, 0.5 HP, 1800 RPM, 90V, 56C Frame, C-Face With Removable Base 90V 5 HP

Worldwide ElectricSKU: WPMDC12-18-90V-56CB
Price:
$371.47

Delivery date to be confirmed on Sales Order

or Call for most up to date lead times. (781) 281-8905

Description

WorldWide Electric Replacement Part — Component

The WorldWide Electric WPMDC12-18-90V-56CB for WorldWide Electric pump systems.

Part Specifications
Part Number WPMDC12-18-90V-56CB
Brand WorldWide Electric
⚠ Confirm Compatibility Before OrderingAlways verify this part is correct for your specific pump model. Contact PumpStop with your pump model number and we'll confirm.
Need help confirming compatibility or finding the right part? Contact PumpStop — chat or call (781) 281-8905.
Category
Electric Motors
Subcategory
Permanent Magnet DC Motors
Approximate Weight (lbs)
22
Degree of Protection
IP54
Enclosure Type
TENV
FL Efficiency (%)
82.0
Frame Size
56C
Full Load Amps
5.2
Horsepower
0.5
Insulation Class
Class F
Mounting Type
C-Face with Removable Base
RPM
1800
Service Factor
1.0
Voltage
90
