Permanent Magnet DC Motor, 0.33 HP, 1800 RPM, 12V, 56C Frame, C-Face With Removable Base 12V 33 HP

WorldWide ElectricSKU: WPMDC13-18-12V-56CB

Price:
Sale price$346.52
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

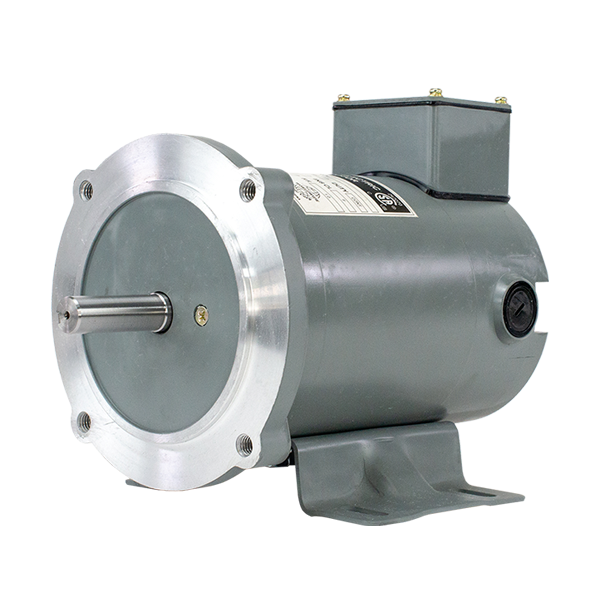

Permanent Magnet DC Motor - 0.33 HP, 1800 RPM, 12V

Introducing the WorldWide Electric Permanent Magnet DC Motor, a reliable and efficient solution for your electric motor needs. This 0.33 HP motor operates at 1800 RPM and is designed for 12V applications. With a robust 56C frame and a C-face removable base, this motor is perfect for various mounting configurations.

Constructed from durable rolled steel, this TENV (Totally Enclosed Non-Ventilated) motor ensures longevity and performance in demanding environments. The permanent magnet design provides excellent torque and efficiency, making it an ideal choice for both industrial and commercial applications.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches this motor, ensuring a perfect fit for your needs. Don’t hesitate to reach out if you need help locating the right item!

Key Features:

  • Power: 0.33 HP
  • Speed: 1800 RPM
  • Voltage: 12V
  • Frame: 56C
  • Type: Permanent Magnet DC Motor
  • Construction: Rolled Steel, TENV
  • Mounting: C-Face with Removable Base

Upgrade your equipment with the WorldWide Electric DC Motor today!

Category Electric Motors
Subcategory Permanent Magnet DC Motors
Approximate Weight (lbs) 19
Degree of Protection IP54
Enclosure Type TENV
FL Efficiency (%) 78.0
Frame Size 56C
Full Load Amps 26.4
Horsepower 0.33
Insulation Class Class F
Mounting Type C-Face with Removable Base
RPM 1800
Service Factor 1.0
Voltage 12

Motor Curves
