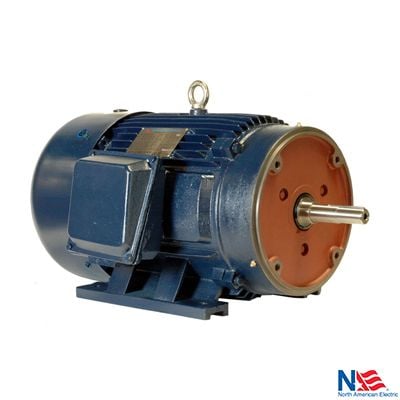

Image shown may not be actual product
PE 20 HP 3600 RPM 3 PH 60 Hz 230/460V 1.15 SF 256JM FRAME, TEFC, CLOSE COUPLED PUMP MOTOR, CAST IRON, PREMIUM EFFICIENCY, C-FACE RIGID MOUNTING
Roll over image to zoom in Click on image to zoom
PE 20 HP 3600 RPM 3 PH 60 Hz 230/460V 1.15 SF 256JM FRAME, TEFC, CLOSE COUPLED PUMP MOTOR, CAST IRON, PREMIUM EFFICIENCY, C-FACE RIGID MOUNTING
WorldWide Electric Motors

Pe 20 HP 3600 RPM 3 Phase 60 HZ 230/460V 1.15 Sf 256JM Frame, TEFC, Close Coupled Pump Motor, Cast Iron, Premium Efficiency, C-Face Rigid Mounting

This item ships free!
Worldwide ElectricSKU: PE256JM-20-2
Price:
$1,455.36

Delivery date to be confirmed on Sales Order

or Call for most up to date lead times. (781) 281-8905

Description

WorldWide Electric Replacement Part — Component
Cast Iron

The WorldWide Electric PE256JM-20-2 (Cast Iron) for WorldWide Electric pump systems.

Part Specifications
Part Number PE256JM-20-2
Material Cast Iron
Brand WorldWide Electric
⚠ Confirm Compatibility Before OrderingAlways verify this part is correct for your specific pump model. Contact PumpStop with your pump model number and we'll confirm.
Need help confirming compatibility or finding the right part? Contact PumpStop — chat or call (781) 281-8905.
Supplier Part Number
PE256JM-20-2
Degree of Protection
IP55
Enclosure Type
TEFC
Frame Size
256JM
Frequency
60 HZ
Horsepower
20
Insulation Class
Class F
Mounting Type
Rigid Base
Phase
Three-Phase
RPM
3600
Service Factor
1.15
Voltage
230/460
