Pe 10 HP 3600 RPM 3 Phase 60 HZ 230/460V 1.15 Sf 215JP Frame, TEFC, Close Coupled Pump Motor, Cast Iron, Premium Efficiency, C-Face Rigid Mounting

This item ships free!
WorldWide ElectricSKU: PE215JP-10-2

Price:
Sale price$812.35
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

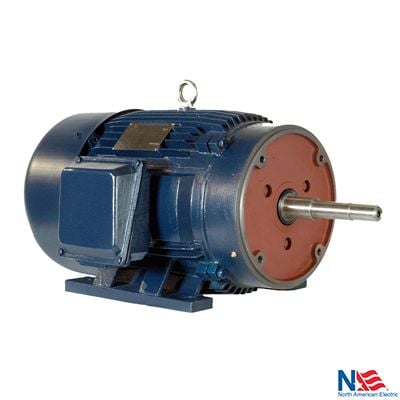

WorldWide Electric 10 HP Close-Coupled Pump Motor

Introducing the WorldWide Electric 10 HP 3600 RPM 3 Phase Close-Coupled Pump Motor, designed for premium efficiency and reliable performance in various applications. This robust motor operates at 60 Hz with a voltage rating of 230/460V and features a service factor of 1.15, ensuring optimal operation under demanding conditions.

Constructed with a durable cast iron frame and a TEFC (Totally Enclosed Fan Cooled) design, this motor is built to withstand harsh environments while providing exceptional cooling and protection. The C-Face rigid mounting allows for easy installation and compatibility with a wide range of pump systems.

As a trusted source for replacement pumps and parts, Pump-Stop.com is your go-to destination for high-quality electric motors. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure a perfect fit.

Upgrade your pumping system with the WorldWide Electric PE215JP-10-2 motor and experience the difference in performance and efficiency.

Supplier Part Number PE215JP-10-2
Degree of Protection IP55
Enclosure Type TEFC
Frame Size 215JP
Frequency 60 HZ
Horsepower 10
Insulation Class Class F
Mounting Type Rigid Base
Phase Three-Phase
RPM 3600
Service Factor 1.15
Voltage 230/460

Motor Curves
