Pe 1 HP 1800 RPM 3 Phase 60 HZ 230/460V 1.15 Sf 143JM Frame, TEFC, Close Coupled Pump Motor, Cast Iron, Premium Efficiency, C-Face Rigid Mounting

This item ships free!
WorldWide ElectricSKU: PE143JM-1-4

Price:
Sale price$262.31
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

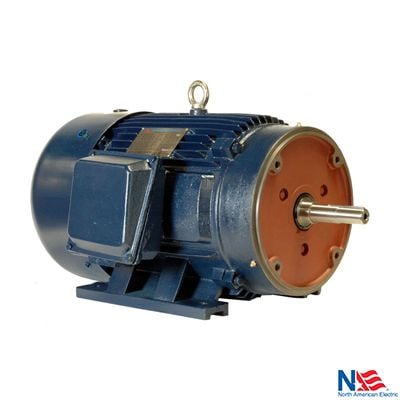

WorldWide Electric 1 HP Close-Coupled Pump Motor

Introducing the WorldWide Electric 1 HP 1800 RPM 3 Phase Close-Coupled Pump Motor, designed for premium efficiency and reliable performance in various applications. This motor operates at 60 Hz with a voltage rating of 230/460V and features a 1.15 service factor, ensuring optimal operation even under demanding conditions.

Constructed with a durable cast iron frame and a TEFC (Totally Enclosed Fan Cooled) design, this motor is built to withstand harsh environments while providing exceptional cooling and protection. The 143JM frame size and C-face rigid mounting make installation straightforward and secure, making it an ideal choice for your pumping needs.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches, ensuring you get the perfect fit for your system.

Upgrade your pumping solutions with the WorldWide Electric 1 HP Close-Coupled Pump Motor, where efficiency meets reliability.

Supplier Part Number PE143JM-1-4
Degree of Protection IP55
Enclosure Type TEFC
Frame Size 143JM
Frequency 60 HZ
Horsepower 1
Insulation Class Class F
Mounting Type Rigid Base
Phase Three-Phase
RPM 1800
Service Factor 1.15
Voltage 230/460
