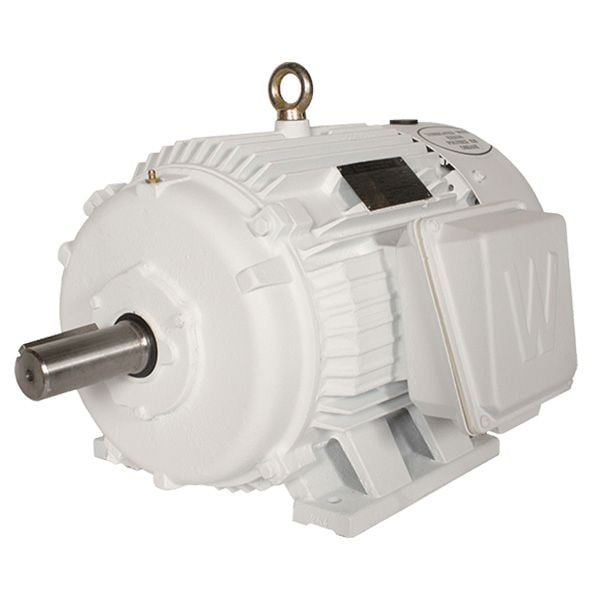

Oil Well Pump Motor, 3 HP, 1200 RPM, 230/460/796V, 213T Frame, Rigid Base - OW3-12-213T 796V 60HZ Three Phase 3 HP Cast Iron

This item ships free!
WorldWide ElectricSKU: OW3-12-213T

Price:
Sale price$785.52
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

WorldWide Electric Oil Well Pump Motor - 3 HP

Introducing the WorldWide Electric Oil Well Pump Motor, a robust and reliable solution for your oil well pumping needs. This motor features a powerful 3 HP output and operates at 1200 RPM, making it ideal for efficient performance in demanding applications.

Specifications:

  • Power: 3 HP
  • Speed: 1200 RPM
  • Voltage: 230/460/796V
  • Phase: Three Phase
  • Frequency: 60 Hz
  • Frame: 213T
  • Design: TEFC (Totally Enclosed Fan Cooled)
  • Efficiency: Standard Efficiency
  • Mounting: Rigid Base
  • Terminal Box Location: F2

Constructed from durable cast iron, this motor is designed to withstand the rigors of oil well operations while providing reliable performance. The 1.15 service factor ensures that it can handle varying loads with ease.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches this motor, which is OW3-12-213T, to ensure compatibility.

Upgrade your oil well pumping system with the WorldWide Electric Oil Well Pump Motor today!

Supplier Part Number 8501.52.4000
Category Electric Motors
Subcategory Oil Well Pump Motors
Degree of Protection IP55
Enclosure Type TEFC
FL Efficiency (%) 84.9
Frame Size 213T
Frequency 60/50 HZ*
Full Load Amps 4
Horsepower 3
Insulation Class Class F
Mounting Type Rigid Base
Phase Three-Phase
RPM 1200
Service Factor 1.15
Voltage 230/460/796

Motor Curves
