Oil Well Pump Motor, 20 HP, 1200 RPM, 230/460/796V, 286T Frame, Rigid Base - OW20-12-286T 796V 60HZ Three Phase 20 HP Cast Iron

WorldWide ElectricSKU: OW20-12-286T

Price:
Sale price$2,445.28
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

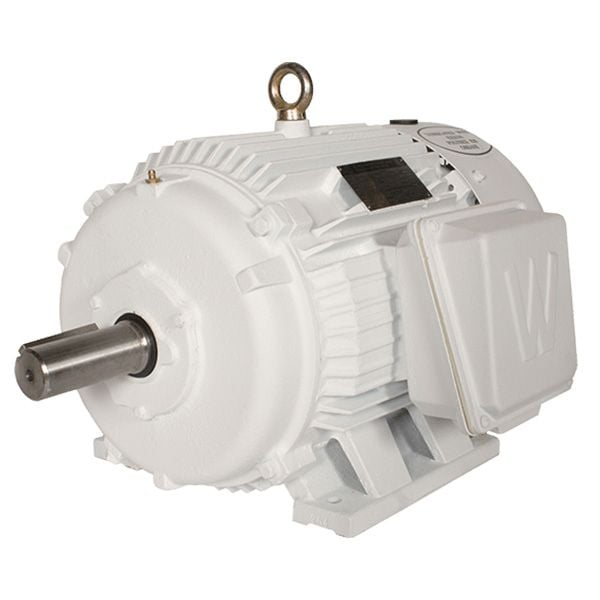

WorldWide Electric Oil Well Pump Motor - 20 HP

Introducing the WorldWide Electric Oil Well Pump Motor, a robust and reliable solution for your oil well pumping needs. This high-performance motor features a power rating of 20 HP and operates at 1200 RPM, making it ideal for demanding applications.

Designed for efficiency and durability, this motor is constructed from cast iron and features a TEFC (Totally Enclosed Fan Cooled) design, ensuring optimal performance in various environments. With a voltage range of 230/460/796V and a 286T frame, this motor is built to handle the rigors of oil well operations.

Key specifications include:

  • Power: 20 HP
  • Speed: 1200 RPM
  • Phase: 3
  • Frequency: 60 Hz
  • Efficiency: Standard
  • Service Factor: 1.15 SF
  • Mounting: Rigid
  • Terminal Box Location: F2

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches this motor, which is OW20-12-286T. If you encounter any difficulties, our team is here to help you find the perfect solution.

Supplier Part Number 8501.52.4000
Category Electric Motors
Subcategory Oil Well Pump Motors
Approximate Weight (lbs) 451
Degree of Protection IP55
Enclosure Type TEFC
FL Efficiency (%) 89.9
Frame Size 286T
Frequency 60/50 HZ*
Full Load Amps 25.5
Horsepower 20
Insulation Class Class F
Mounting Type Rigid Base
Phase Three-Phase
RPM 1200
Service Factor 1.15
Voltage 230/460/796

Motor Curves
