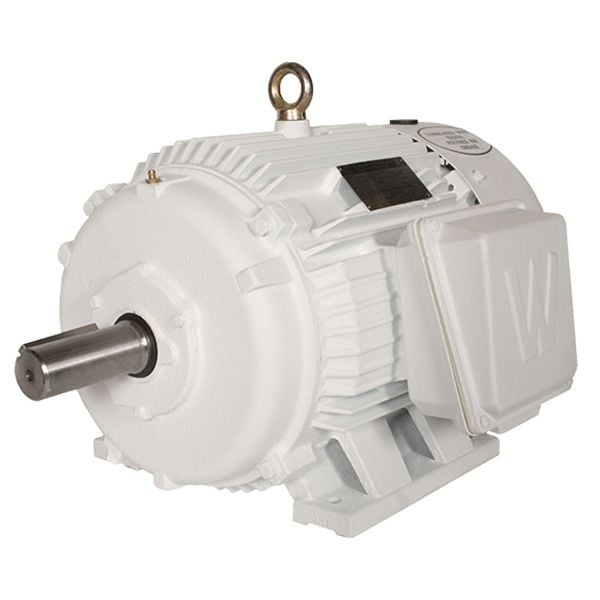

Oil Well Pump Motor, 125 HP, 1200 RPM, 230/460/796V, 447T Frame, Rigid Base - OW125-12-447T 796V 60HZ Three Phase 125 HP Cast Iron

WorldWide ElectricSKU: OW125-12-447T

Price:
Sale price$9,768.45
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

WorldWide Electric Oil Well Pump Motor - 125 HP

Introducing the OW125-12-447T Oil Well Pump Motor from WorldWide Electric, designed for optimal performance in demanding oil extraction applications. This robust motor delivers 125 HP of power at 1200 RPM, ensuring efficient operation with a standard efficiency rating.

Key features include:

  • Voltage Options: 230/460/796V
  • Frame Size: 447T
  • Type: TEFC (Totally Enclosed Fan Cooled)
  • Design: Design D for enhanced reliability
  • Mounting: Rigid base for stability
  • Terminal Box Location: F2 for easy access

This oil well pump motor is built with a durable cast iron housing, ensuring longevity and resistance to harsh environments. It is ideal for various oil well applications, providing the power and reliability you need.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility. If you’re having trouble locating the right item, our team is here to help!

Supplier Part Number 8501.53.4080
Category Electric Motors
Subcategory Oil Well Pump Motors
Approximate Weight (lbs) 1766
Degree of Protection IP55
Enclosure Type TEFC
FL Efficiency (%) 93.5
Frame Size 447T
Frequency 60/50 HZ*
Full Load Amps 138
Horsepower 125
Insulation Class Class F
Mounting Type Rigid Base
Phase Three-Phase
RPM 1200
Service Factor 1.15
Voltage 230/460/796

Motor Curves
