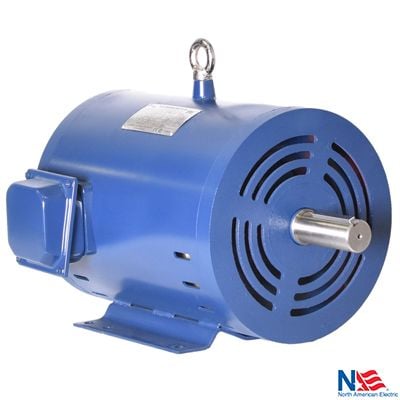

ODP 3 HP 1800 RPM 3 PH 60 Hz 1.15 SF 182T FRAME, ODP, GENERAL PURPOSE MOTOR, ROLLED STEEL, PREMIUM EFFICIENCY, RIGID MOUNTING
Roll over image to zoom in Click on image to zoom
ODP 3 HP 1800 RPM 3 PH 60 Hz 1.15 SF 182T FRAME, ODP, GENERAL PURPOSE MOTOR, ROLLED STEEL, PREMIUM EFFICIENCY, RIGID MOUNTING
WorldWide Electric Motors

ODP 3 HP 1800 RPM 3 Phase 60 HZ 1.15 Sf 182T Frame, ODP, General Purpose Motor, Rolled Steel, Premium Efficiency, Rigid Mounting

This item ships free!
Worldwide ElectricSKU: PE182T-3-4-ODP
Price:
$396.79

Delivery date to be confirmed on Sales Order

or Call for most up to date lead times. (781) 281-8905

Description

WorldWide Electric Replacement Part — Component
Steel

The WorldWide Electric PE182T-3-4-ODP (Steel) for WorldWide Electric pump systems.

Part Specifications
Part Number PE182T-3-4-ODP
Material Steel
Brand WorldWide Electric
⚠ Confirm Compatibility Before OrderingAlways verify this part is correct for your specific pump model. Contact PumpStop with your pump model number and we'll confirm.
Need help confirming compatibility or finding the right part? Contact PumpStop — chat or call (781) 281-8905.
Supplier Part Number
PE182T-3-4-ODP
Degree of Protection
IP23
Enclosure Type
ODP
Frame Size
182T
Frequency
60 HZ
Horsepower
3
Insulation Class
Class F
Mounting Type
Rigid Base
Phase
Three-Phase
RPM
1800
Service Factor
1.15
Voltage
208-230/460
