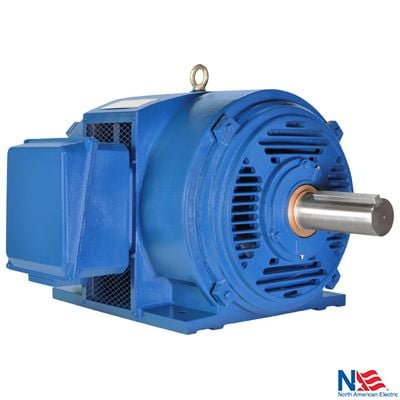

ODP 25 HP 1800 RPM 3 Phase 60 HZ 1.15 Sf 284T Frame, ODP, General Purpose Motor, Cast Iron, Premium Efficiency, Rigid Mounting

This item ships free!
WorldWide ElectricSKU: PE284T-25-4-ODP

Price:
Sale price$1,531.24
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

WorldWide Electric 25 HP General Purpose Motor

Introducing the WorldWide Electric 25 HP 1800 RPM 3 Phase Motor, designed for optimal performance in a variety of applications. This premium efficiency motor operates at 60 Hz and features a robust 284T frame, ensuring durability and reliability in demanding environments. The Open Drip Proof (ODP) design allows for effective cooling while protecting the internal components from moisture and debris.

Constructed from high-quality cast iron, this motor is built to withstand the rigors of industrial use, making it an ideal choice for general purpose applications. With a service factor of 1.15, it provides extra power when needed, ensuring consistent operation even under heavy loads.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches this motor, which is PE284T-25-4-ODP. If you encounter any difficulties, our team is here to help you find the perfect solution.

Upgrade your equipment with the reliability and efficiency of the WorldWide Electric 25 HP Motor today!

Supplier Part Number PE284T-25-4-ODP
Degree of Protection IP23
Enclosure Type ODP
Frame Size 284T
Frequency 60 HZ
Horsepower 25
Insulation Class Class F
Mounting Type Rigid Base
Phase Three-Phase
RPM 1800
Service Factor 1.15
Voltage 208-230/460

Motor Curves
