Grundfos 95702781 - OCD-162-10-N/H

GRUNDFOSSKU: 95702781

Price:
Sale price$3,033.33
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

OCD-162-10-N/H Compact pre-mounted generation and dosing system for chlorine dioxide according to sodium chlorite / hydrochloric acid method with chemicals-saving and corrosion-protective 1: 1 mixture ratio. The system is equipped with microprocessor control and integrated measuring amplifier. Therefore the chlorine dioxide solution can be optionally dosed proportional to flow or measurement controlled. Input comes from a contact water meter or a continuous signal from a water meter and a chlorine dioxide measuring cell. The compact design of the system enables easy use and safe, reliable operation. Front installation of all system components makes maintenance fast and less expensive. Only 7. 5 weight-% sodium chlorite solution acc. to DIN 19617 and 9 weight-% hydrochloric acid acc. to DIN 19610 shall be used. A corrosion resistant injection point has to be used to reduce the risk of corrosion in the installation system. Alternatively the optional bypass mixing module from Grundfos Alldos is available.

EAN 5700838798111
Capacity 10 g/h
Dosing pump NO
Enclosure class (IEC 34-5) IP65
Mains frequency 50 / 60 Hz
Material Pricing Group 91
Max. capacity 1 10 g/h
Net weight 66.2 lb
Pump NO
Rated voltage x 115 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price

Motor Curves

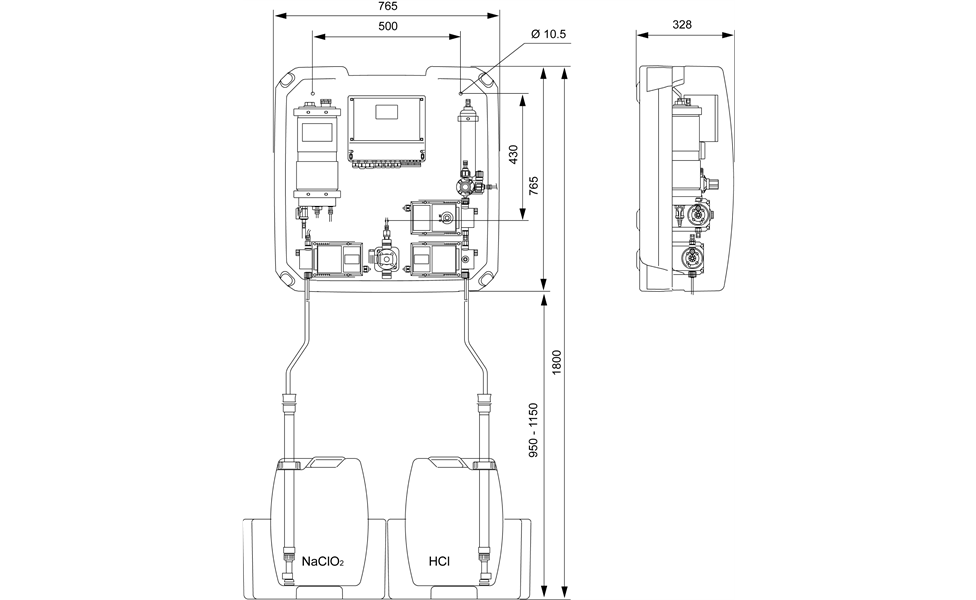

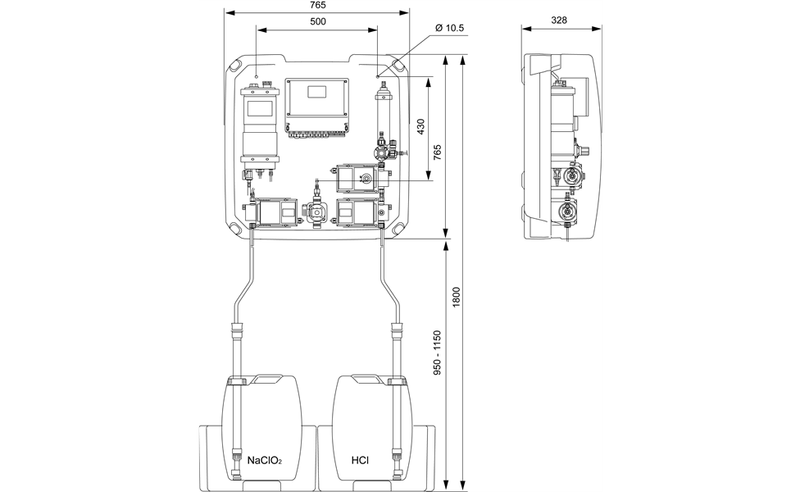

Dimensional Drawing
