Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
98317052 · End-Suction Long-Coupled Pump

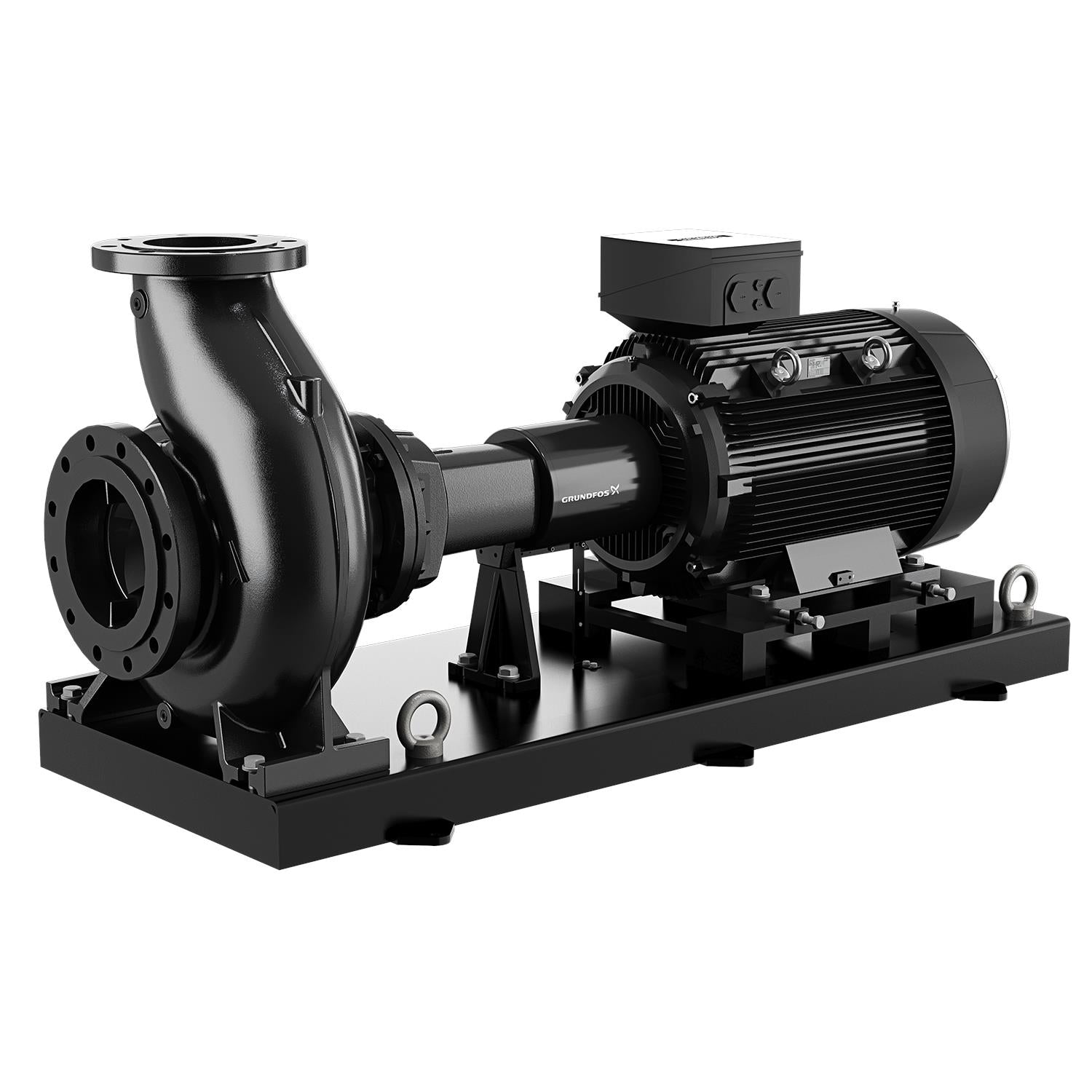

The Grundfos 98317052 (NK 100-315/312 AA1F2AESBAQEQW3) is a End-Suction Long-Coupled Pump. Standard long-coupled end-suction pump compliant with EN733.
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
Built and tested to IEC and NEMA standards
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product
Genuine Grundfos Part
OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.
Full Traceability
Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.
Authorized Source
PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.
Confirm Compatibility
Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.
Technical Support Available
PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.
Contact for Availability
Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.
Model Information — 98317052
Series: NK
Technical Specifications
| Model Number | 98317052 |
| Product Series | NK |
| Series Description | End-Suction Long-Coupled Pump |
Important Notices
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation. |
| Temperature limits | Do not exceed max fluid temperature per nameplate. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. NK pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
Documentation
✓ Installation and Operating Manual (IOM) — NK Series
✓ Product Data Sheet — 98317052
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
- EAN
- 5711492934142
- Actual impeller diameter
- 12.3 in
- Bearing insulation type N-end
- STEEL BEARING
- Built-in motor protection
- PTC
- Code for rubber
- E
- Code for shaft seal
- BAQE
- Connect code
- F
- Connection
- PN 16
- Curve tolerance
- ISO9906:2012 3B
- Density
- 62.29 lb/ft³
- Diameter
- 1.26 in
- Enclosure class (IEC 34-5)
- IP55
- Frequency converter
- NONE
- Gross weight
- 994.0 lb
- Housing
- Cast iron
- IE efficiency
- IE3 93%
- IE Efficiency class
- IE3
- Impeller
- Cast iron
- Insulation class (IEC 85)
- F
- Internal pump house coating
- CED
- Language on pump nameplate
- GB
- Liquid temperature range
- 32 .. 248 °F
- Mains frequency
- 50 Hz
- Material code
- A
- Maximum ambient temperature
- 131 °F
- Maximum operating pressure
- 16 bar
- Minimum efficiency index, MEI ≥
- 0.7
- Motor efficiency at 1/2 load
- 93.6-93.6 %
- Motor efficiency at 3/4 load
- 93.6-93.6 %
- Motor efficiency at full load 1
- 93-93 %
- Motor type
- SIEMENS
- Net weight
- 935.0 lb
- Number of poles
- 4
- Pipe connection standard
- EN 1092-2
- Power factor 1
- 0.83
- Pressure rating for connection
- PN 16
- Pressure sensor
- N
- Pump housing
- Cast iron
- Pump speed on which pump data are based
- 1470 rpm
- Pump version
- A1
- Pump with motor (Yes/No)
- Y
- Pumped liquid
- Water
- Rated current
- 41/24 A
- Rated flow
- 788 US gpm
- Rated head
- 100.8 ft
- Rated power - P2
- 22 kW
- Rated speed
- 1470 rpm
- Rated voltage
- 3 x 380-420D/660-725Y V
- Real Time
- Delivery date to be confirmed on Sales Order Update with real time availability and Net price
- Rubber
- E
- Selected liquid temperature
- 68 °F
- Shaft
- Stainless steel
- Shaft diameter
- 1.26 in
- Size of inlet connection
- DN 125
- Size of outlet connection
- DN 100
- Standard
- EN 1092-2
- Starting current
- 680-680 %
- Type
- SIEMENS
- Type of inlet connection
- DIN
- Type of outlet connection
- DIN
- Version
- A1
