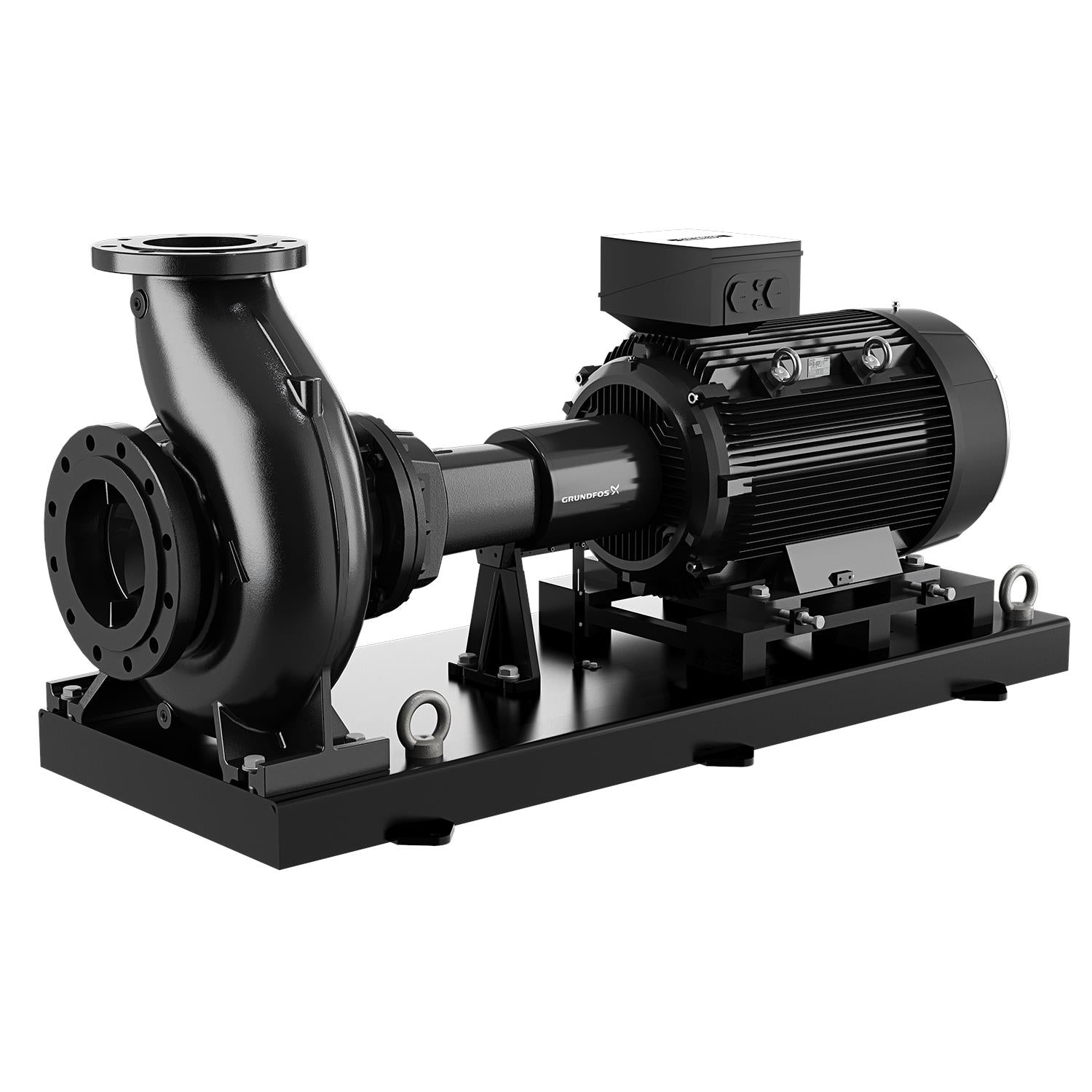

98475954 · End-Suction Long-Coupled Pump
The Grundfos 98475954 (NK 100-200/201 AA2F2AESBAQEWX2) is a End-Suction Long-Coupled Pump. Standard long-coupled end-suction pump compliant with EN733. Nominal performance: 1680US gpm at 216.5ft. Rated 400/690V, 3.0-Phase, 60 Hz.
Power
121HP
Voltage
400/690V
Phase
3.0-Phase
Max Flow
1680US gpm
Max Head
216.5ft
Max Pressure
232.06psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Premium Efficiency
IE4 motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product
Genuine Grundfos Part
OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.
Full Traceability
Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.
Authorized Source
PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.
Confirm Compatibility
Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.
Technical Support Available
PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.
Contact for Availability
Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.
Model Information — 98475954
Series: NK
Impeller Material: Cast iron
Housing Material: Cast iron
Shaft Seal: BAQE
Flange Rating: PN 16
Technical Specifications
| Model Number | 98475954 |
| Product Series | NK |
| Series Description | End-Suction Long-Coupled Pump |
| Power | 121HP |
| Voltage | 400/690V |
| Phase | 3.0-Phase |
| Frequency | 60 Hz |
| Motor Speed | 3582rpm |
| Full Load Current | 151/88A |
| Motor Type | INNOMOTICS |
| Motor Protection | PTC |
| Motor Efficiency Class | IE4 |
| Motor Efficiency | IE4 95,4% |
| Insulation Class | F |
| Protection Class (IP) | TEFC |
| Nominal Flow | 1680US gpm |
| Nominal Head | 216.5ft |
| Max Operating Pressure | 232.06psi |
| Max Fluid Temperature | 248°F |
| Max Ambient Temperature | 131°F |
| Inlet Connection | DN 125 |
| Outlet Connection | DN 100 |
| Pipe Pressure Rating | PN 16 |
| Pipe Standard | EN 1092-2 |
| Impeller Material | Cast iron |
| Housing Material | Cast iron |
| Shaft Seal | BAQE |
| Impeller Nominal Diameter | 7.87in |
Important Notices
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation: 400/690V, 3.0-Phase, 60 Hz. |
| Temperature limits | Do not exceed max fluid temperature 248°F or max ambient temperature 131°F. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. NK pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
Documentation
✓ Installation and Operating Manual (IOM) — NK Series
✓ Product Data Sheet — 98475954
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
