Grundfos 92613744 - NBSE 040-070/6.85 ASASG7SAESDQQELCA | End Suction | Single Stage | Centrifugal

GRUNDFOSSKU: 92613744

Price:
Sale price$17,964.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

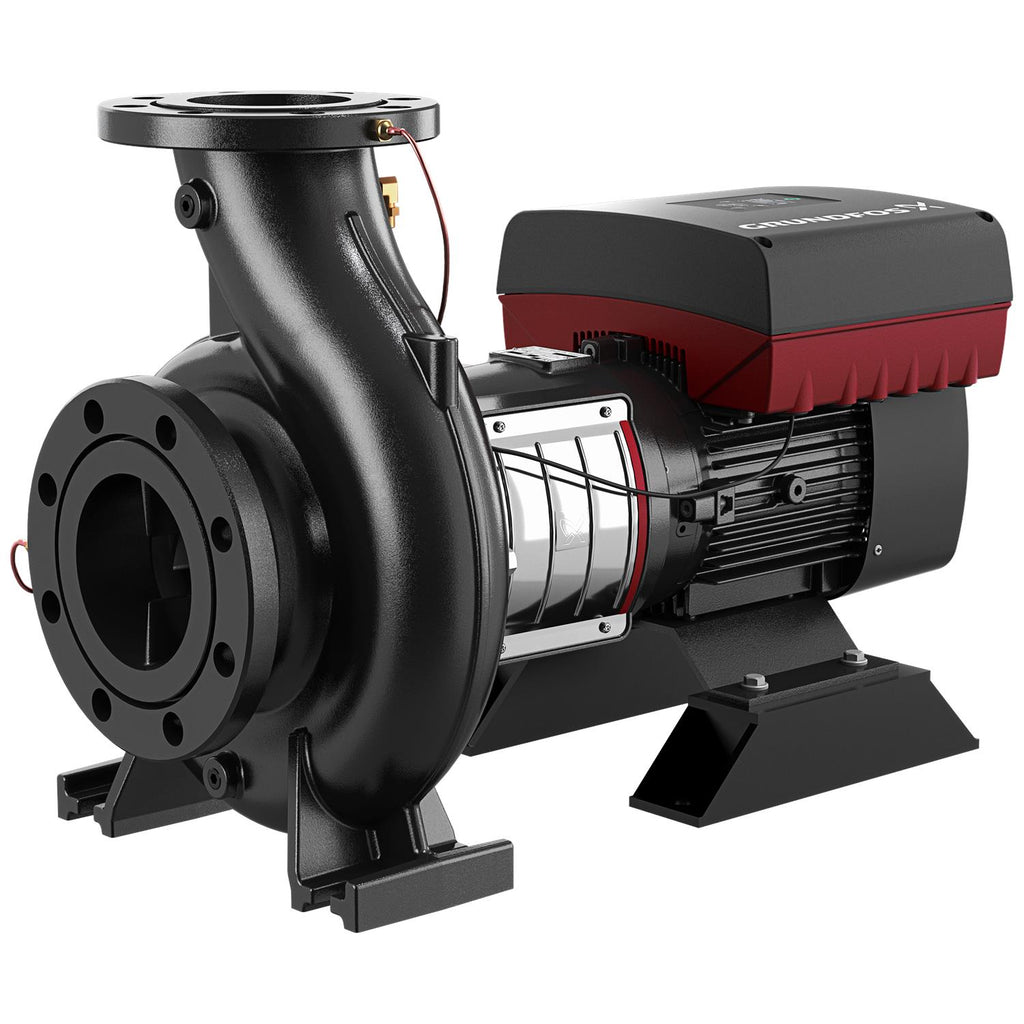

Grundfos 92613744 - NBSE 040-070/6.85 ASASG7SAESDQQELCA

The Grundfos 92613744 - NBSE 040-070/6.85 ASASG7SAESDQQELCA is a high-performance end suction centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this single-stage pump is engineered for efficiency and reliability, making it an ideal choice for your pumping needs.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, feel free to reach out to our knowledgeable team at (781) 281-8905.

Before making a purchase, we recommend checking your current pump for the exact part number or SKU that matches the 92613744. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

Explore our extensive range of Grundfos Centrifugal Pumps, including single and multi-stage options, and experience the quality and performance that Grundfos is known for.

EAN 5715117082867
Applications Pressure boosting
Actual impeller diameter 6.85 in
Bearing insulation type N-end STEEL BEARING
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal DQQE
Connect code G
Connection Class 300
Control panel HMI300 - Advanced
Curve tolerance 2B HI 14.6:2016
Density 62.29 lb/ft³
Diameter 6.85 in
DOE Pump Energy Index CL 0
DOE Pump Energy Index VL 0.42
Enclosure class (IEC 34-5) IP55
Function Module FM300 - Advanced
Gross weight 302.0 lb
Housing DUCTILE IRON
IE Efficiency class IE5
Impeller Stainless steel
Insulation class (IEC 85) F
Internal pump house coating No coating
Liquid temperature range -4 .. 248 °F
Mains frequency 60 Hz
Material code SA
Material Pricing Group 5W
Maximum ambient temperature 122 °F
Maximum operating pressure 25 bar
Motor efficiency at full load 1 0.931
Motor standard NEMA
Motor type 132G
Mounting options design code B
Net weight 301.0 lb
Number of poles 4
Power factor 1 0.91-0.89
Pressure rating for connection Class 300
Product family NBSE
Pump housing DUCTILE IRON
Pump speed on which pump data are based 2200 rpm
Pump version AS
Pumped liquid Water
Rated current 9.10-8.70 A
Rated flow 585 US gpm
Rated head 42.28 ft
Rated power - P2 5.5 kW
Rated speed 180-2200 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Shaft Stainless steel
Size of inlet connection 5 inch
Size of outlet connection 4 inch
Standard NEMA
Support block (Yes/No) Y
Type 132G
Type of connection ANSI
Version AS

Motor Curves

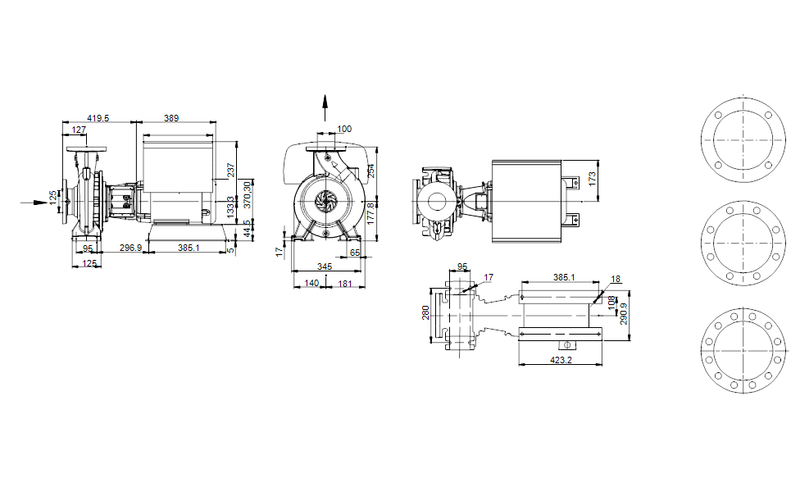

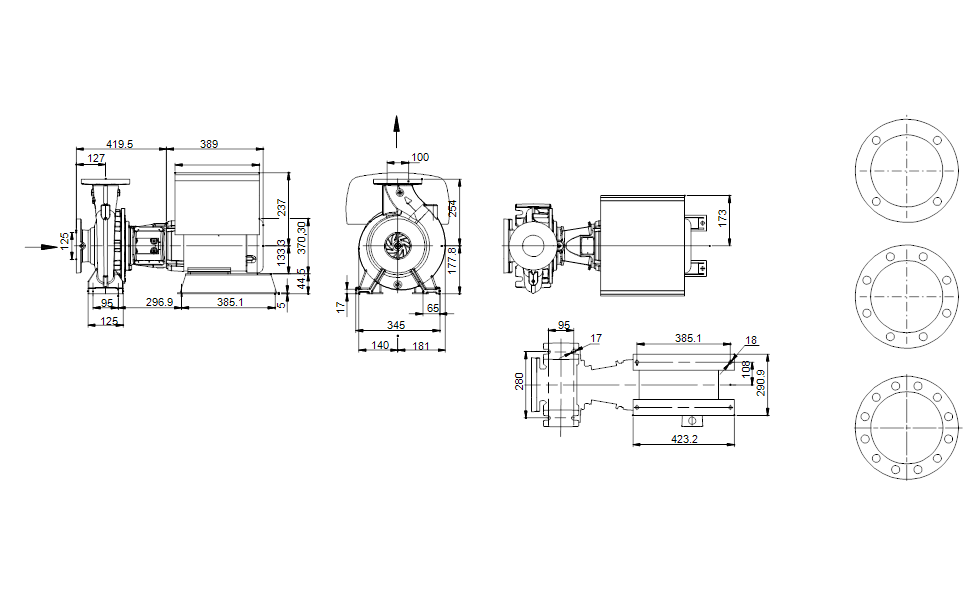

Dimensional Drawing

DWiring Diagram
