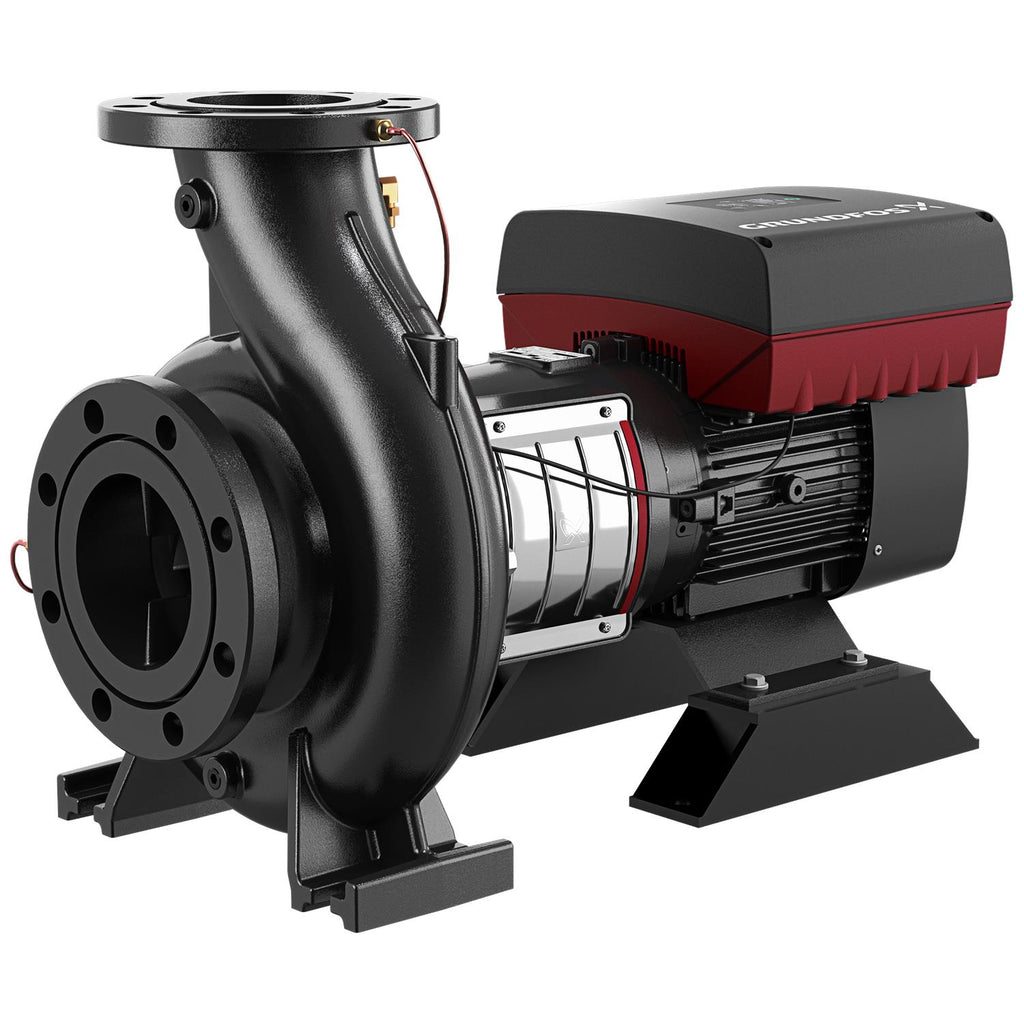

Grundfos 92613772 - NBSE 025-070/4.57 ASASG7SAESDQQELCB | End Suction | Single Stage | Centrifugal

GRUNDFOSSKU: 92613772

Price:
Sale price$16,636.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92613772 - NBSE 025-070/4.57 ASASG7SAESDQQELCB is a high-performance end suction centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned brand Grundfos, this single-stage pump is engineered for efficiency and reliability, making it an ideal choice for those seeking durable pumping solutions.

This model features a robust design that ensures optimal performance in demanding environments. With its advanced technology, the Grundfos NBSE series is known for its energy efficiency and low maintenance requirements, providing long-term value for your operations.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help you every step of the way.

EAN 5715117083314
Applications Pressure boosting
Actual impeller diameter 4.57 in
Bearing insulation type N-end STEEL BEARING
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal DQQE
Connect code G
Connection Class 300
Control panel HMI300 - Advanced
Curve tolerance 2B HI 14.6:2016
Density 62.29 lb/ft³
Diameter 4.57 in
DOE Pump Energy Index CL 0
DOE Pump Energy Index VL 0.47
Enclosure class (IEC 34-5) IP55
Function Module FM300 - Advanced
Gross weight 248.0 lb
Housing DUCTILE IRON
IE Efficiency class IE5
Impeller Stainless steel
Insulation class (IEC 85) F
Internal pump house coating No coating
Liquid temperature range -4 .. 248 °F
Mains frequency 60 Hz
Material code SA
Material Pricing Group 5W
Maximum ambient temperature 122 °F
Maximum operating pressure 25 bar
Motor efficiency at full load 1 0.924
Motor standard NEMA
Motor type 132E
Mounting options design code C
Net weight 246.0 lb
Number of poles 2
Power factor 1 0.91-0.89
Pressure rating for connection Class 300
Product family NBSE
Pump housing DUCTILE IRON
Pump speed on which pump data are based 4000 rpm
Pump version AS
Pumped liquid Water
Rated current 9.10-8.50 A
Rated flow 282 US gpm
Rated head 71.09 ft
Rated power - P2 5.5 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Shaft Stainless steel
Size of inlet connection 3 inch
Size of outlet connection 2.5 inch
Standard NEMA
Support block (Yes/No) Y
Type 132E
Type of connection ANSI
Version AS

Motor Curves

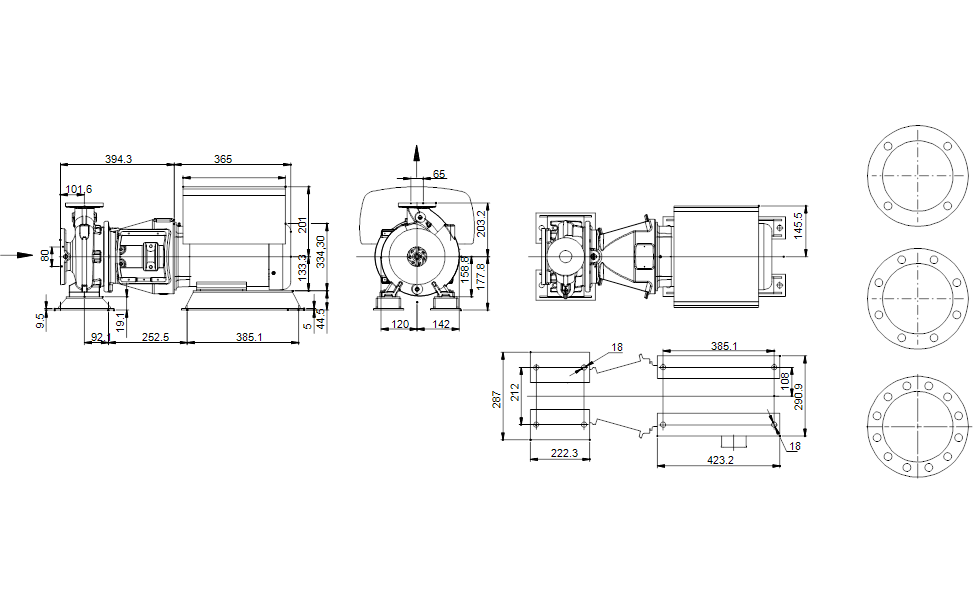

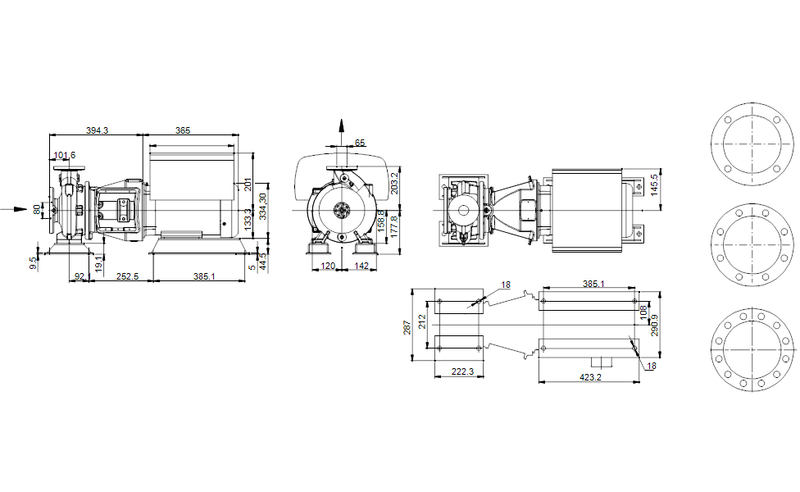

Dimensional Drawing

DWiring Diagram
