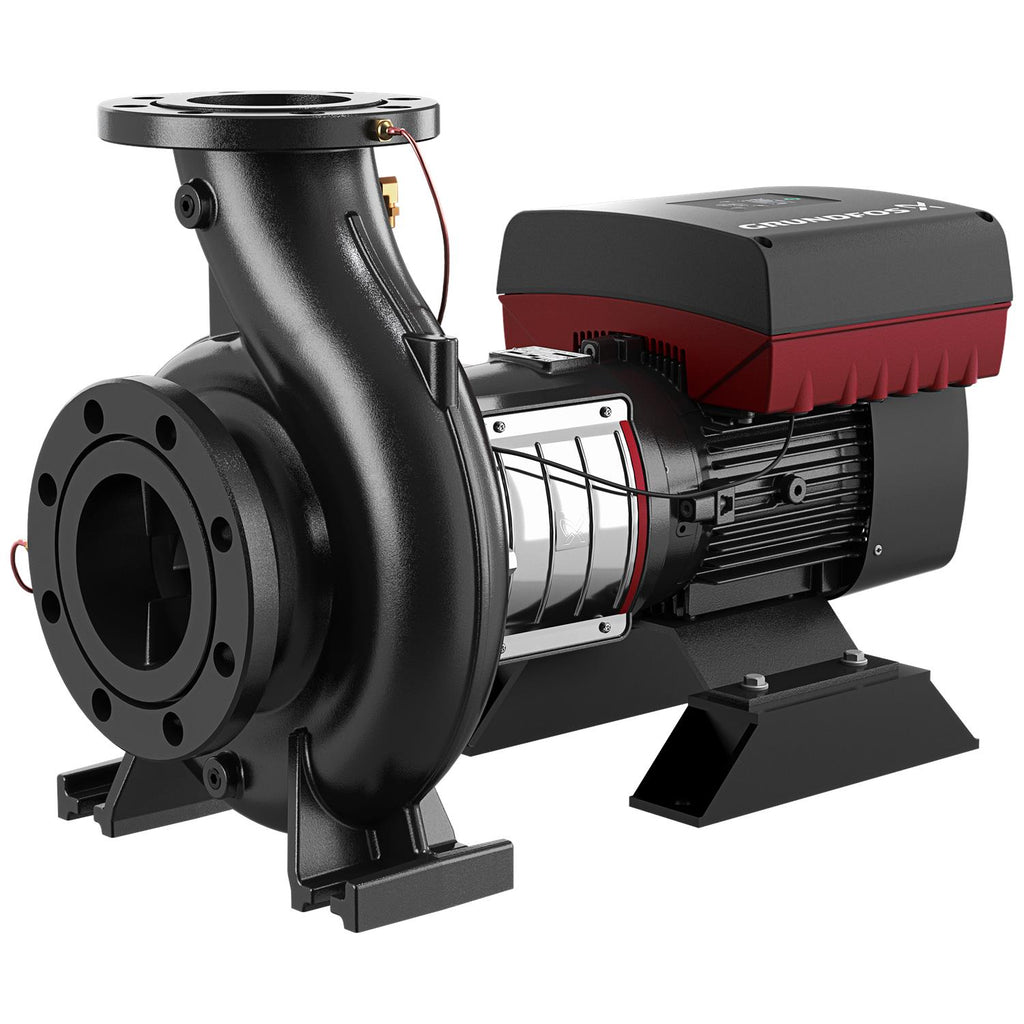

Grundfos 92613586 - NBSE 015-070/6.30 AASG6S2VSBQQVNCB | SelfPriming | Centrifugal | Horizontal

GRUNDFOSSKU: 92613586

Price:
Sale price$14,731.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

NBSE 015-070/6. 93 | The pumps are non-self-priming, single-stage, centrifugal volute pumps with axial inlet port, radial outlet port and horizontal shaft. The pump has a back pull-out design enabling removal of the motor, motor stool, cover and impeller without disturbing the pump housing or pipework. All pumps are according to ISO 5199 standards, adjusted for American dimensions on pump and its flanges. Inlet and outlet flanges are according to ASME 16. 1/16. 42. Dimensions and rated performance are according to 175/363 PSI (12/25 bar). The mechanical shaft seal has dimensions according to EN 12756. Motors are with main dimensions to NEMA standards. The pumps can be equipped with an MLE motor with integrated frequency converter or connected to a Grundfos CUE external frequency converter.

EAN 5715117079713
Applications Pressure boosting
Actual impeller diameter 6.3 in
Bearing insulation type N-end STEEL BEARING
Built-in motor protection ELEC
Code for rubber V
Code for shaft seal BQQV
Connect code G
Connection Class 125
Control panel HMI300 - Advanced
Curve tolerance 2B HI 14.6:2016
Density 62.29 lb/ft³
Diameter 6.3 in
DOE Pump Energy Index CL 0
DOE Pump Energy Index VL 0.42
Enclosure class (IEC 34-5) IP55
Function Module FM300 - Advanced
Gross weight 263.0 lb
Housing Cast iron
IE Efficiency class IE5
Impeller Stainless steel
Insulation class (IEC 85) F
Internal pump house coating No coating
Liquid temperature range 14 .. 194 °F
Mains frequency 60 Hz
Material code S2
Material Pricing Group 5W
Maximum ambient temperature 122 °F
Maximum operating pressure 12 bar
Motor efficiency at full load 1 0.932
Motor standard NEMA
Motor type 160H
Mounting options design code C
Net weight 262.0 lb
Number of poles 2
Power factor 1 0.92-0.91
Pressure rating for connection Class 125
Product family NBSE
Pump housing Cast iron
Pump speed on which pump data are based 4000 rpm
Pump version AS
Pumped liquid Water
Rated current 17.9-16.6 A
Rated flow 278 US gpm
Rated head 159.8 ft
Rated power - P2 11 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Shaft Stainless steel
Size of inlet connection 2.5 inch
Size of outlet connection 1.5 inch
Standard NEMA
Support block (Yes/No) Y
Type 160H
Type of connection ANSI
Version AS

Motor Curves

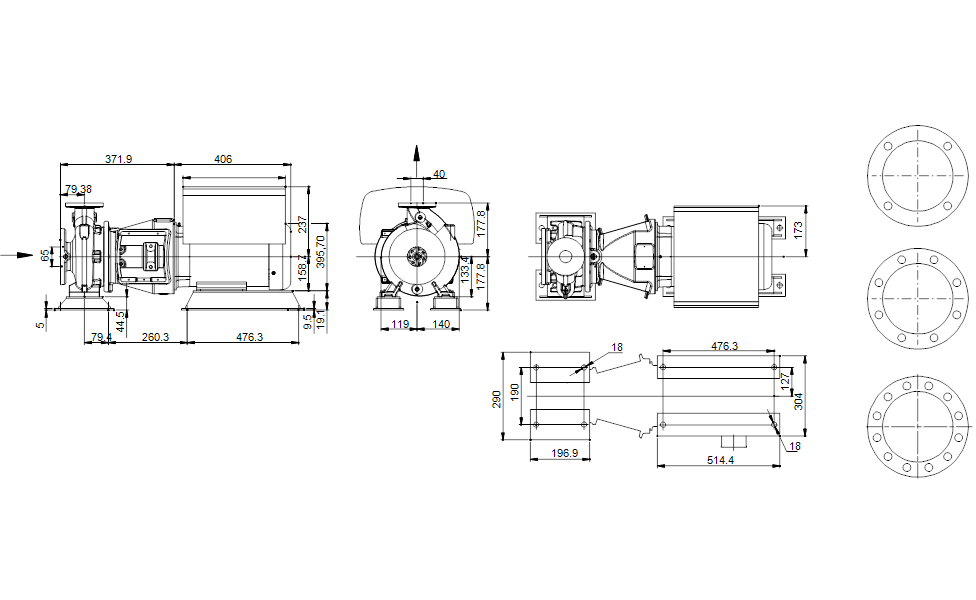

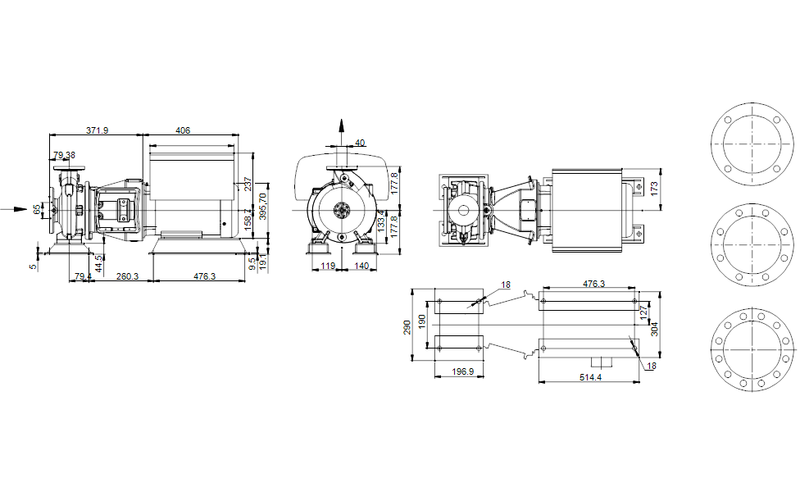

Dimensional Drawing

DWiring Diagram
