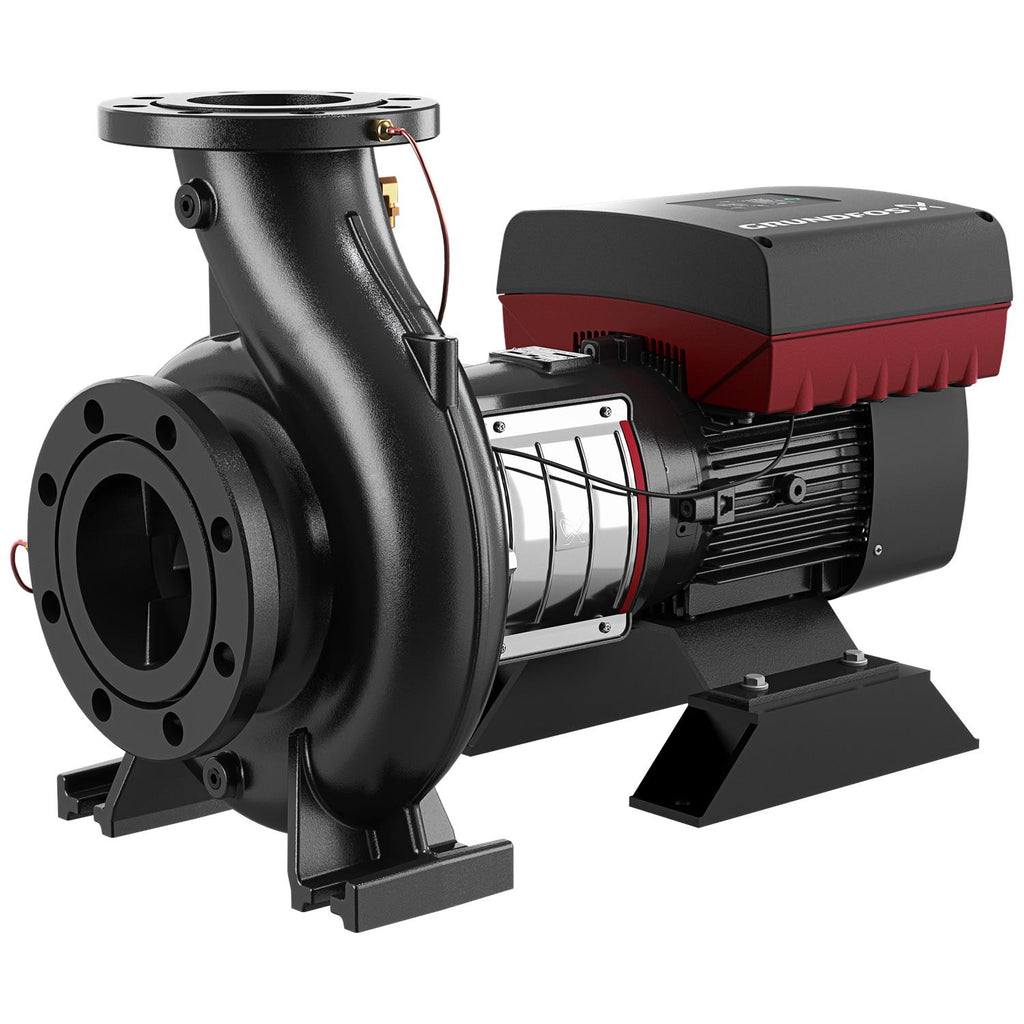

Grundfos 92613501 - NBSE 015-070/5.59 ASASG6S2ESBQQEMCB | End Suction | Single Stage | Centrifugal

GRUNDFOSSKU: 92613501

Price:
Sale price$13,075.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92613501 - NBSE 015-070/5.59 ASASG6S2ESBQQEMCB This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

EAN 5715117078389
Applications Pressure boosting
Actual impeller diameter 5.59 in
Bearing insulation type N-end STEEL BEARING
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal BQQE
Connect code G
Connection Class 125
Control panel HMI300 - Advanced
Curve tolerance 2B HI 14.6:2016
Density 62.29 lb/ft³
Diameter 5.59 in
DOE Pump Energy Index CL 0
DOE Pump Energy Index VL 0.42
Enclosure class (IEC 34-5) IP55
Function Module FM300 - Advanced
Gross weight 238.0 lb
Housing Cast iron
IE Efficiency class IE5
Impeller Stainless steel
Insulation class (IEC 85) F
Internal pump house coating No coating
Liquid temperature range -13 .. 248 °F
Mains frequency 60 Hz
Material code S2
Material Pricing Group 5W
Maximum ambient temperature 122 °F
Maximum operating pressure 12 bar
Motor efficiency at full load 1 0.925
Motor standard NEMA
Motor type 132F
Mounting options design code C
Net weight 237.0 lb
Number of poles 2
Power factor 1 0.91-0.90
Pressure rating for connection Class 125
Product family NBSE
Pump housing Cast iron
Pump speed on which pump data are based 4000 rpm
Pump version AS
Pumped liquid Water
Rated current 12.4-11.5 A
Rated flow 244 US gpm
Rated head 123.7 ft
Rated power - P2 7.5 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Shaft Stainless steel
Size of inlet connection 2.5 inch
Size of outlet connection 1.5 inch
Standard NEMA
Support block (Yes/No) Y
Type 132F
Type of connection ANSI
Version AS

Motor Curves

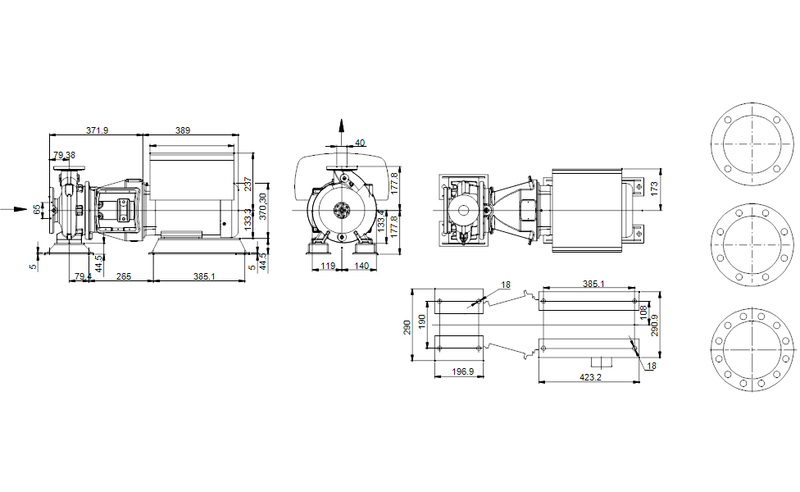

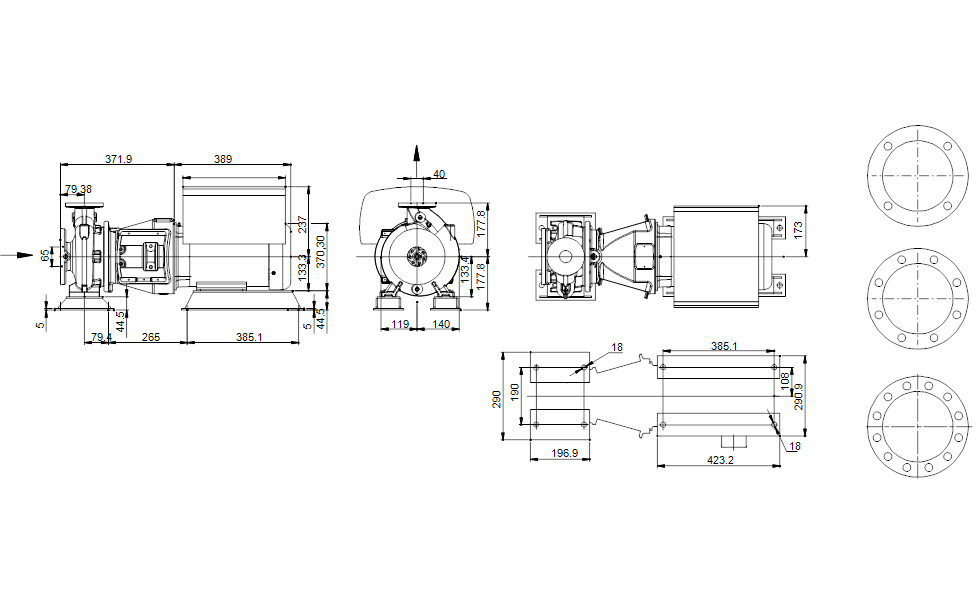

Dimensional Drawing

DWiring Diagram
