Description

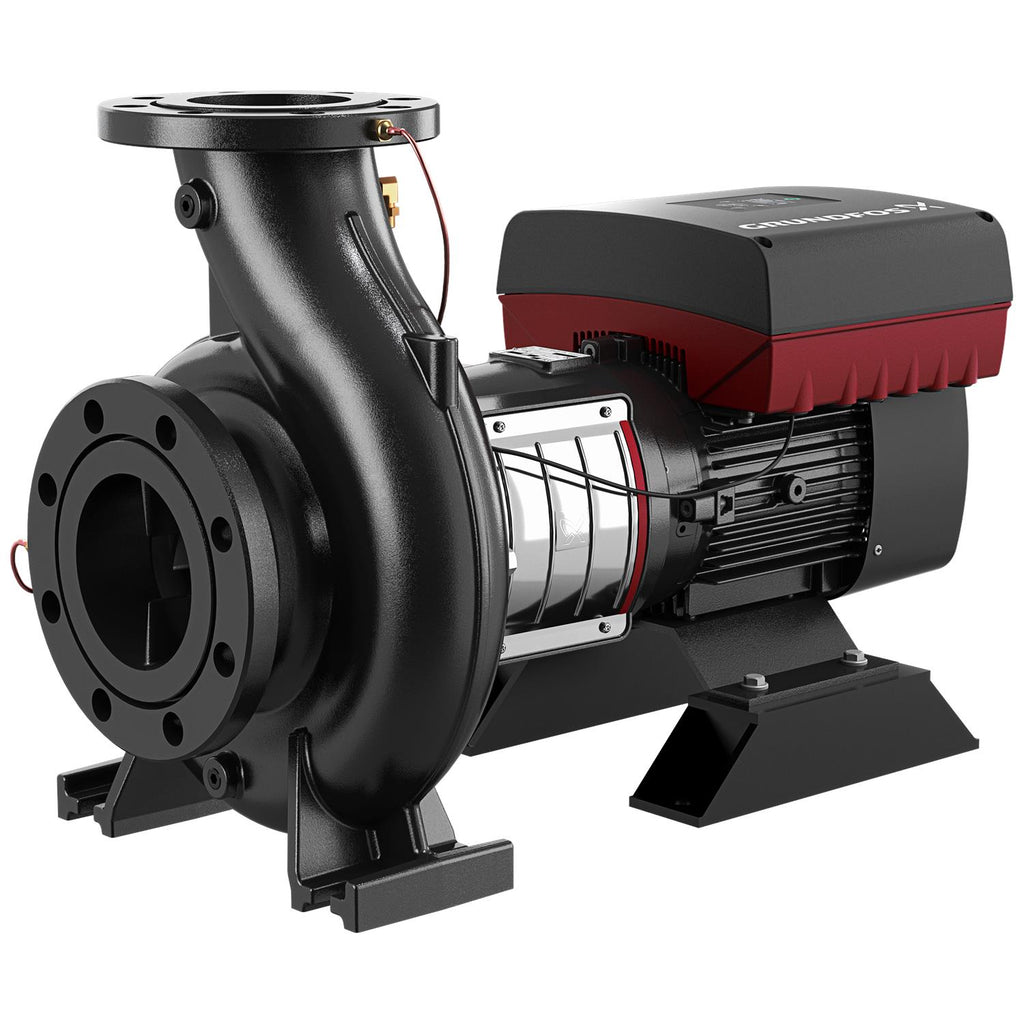

The Grundfos 92617384 (NBSE 015-070/4.49 AASG7SAESDAQFKBB) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Nominal performance: 183US gpm at 73.82ft. Rated 200-240V, 3.0-Phase, 60 Hz. Applications include HVAC: Heating, HVAC: Air Conditioning, Plumbing: Pressure Boosting and more.
Genuine Grundfos Part
OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.
Full Traceability
Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.
Authorized Source
PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.
Confirm Compatibility
Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.
Technical Support Available
PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.
Contact for Availability
Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.
| Model Number | 92617384 |
| Product Series | ACC |
| Series Description | Grundfos Accessory / Spare Part / Control |
| Power | 5HP |
| Voltage | 200-240V |
| Phase | 3.0-Phase |
| Frequency | 60 Hz |
| Motor Speed | 360-4000rpm |
| Pump Speed | 4000rpm |
| Full Load Current | 13,2-10,9A |
| Motor Type | 112C |
| Motor Protection | ELEC |
| Motor Efficiency Class | IE5 |
| Motor Efficiency | 90.2% |
| Insulation Class | F |
| Protection Class (IP) | TEFC |
| Nominal Flow | 183US gpm |
| Nominal Head | 73.82ft |
| Max Operating Pressure | 362.59psi |
| Max Fluid Temperature | 284°F |
| Max Ambient Temperature | 104°F |
| Inlet Connection | 2.5inch |
| Outlet Connection | 1.5inch |
| Pipe Pressure Rating | Class 300 |
| Pipe Standard | ANSI |
| Impeller Material | Stainless steel |
| Housing Material | DUCTILE IRON |
| Shaft Seal | DAQF |
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation: 200-240V, 3.0-Phase, 60 Hz. |
| Temperature limits | Do not exceed max fluid temperature 284°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
- EAN
- 5715117135983
- Applications
- Pressure boosting
- Actual impeller diameter
- 4.49 in
- Bearing insulation type N-end
- STEEL BEARING
- Built-in motor protection
- ELEC
- Code for rubber
- E
- Code for shaft seal
- DAQF
- Connect code
- G
- Connection
- Class 300
- Control panel
- HMI300 - Advanced
- Curve tolerance
- 2B HI 14.6:2016
- Density
- 62.29 lb/ft³
- Diameter
- 4.49 in
- DOE Pump Energy Index CL
- 0
- DOE Pump Energy Index VL
- 0.47
- Enclosure class (IEC 34-5)
- IP55
- Function Module
- FM300 - Advanced
- Gross weight
- 204.0 lb
- Housing
- DUCTILE IRON
- IE Efficiency class
- IE5
- Impeller
- Stainless steel
- Insulation class (IEC 85)
- F
- Internal pump house coating
- No coating
- Liquid temperature range
- 32 .. 284 °F
- Mains frequency
- 60 Hz
- Material code
- SA
- Material Pricing Group
- 5W
- Maximum ambient temperature
- 104 °F
- Maximum operating pressure
- 25 bar
- Motor efficiency at full load 1
- 0.909
- Motor standard
- NEMA
- Motor type
- 112C
- Mounting options design code
- C
- Net weight
- 203.0 lb
- Number of poles
- 2
- Power factor 1
- 0.94
- Pressure rating for connection
- Class 300
- Product family
- NBSE
- Pump housing
- DUCTILE IRON
- Pump speed on which pump data are based
- 4000 rpm
- Pump version
- AS
- Pumped liquid
- Water
- Rated current
- 13.2-10.9 A
- Rated flow
- 183 US gpm
- Rated head
- 73.81 ft
- Rated power - P2
- 3.7 kW
- Rated speed
- 360-4000 rpm
- Rated voltage
- 3 x 200-240 V
- Real Time
- Delivery date to be confirmed on Sales Order Update with real time availability and Net price
- Rubber
- E
- Selected liquid temperature
- 68 °F
- Shaft
- Stainless steel
- Size of inlet connection
- 2.5 inch
- Size of outlet connection
- 1.5 inch
- Standard
- NEMA
- Support block (Yes/No)
- Y
- Type
- 112C
- Type of connection
- ANSI
- Version
- AS

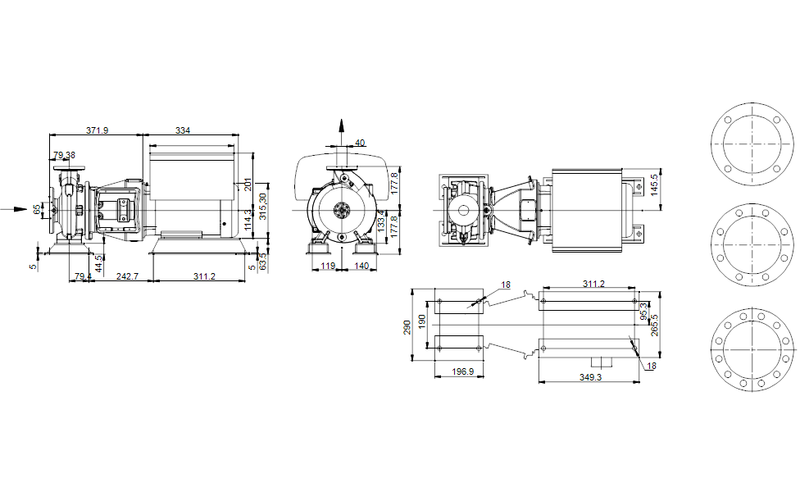

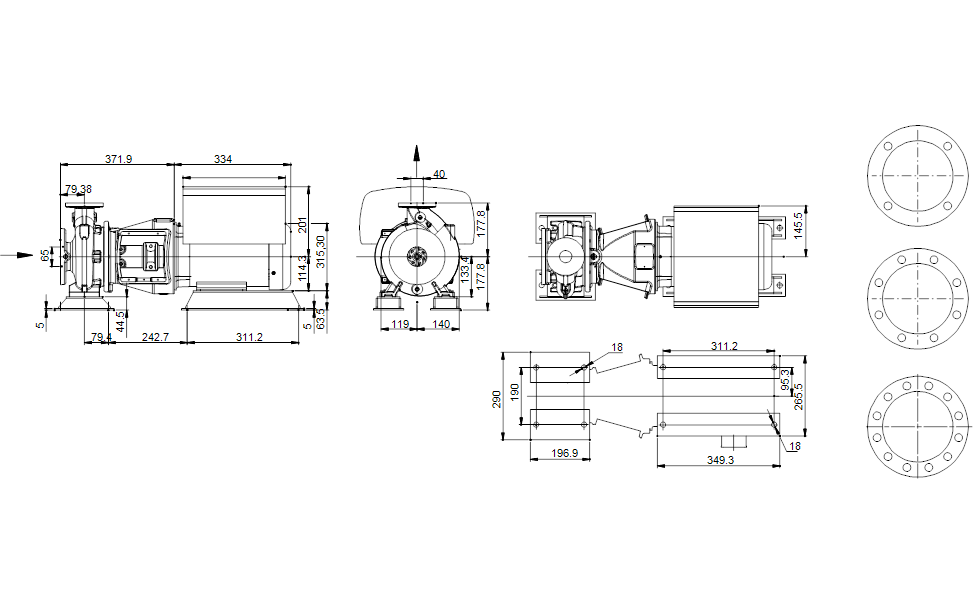

Dimensional Drawing
Wiring Diagram
