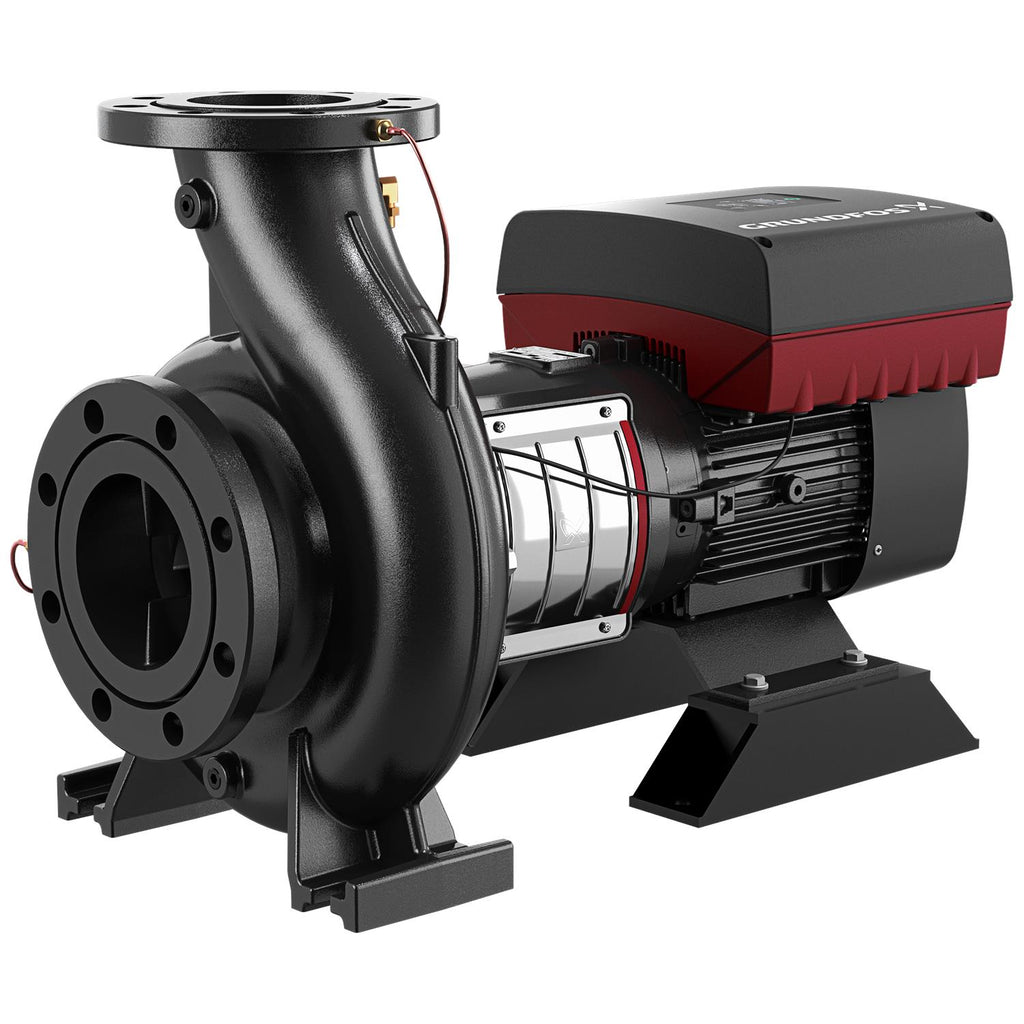

Grundfos 92617367 - NBSE 015-070/4.49 AASG6S2VSBQQVKBB | End Suction | Single Stage | Centrifugal

GRUNDFOSSKU: 92617367

Price:
Sale price$9,991.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92617367 - NBSE 015-070/4.49 AASG6S2VSBQQVKBB is a high-performance end suction centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this single-stage pump is engineered for efficiency and reliability, making it an ideal choice for your pumping needs.

This model features a robust design that ensures optimal performance in demanding environments. With its advanced technology, the Grundfos NBSE series is perfect for applications requiring consistent flow and pressure. Whether you are looking to replace an existing pump or need a new installation, this centrifugal pump is a dependable solution.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don’t hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility.

Explore our extensive range of Grundfos centrifugal pumps, including single and multi-stage options, and experience the quality and performance that Grundfos is known for.

EAN 5715117135532
Applications Pressure boosting
Actual impeller diameter 4.49 in
Bearing insulation type N-end STEEL BEARING
Built-in motor protection ELEC
Code for rubber V
Code for shaft seal BQQV
Connect code G
Connection Class 125
Control panel HMI300 - Advanced
Curve tolerance 2B HI 14.6:2016
Density 62.29 lb/ft³
Diameter 4.49 in
DOE Pump Energy Index CL 0
DOE Pump Energy Index VL 0.47
Enclosure class (IEC 34-5) IP55
Function Module FM300 - Advanced
Gross weight 196.0 lb
Housing Cast iron
IE Efficiency class IE5
Impeller Stainless steel
Insulation class (IEC 85) F
Internal pump house coating No coating
Liquid temperature range 14 .. 194 °F
Mains frequency 60 Hz
Material code S2
Material Pricing Group 5W
Maximum ambient temperature 104 °F
Maximum operating pressure 12 bar
Motor efficiency at full load 1 0.909
Motor standard NEMA
Motor type 112C
Mounting options design code C
Net weight 195.0 lb
Number of poles 2
Power factor 1 0.94
Pressure rating for connection Class 125
Product family NBSE
Pump housing Cast iron
Pump speed on which pump data are based 4000 rpm
Pump version AS
Pumped liquid Water
Rated current 13.2-10.9 A
Rated flow 183 US gpm
Rated head 73.81 ft
Rated power - P2 3.7 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 200-240 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Shaft Stainless steel
Size of inlet connection 2.5 inch
Size of outlet connection 1.5 inch
Standard NEMA
Support block (Yes/No) Y
Type 112C
Type of connection ANSI
Version AS

Motor Curves

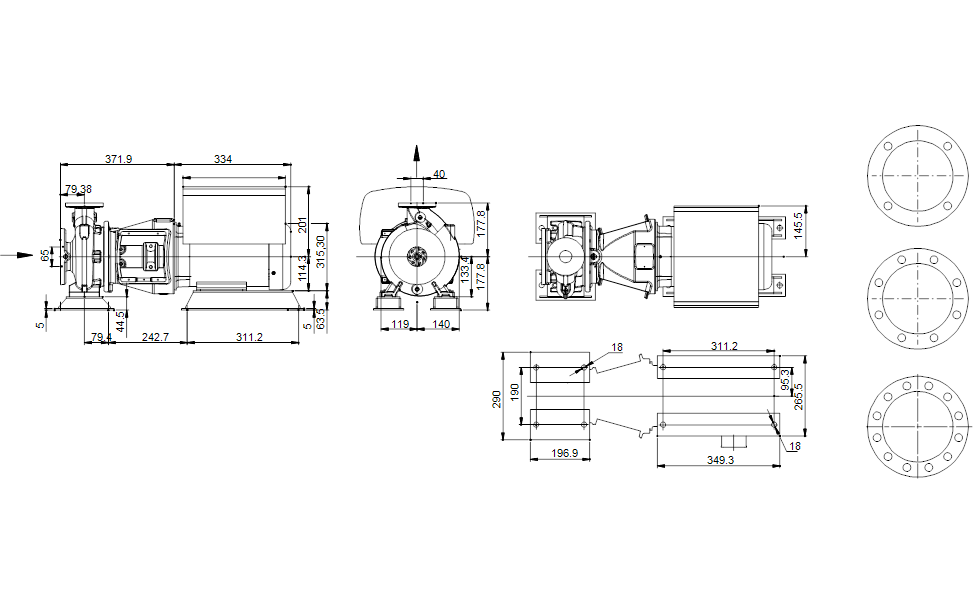

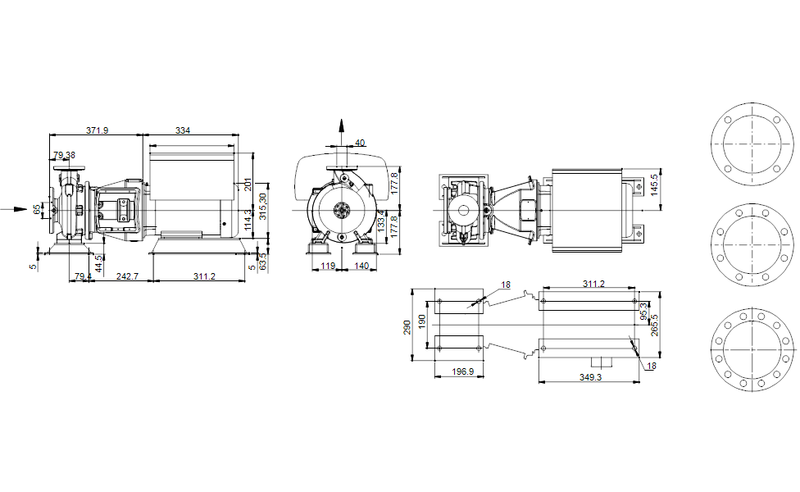

Dimensional Drawing

DWiring Diagram
