Grundfos 92613864 - NBSE 015-070/4.49 ASASG7SAESDAQFKCB | End Suction | Single Stage | Centrifugal

GRUNDFOSSKU: 92613864

Price:
Sale price$12,357.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

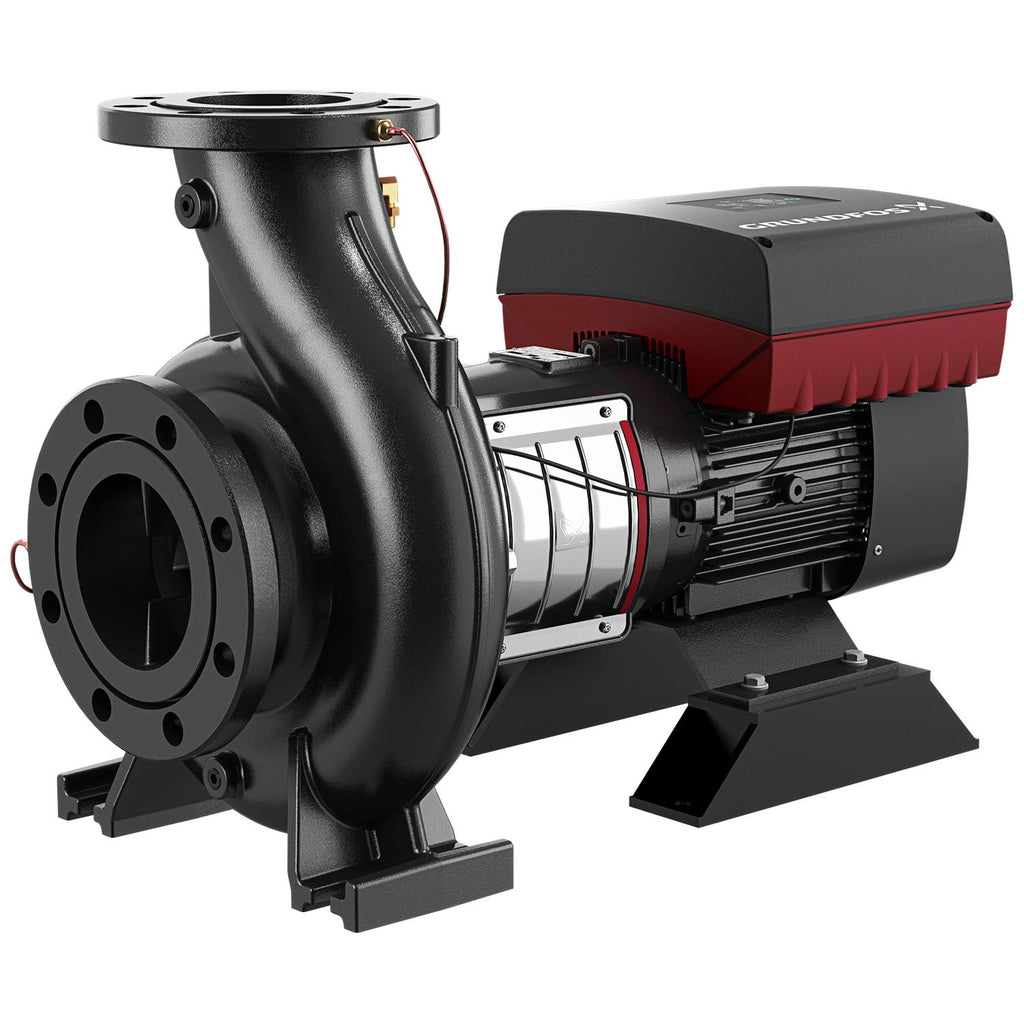

Grundfos 92613864 - NBSE 015-070/4.49 ASASG7SAESDAQFKCB is a high-performance end suction centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this single-stage pump is engineered for efficiency and reliability, making it an ideal choice for your pumping needs.

This model is part of the Grundfos Centrifugal Pumps range, specifically categorized under NBS NBSE and Close Coupled types. With its robust construction and advanced design, the NBSE 015-070/4.49 ensures optimal performance in demanding environments.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the 92613864. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

EAN 5715117085233
Applications Pressure boosting
Actual impeller diameter 4.49 in
Bearing insulation type N-end STEEL BEARING
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal DAQF
Connect code G
Connection Class 300
Control panel HMI300 - Advanced
Curve tolerance 2B HI 14.6:2016
Density 62.29 lb/ft³
Diameter 4.49 in
DOE Pump Energy Index CL 0
DOE Pump Energy Index VL 0.42
Enclosure class (IEC 34-5) IP55
Function Module FM300 - Advanced
Gross weight 207.0 lb
Housing DUCTILE IRON
IE Efficiency class IE5
Impeller Stainless steel
Insulation class (IEC 85) F
Internal pump house coating No coating
Liquid temperature range 32 .. 284 °F
Mains frequency 60 Hz
Material code SA
Material Pricing Group 5W
Maximum ambient temperature 122 °F
Maximum operating pressure 25 bar
Motor efficiency at full load 1 0.925
Motor standard NEMA
Motor type 112C
Mounting options design code C
Net weight 206.0 lb
Number of poles 2
Power factor 1 0.90-0.88
Pressure rating for connection Class 300
Product family NBSE
Pump housing DUCTILE IRON
Pump speed on which pump data are based 4000 rpm
Pump version AS
Pumped liquid Water
Rated current 6.20-5.80 A
Rated flow 183 US gpm
Rated head 73.81 ft
Rated power - P2 3.7 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Shaft Stainless steel
Size of inlet connection 2.5 inch
Size of outlet connection 1.5 inch
Standard NEMA
Support block (Yes/No) Y
Type 112C
Type of connection ANSI
Version AS

Motor Curves

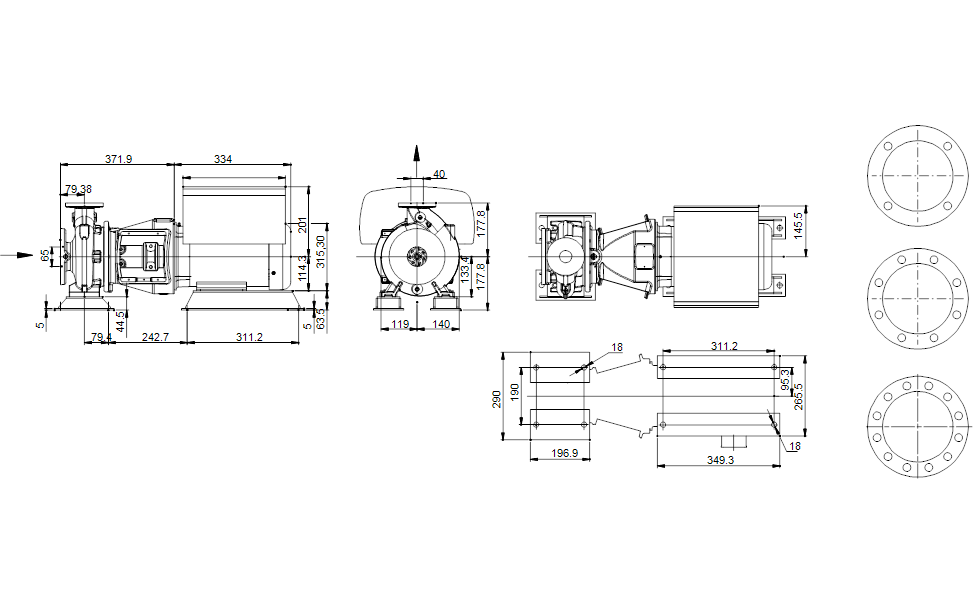

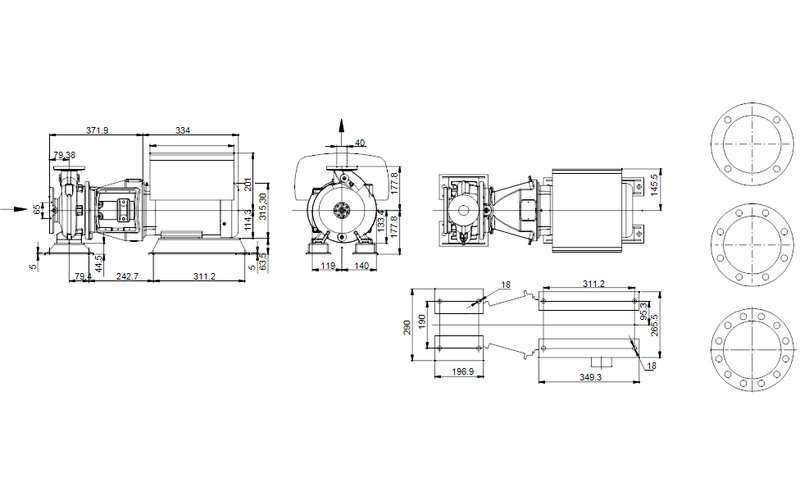

Dimensional Drawing

DWiring Diagram
