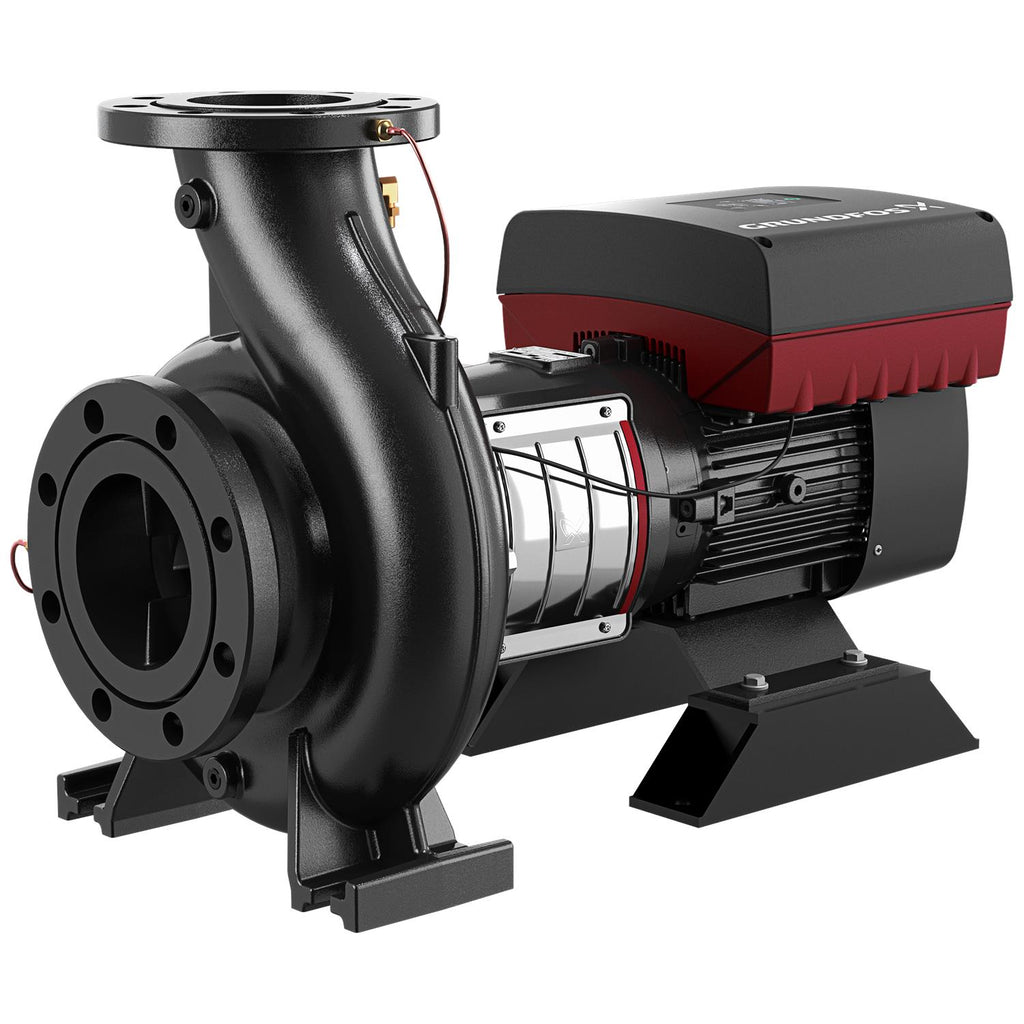

Grundfos 92613813 - NBSE 012-070/6.97 AASG7SDESDAQFNCB | End Suction | Single Stage | Centrifugal

GRUNDFOSSKU: 92613813

Price:
Sale price$16,206.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92613813 - NBSE 012-070/6.97 AASG7SDESDAQFNCB is a high-performance end suction centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned brand Grundfos, this single-stage pump is engineered for efficiency and reliability, making it an ideal choice for those seeking durable pumping solutions.

This model features advanced design elements that ensure optimal performance in various settings. With its robust construction and innovative technology, the Grundfos NBSE series is perfect for handling water and other fluids in commercial and industrial environments.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Grundfos 92613813. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

EAN 5715117084205
Applications Pressure boosting
Actual impeller diameter 6.97 in
Bearing insulation type N-end STEEL BEARING
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal DAQF
Connect code G
Connection Class 300
Control panel HMI300 - Advanced
Curve tolerance 2B HI 14.6:2016
Density 62.29 lb/ft³
Diameter 6.97 in
DOE Pump Energy Index CL 0
DOE Pump Energy Index VL 0.41
Enclosure class (IEC 34-5) IP55
Function Module FM300 - Advanced
Gross weight 265.0 lb
Housing DUCTILE IRON
IE Efficiency class IE5
Impeller Stainless steel
Insulation class (IEC 85) F
Internal pump house coating No coating
Liquid temperature range 32 .. 284 °F
Mains frequency 60 Hz
Material code SD
Material Pricing Group 5W
Maximum ambient temperature 122 °F
Maximum operating pressure 25 bar
Motor efficiency at full load 1 0.932
Motor standard NEMA
Motor type 160H
Mounting options design code C
Net weight 264.0 lb
Number of poles 2
Power factor 1 0.92-0.91
Pressure rating for connection Class 300
Product family NBSE
Pump housing DUCTILE IRON
Pump speed on which pump data are based 4000 rpm
Pump version AS
Pumped liquid Water
Rated current 17.9-16.6 A
Rated flow 173 US gpm
Rated head 226.4 ft
Rated power - P2 11 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Shaft Stainless steel
Size of inlet connection 2 inch
Size of outlet connection 1.25 inch
Standard NEMA
Support block (Yes/No) Y
Type 160H
Type of connection ANSI
Version AS

Motor Curves

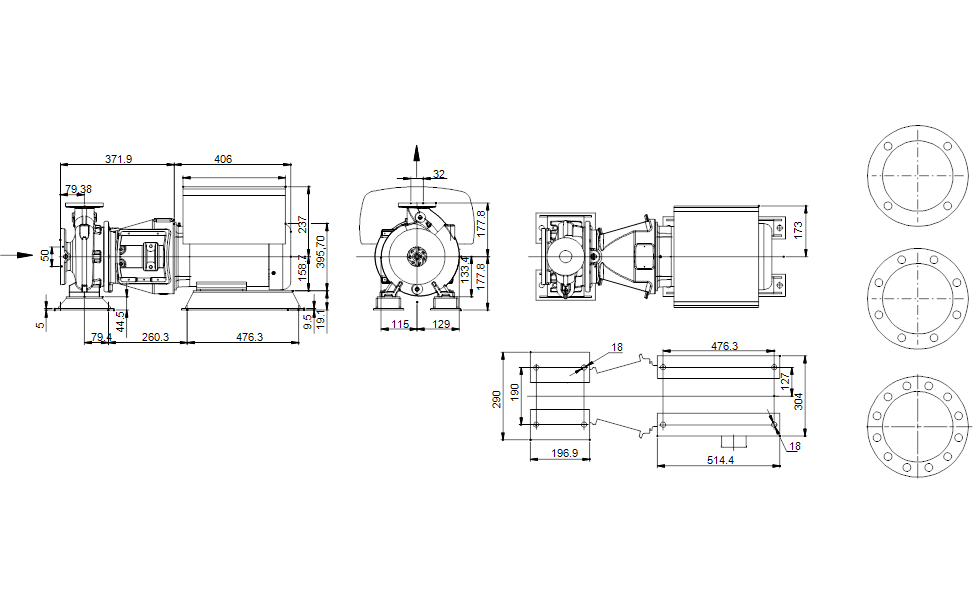

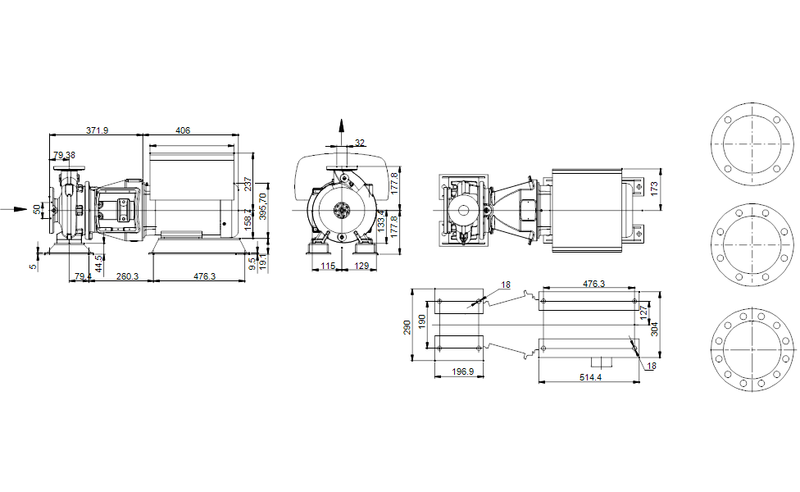

Dimensional Drawing

DWiring Diagram
