Grundfos 92613861 - NBSE 012-070/5.47 ASASG7SAESDAQFLCB | End Suction | Single Stage | Centrifugal

GRUNDFOSSKU: 92613861

Price:
Sale price$12,858.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

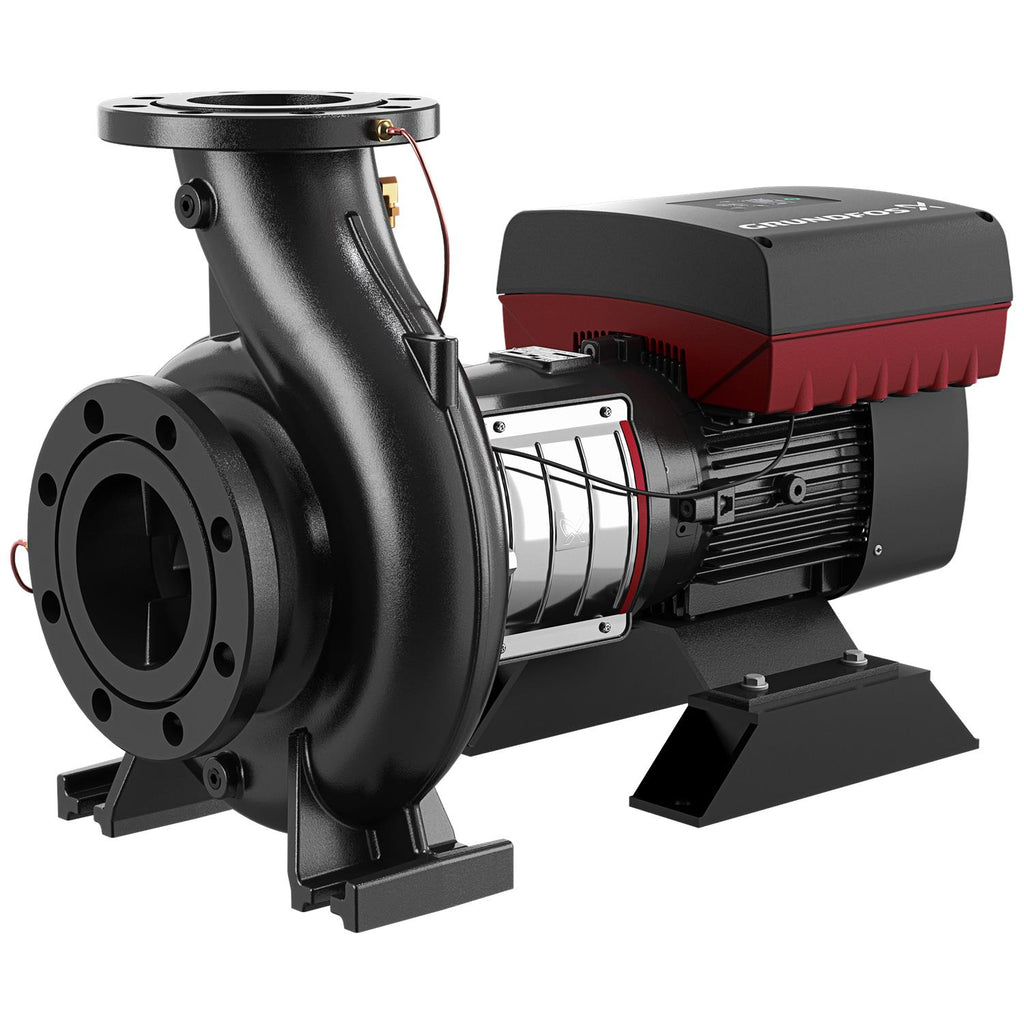

Grundfos 92613861 - NBSE 012-070/5.47 ASASG7SAESDAQFLCB End Suction Centrifugal Pump

The Grundfos 92613861 - NBSE 012-070/5.47 ASASG7SAESDAQFLCB is a high-performance end suction centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, a leader in pump technology, this single-stage pump ensures efficient fluid transfer and reliable operation.

With its robust construction and advanced engineering, the NBSE series is ideal for applications requiring consistent performance and durability. Whether you need to move water or other fluids, this pump is engineered to meet your needs effectively.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility.

For more information on specifications and applications, feel free to reach out to our knowledgeable team. We are here to help you find the perfect solution for your pumping needs.

EAN 5715117085196
Applications Pressure boosting
Actual impeller diameter 5.47 in
Bearing insulation type N-end STEEL BEARING
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal DAQF
Connect code G
Connection Class 300
Control panel HMI300 - Advanced
Curve tolerance 2B HI 14.6:2016
Density 62.29 lb/ft³
Diameter 5.47 in
DOE Pump Energy Index CL 0
DOE Pump Energy Index VL 0.41
Enclosure class (IEC 34-5) IP55
Function Module FM300 - Advanced
Gross weight 222.0 lb
Housing DUCTILE IRON
IE Efficiency class IE5
Impeller Stainless steel
Insulation class (IEC 85) F
Internal pump house coating No coating
Liquid temperature range 32 .. 284 °F
Mains frequency 60 Hz
Material code SA
Material Pricing Group 5W
Maximum ambient temperature 122 °F
Maximum operating pressure 25 bar
Motor efficiency at full load 1 0.924
Motor standard NEMA
Motor type 132E
Mounting options design code C
Net weight 221.0 lb
Number of poles 2
Power factor 1 0.91-0.89
Pressure rating for connection Class 300
Product family NBSE
Pump housing DUCTILE IRON
Pump speed on which pump data are based 4000 rpm
Pump version AS
Pumped liquid Water
Rated current 9.10-8.50 A
Rated flow 128 US gpm
Rated head 131.9 ft
Rated power - P2 5.5 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Shaft Stainless steel
Size of inlet connection 2 inch
Size of outlet connection 1.25 inch
Standard NEMA
Support block (Yes/No) Y
Type 132E
Type of connection ANSI
Version AS

Motor Curves

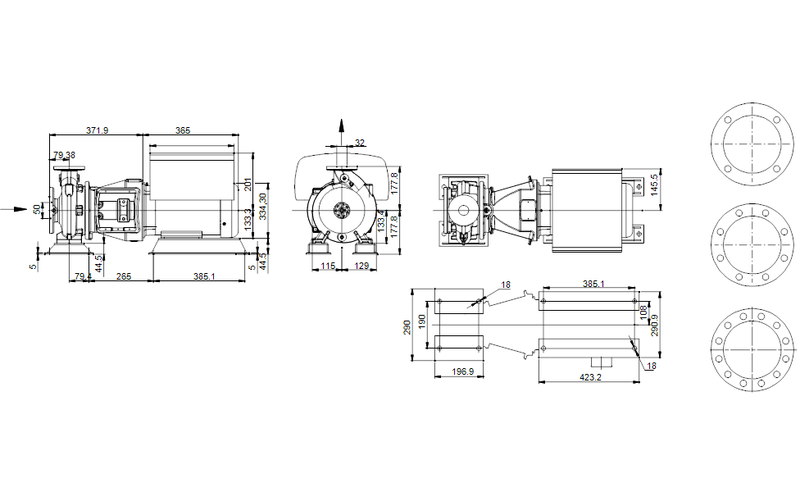

Dimensional Drawing

DWiring Diagram
