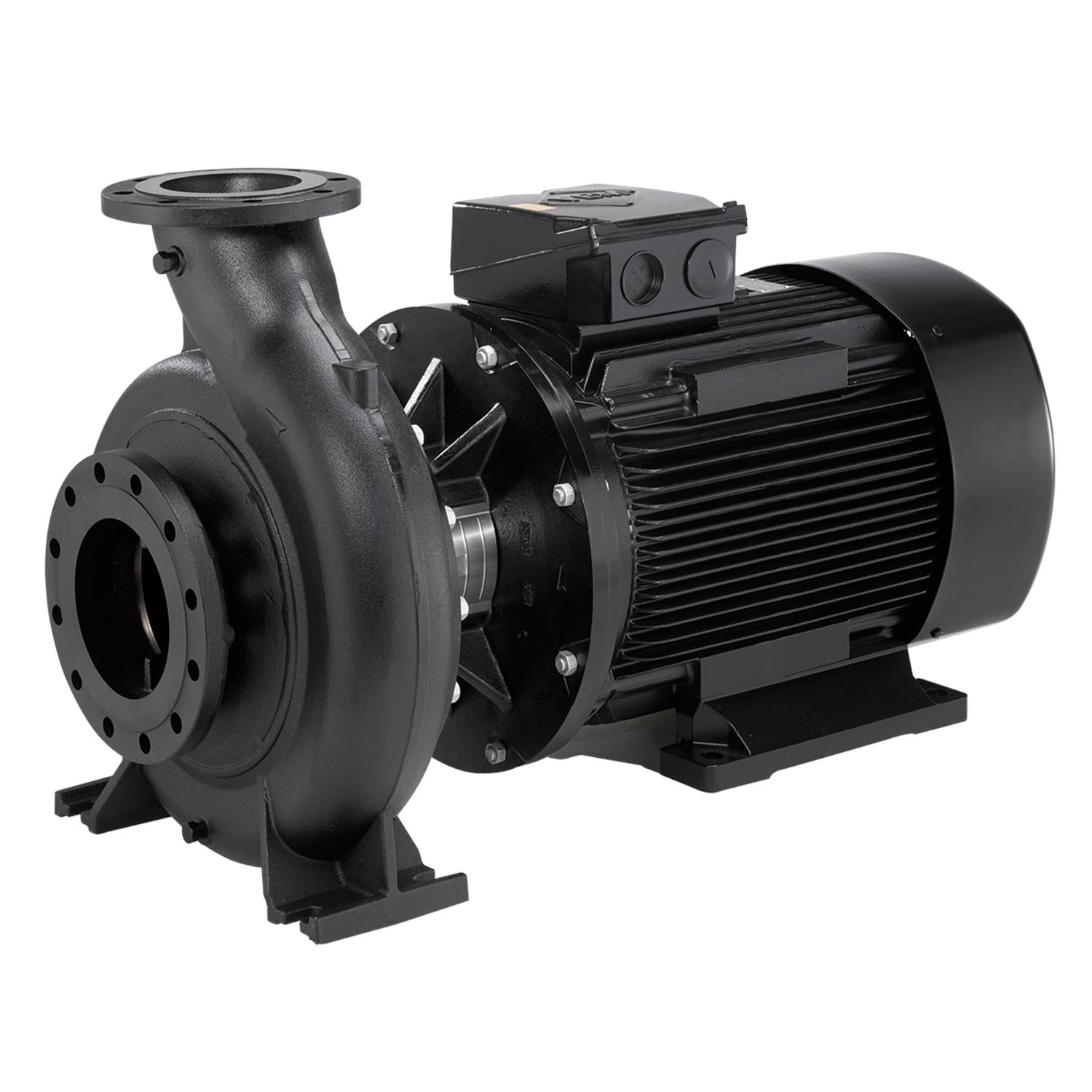

![Grundfos 99633901 - NB 100-315/309 ACF2SESBAQEXX4]()
![Grundfos 99633901 - NB 100-315/309 ACF2SESBAQEXX4]()
![Grundfos 99633901 - NB 100-315/309 ACF2SESBAQEXX4]()
![Grundfos 99633901 - NB 100-315/309 ACF2SESBAQEXX4]()
Description
Grundfos 99633901 - NB 100-315/309 ACF2SESBAQEXX4 This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
EAN
5713832255764
Material Pricing Group
91
Code for rubber
E
Material code
S
Density
62.29 lb/ft³
Maximum operating pressure
16 bar
Size of inlet connection
DN 125
Selected liquid temperature
68 °F
Pumped liquid
Water
Size of outlet connection
DN 100
Connect code
F2
Liquid temperature range
32 .. 248 °F
Net weight
309.0 lb
Number of poles
4
Gross weight
351.0 lb
Rated power - P2
37 kW
Pressure rating for connection
PN 16
Shaft
Stainless steel
Internal pump house coating
CED
Minimum efficiency index, MEI ≥
0.7
Frequency converter
NONE
Pressure sensor
N
Pipe connection standard
EN 1092-2
DOE Pump Energy Index CL
0.95
Shaft diameter
1.26 in
Pump speed on which pump data are based
1784 rpm
Rated flow
844 US gpm
Version
C
Diameter
1.26 in
Rubber
E
Housing
Cast iron
Support block (Yes/No)
N
Rated head
151.6 ft
Actual impeller diameter
12.2 in
Curve tolerance
ISO9906:2012 3B
Connection
PN 16
Impeller
Stainless steel
Code for shaft seal
BAQE
Pump housing
Cast iron
Standard
EN 1092-2
Pump version
C
Bearing lubrication
Grease
