Image shown may not be actual product
![Grundfos 95704600 - Multifunction valve]()
![Grundfos 95704600 - Multifunction valve]()
![Grundfos 95704600 - Multifunction valve]()
![Grundfos 95704600 - Multifunction valve]()
Description
Multifunction valve | Compact valve unit for direct mounting on the pump discharge connection. Multifunction valves combine four functions: 1. Constant counter-pressure and anti-siphoning2. Pump protection through pressure relief3. Deaeration of pump head during start up4. Emptying of discharge line
EAN
5700839220338
Applications
Accessories
Connection
no connectors included
Designed for
DDA
Gasket
PTFE
Housing
PVDF
Material Pricing Group
67
Opening pressur
3 bar
Pipework connection
no connectors included
Product family
Multifunction valves
Pump connection
G5/8
Real Time
1 Available on 10/13/2023 Plant: Allentown Update with real time availability and Net price
Connection mat.
No connector included
Motor Curves

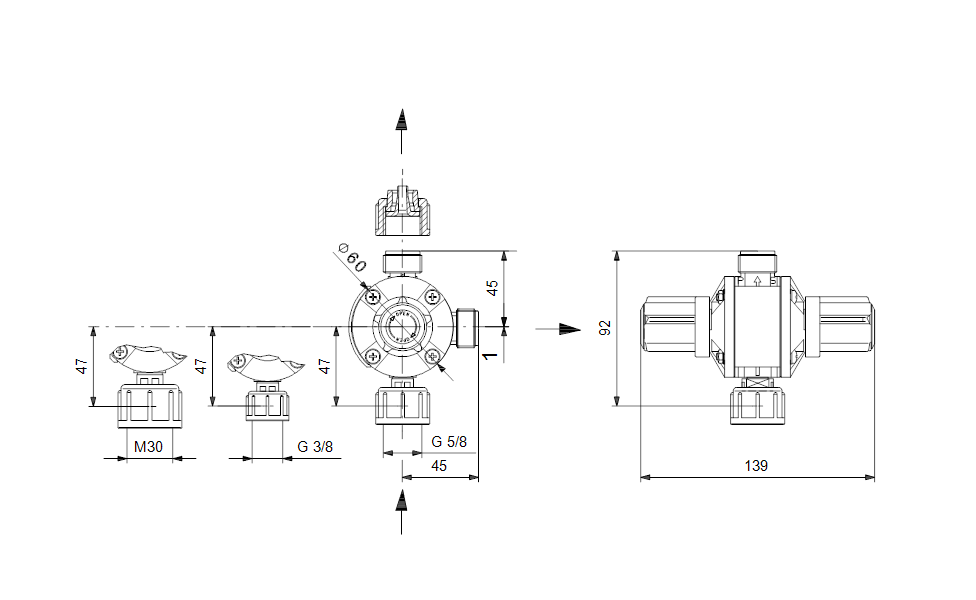

Dimensional Drawing
MFV (Multi-function valve) (Quick Guide)
Diaphragm leakage detector 60-940 l/h (Quick Guide)
A Wide Range (English) (Product brochure)
DOSING PUMPS, MEASUREMENT & CONTROL AND DISINFECTION SYSTEMS (Product brochure)
MULTI-FUNCTION VALVE (Product brochure)
SUSTAINABLE WATER TREATMENT PROJECTS
