Description
Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
98751580 · Grundfos Accessory / Spare Part / Control

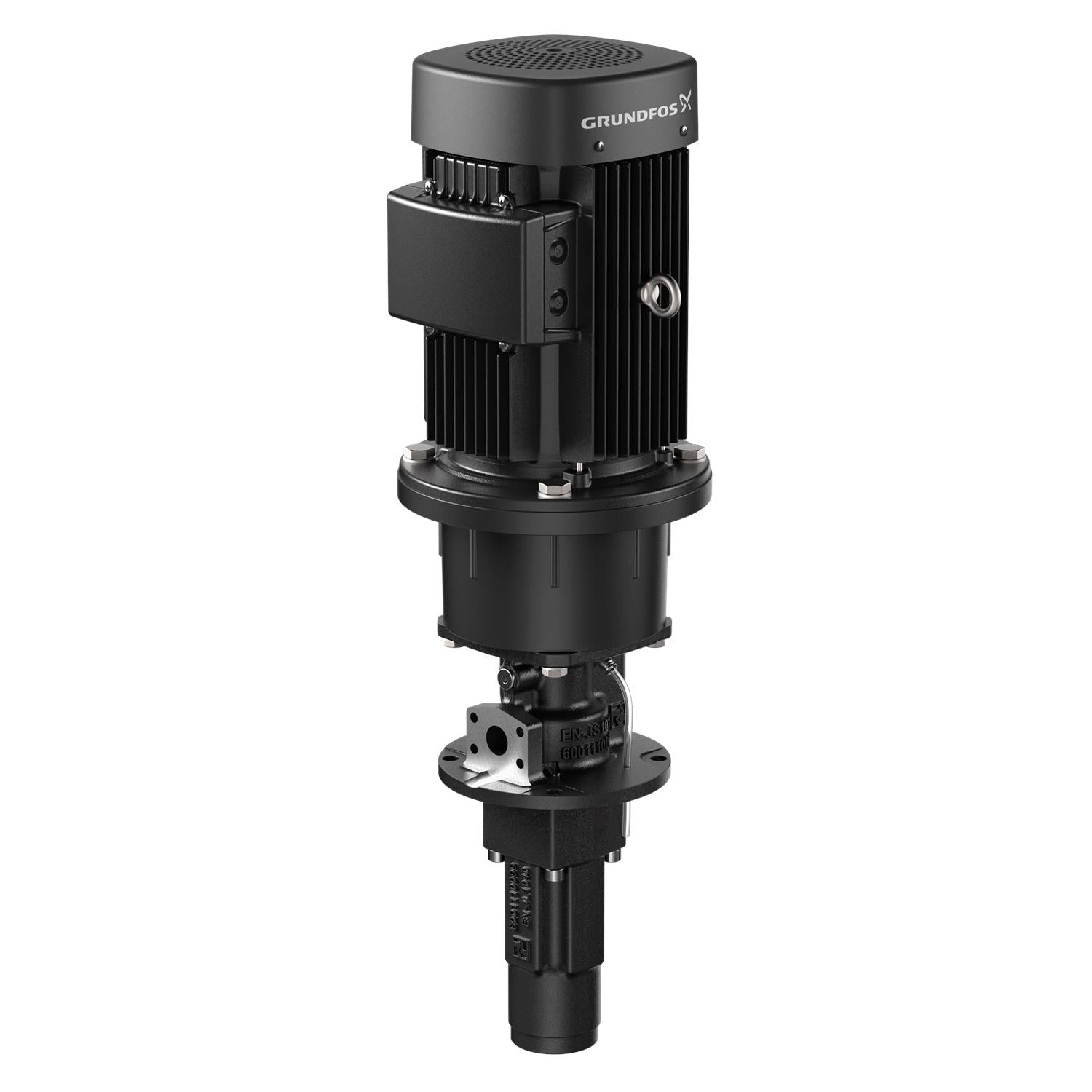

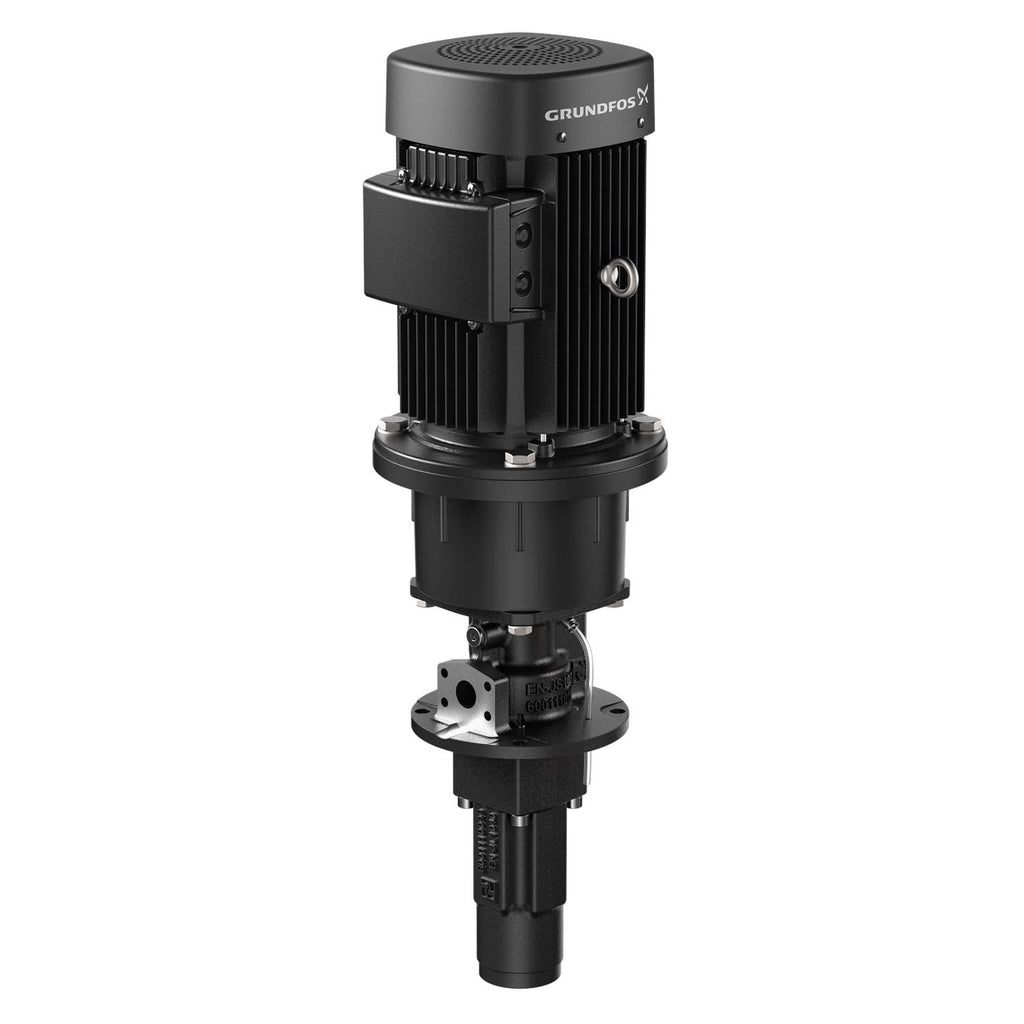

The Grundfos 98751580 (MTS 140-80 R46 D8.6-H) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Rated 440-480DV, 3-Phase, 60 Hz. Applications include Machining.
Power
75HP
Voltage
440-480DV
Phase
3-Phase
Max Flow
70.3US gpm
Max Pressure
1160.3psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
IE3 / NEMA Premium motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product
Genuine Grundfos Part
OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.
Full Traceability
Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.
Authorized Source
PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.
Confirm Compatibility
Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.
Technical Support Available
PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.
Contact for Availability
Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.
Model Information — 98751580
Series: ACC
Shaft Seal: D8.9
Technical Specifications
| Model Number | 98751580 |
| Product Series | ACC |
| Series Description | Grundfos Accessory / Spare Part / Control |
| Power | 75HP |
| Voltage | 440-480DV |
| Phase | 3-Phase |
| Frequency | 60 Hz |
| Motor Speed | 3578rpm |
| Pump Speed | 3500rpm |
| Full Load Current | 83A |
| Motor Type | INNOMOTICS |
| Motor Protection | PTC |
| Motor Efficiency Class | IE3 / NEMA Premium |
| Motor Efficiency | IE3 93,6% |
| Insulation Class | F |
| Protection Class (IP) | IP55 |
| Nominal Flow | 70.3US gpm |
| Max Operating Pressure | 1160.3psi |
| Max Fluid Temperature | 176°F |
| Max Ambient Temperature | 131°F |
| Inlet Connection | SAE 2" |
| Outlet Connection | G 1 1/4" / SAE 1 1/2" |
| Shaft Seal | D8.9 |
| Approvals / Certifications | CE, UKCA |
Applications
Machining
Important Notices
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation: 440-480DV, 3-Phase, 60 Hz. |
| Temperature limits | Do not exceed max fluid temperature 176°F or max ambient temperature 131°F. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
Documentation
✓ Installation and Operating Manual (IOM) — ACC Series
✓ Product Data Sheet — 98751580
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
- EAN
- 5711499890267
- Approvals
- WEEE
- Approvals for motor
- CE
- Built-in motor protection
- PTC
- Density
- 62.29 lb/ft³
- Enclosure class (IEC 34-5)
- IP55
- Energy approvals for motor
- CE
- Environmental approvals
- WEEE
- Flange size for motor
- FF500
- Frequency converter
- NONE
- IE efficiency
- IE3 93
- IE Efficiency class
- IE3 / NEMA Premium
- Insulation class (IEC 85)
- F
- Mains frequency
- 60 Hz
- Material Pricing Group
- 32
- Maximum ambient temperature
- 131 °F
- Maximum liquid temperature
- 176 °F
- Maximum operating pressure
- 80 bar
- Model
- A
- Motor
- FF500
- Motor efficiency at 1/2 load
- 92.3-92.3 %
- Motor efficiency at 3/4 load
- 93.4-93.4 %
- Motor efficiency at full load 1
- 93.6-93.6 %
- Motor type
- SIEMENS
- Net weight
- 1100.0 lb
- Number of poles
- 2
- Power (P2) required by pump
- 46.1 kW
- Power factor 1
- 0.89
- Primary shaft seal
- D8.6
- Pump
- 46.1 kW
- Pump inlet
- SAE 2"
- Pump outlet
- G 1 1/4" / SAE 1 1/2"
- Pump speed on which pump data are based
- 3500 rpm
- Pumped liquid
- Emulsion
- Rated current
- 83 A
- Rated flow
- 70.3 US gpm
- Rated power - P2
- 55 kW
- Rated speed
- 3578 rpm
- Rated voltage
- 3 x 440-480D V
- Real Time
- Delivery date to be confirmed on Sales Order Update with real time availability and Net price
- Selected liquid temperature
- 68 °F
- Starting current
- 7.3
- Type
- SIEMENS
Dimensional Drawing
Wiring Diagram
