Grundfos 99077568 - MTRE 8-7/7 A-WB-A-HUUV | Vertical | Multistage | Tank Mounted | Centrifugal

Save $4,110.15
GRUNDFOSSKU: 99077568

Price:
Sale price$4,634.85 Regular price$8,745.00
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99077568 is a MTRE vertical multistage centrifugal tank-mounted pump assembly used in industrial fluid handling and pressure-boosting systems. It suits technicians and facilities managers replacing or servicing tank-mounted multistage pumps.

Key features

  • Tank-mounted MTRE configuration for compact, integrated installation
  • Vertical multistage centrifugal design for higher pressure in a compact footprint
  • Provides reliable staged pumping for extended run times and consistent system pressure

Applications

Typical uses include pressure boosting, closed-loop circulation, tank feed systems, and industrial process applications where vertical multistage, tank-mounted pumps are specified.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99077568

EAN 5712606311569
Approvals CE
Approvals for motor CE
Built-in motor protection ELEC
Cable gland entry 5 x NPT 1/2"
Chambers 7
Code for shaft seal HUUV
Connect code WB
Connection 1 1/4 inch
Control panel Graphical
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Energy approvals for motor CE
Flange size for motor 182TC
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 144.0 lb
IE Efficiency class IE5
Immersion depth 14.1 in
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range 14 .. 194 °F
Mains frequency 60 Hz
Material code A
Material Pricing Group 32
Max pressure at stated temp 363 psi / 194 °F
Maximum ambient temperature 122 °F
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor 182TC
Motor efficiency at full load 1 0.925
Motor standard NEMA
Motor type 112C
Net weight 104.0 lb
Number of reduced-diameter impellers 0
Power factor 1 0.90-0.88
Product family MTRE 8
Pump speed on which pump data are based 3530 rpm
Pump version A
Pumped liquid Emulsion
Rated current 6.20-5.80 A
Rated flow 44 US gpm
Rated head 267.7 ft
Rated power - P2 3.7 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature 68 °F
Service factor 1.15
Size of outlet connection 1 1/4 inch
Standard NEMA
Suitable for 50/60 Hz Y
Terminal box position 6
Type 112C
Type of connection NPT(F)
Version A

Motor Curves

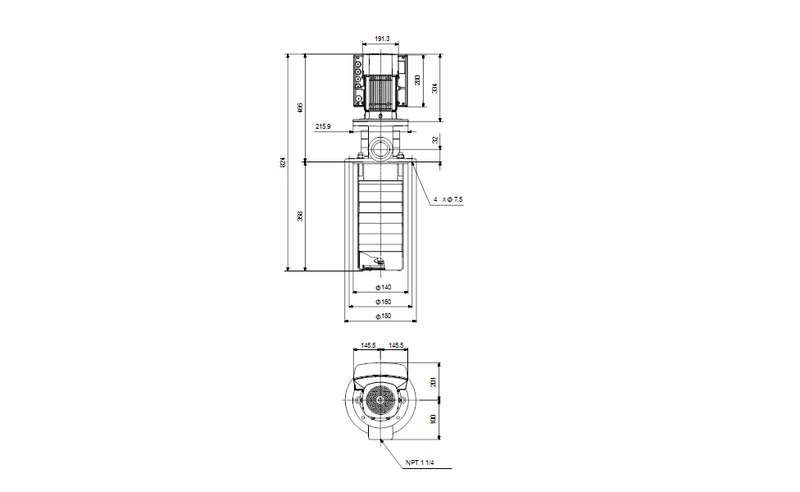

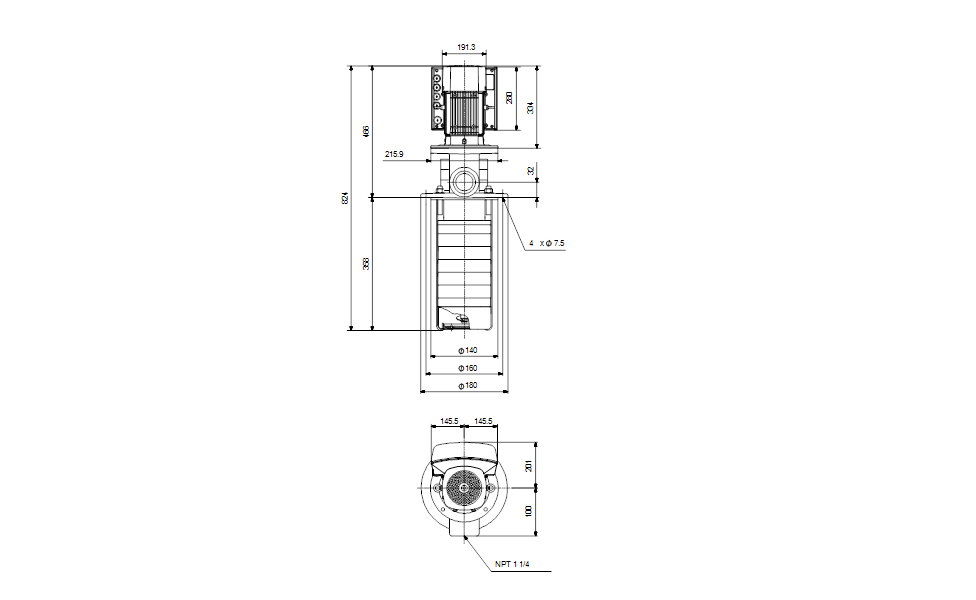

Dimensional Drawing

DWiring Diagram
