Grundfos 99077571 - MTRE 8-14/14 A-WB-A-HUUV | Vertical | Multistage | Tank Mounted | Centrifugal

Save $5,804.03
GRUNDFOSSKU: 99077571

Price:
Sale price$6,544.97 Regular price$12,349.00
or Call for most up to date lead times. (781) 281-8905

Description

Overview

This Grundfos MTRE 8-14/14 A-WB-A-HUUV is a vertical, tank-mounted multistage centrifugal pump suited for industrial and commercial fluid-handling systems, commonly used by service technicians and facility operators.

Key features

  • Designed for tank-mounted installation to save space and simplify piping
  • Vertical multistage centrifugal configuration for higher pressure in compact footprint
  • Reliable performance for pumping, boosting, and circulation applications

Applications

Booster systems, industrial process circulation, HVAC support, water transfer and pressure boosting where a vertical multistage tank-mounted pump is appropriate.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99077571

EAN 5712606311613
Approvals CE
Approvals for motor CE
Built-in motor protection ELEC
Cable gland entry 1 x NPT 3/4" + 5 x NPT 1/2"
Chambers 14
Code for shaft seal HUUV
Connect code WB
Connection 1 1/4 inch
Control panel Graphical
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Energy approvals for motor CE
Flange size for motor 213TC
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 215.0 lb
IE Efficiency class IE5
Immersion depth 21.5 in
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range 14 .. 194 °F
Mains frequency 60 Hz
Material code A
Material Pricing Group 32
Max pressure at stated temp 363 psi / 194 °F
Maximum ambient temperature 122 °F
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor 213TC
Motor efficiency at full load 1 0.925
Motor standard NEMA
Motor type 132F
Net weight 151.0 lb
Number of reduced-diameter impellers 0
Power factor 1 0.91-0.90
Product family MTRE 8
Pump speed on which pump data are based 3510 rpm
Pump version A
Pumped liquid Emulsion
Rated current 12.4-11.5 A
Rated flow 44 US gpm
Rated head 526.9 ft
Rated power - P2 7.5 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature 68 °F
Service factor 1.15
Size of outlet connection 1 1/4 inch
Standard NEMA
Suitable for 50/60 Hz Y
Terminal box position 6
Type 132F
Type of connection NPT(F)
Version A

Motor Curves

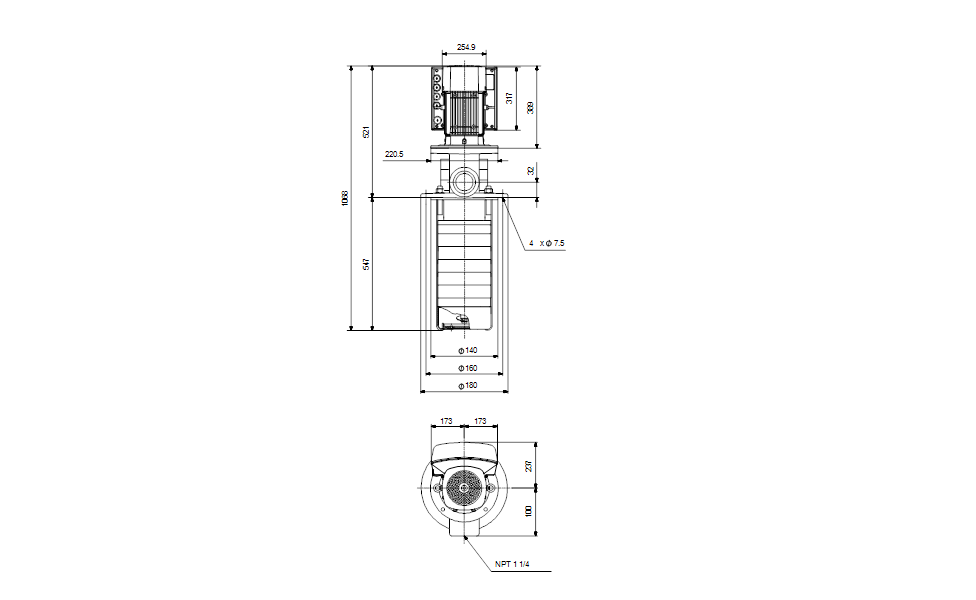

Dimensional Drawing

DWiring Diagram
