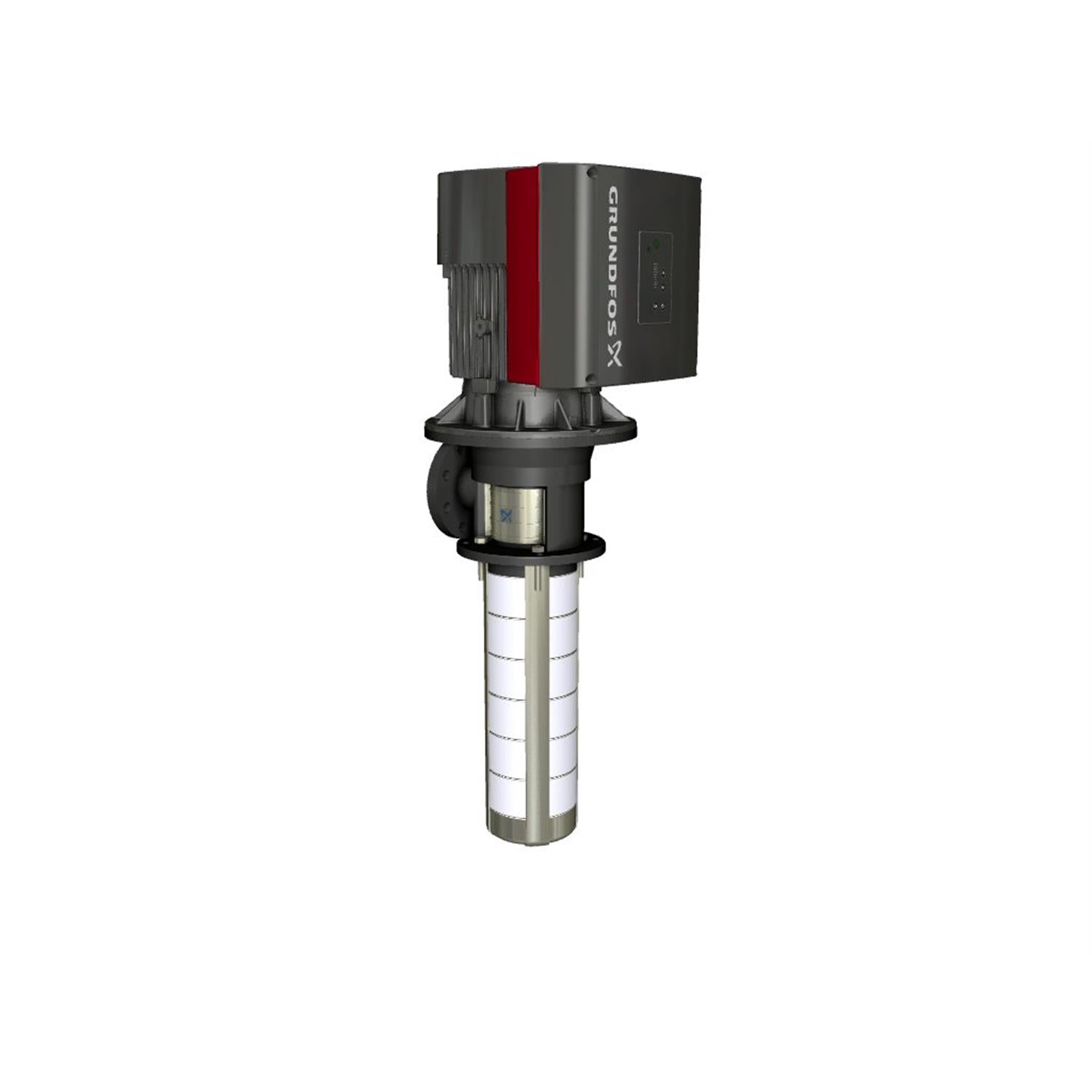

![Grundfos 99802369 - MTRE 64-5/3-2 A-G-A-HUUV]()
![Grundfos 99802369 - MTRE 64-5/3-2 A-G-A-HUUV]()
![Grundfos 99802369 - MTRE 64-5/3-2 A-G-A-HUUV]()
![Grundfos 99802369 - MTRE 64-5/3-2 A-G-A-HUUV]()
![Grundfos 99802369 - MTRE 64-5/3-2 A-G-A-HUUV]()
![Grundfos 99802369 - MTRE 64-5/3-2 A-G-A-HUUV]()
Description
Grundfos 99802369 - MTRE 64-5/3-2 A-G-A-HUUV This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
EAN
5713834506765
Material Pricing Group
31
Motor efficiency at full load 1
0.917
IE Efficiency class
NEMA Premium / IE3 60Hz
Maximum ambient temperature
104 °F
Material code
A
Immersion depth
19.6 in
Density
62.29 lb/ft³
Max pressure at stated temp
363 psi / 194 °F
Maximum operating pressure
25 bar
Power factor 1
0.88
Selected liquid temperature
68 °F
Type of connection
ANSI
Rated voltage
3 x 460 V
Flange size for motor
286TC
Pumped liquid
Water
Size of outlet connection
3 inch
Connect code
G
Liquid temperature range
14 .. 194 °F
Mains frequency
60 Hz
Insulation class (IEC 85)
F
Built-in motor protection
YES
Net weight
465.0 lb
Number of poles
2
Rated speed
480-3540 rpm
Gross weight
690.0 lb
Rated power - P2
22 kW
Enclosure class (IEC 34-5)
IP55
Rated current
36.5 A
Service factor
1.15
Cable gland entry
1xM40+1xM20+4xM16 knock out
Control panel
Standard
Minimum efficiency index, MEI ≥
0.7
Frequency converter
Built-in
Motor type
180AA
Terminal box position
6
Function Module
ADVANCED I/O
Pump speed on which pump data are based
3541 rpm
Approvals
CE
Rated flow
339 US gpm
Model
B
Version
A
Motor
286TC
Chambers
5
Motor standard
NEMA
Rated head
249.4 ft
Type
180AA
Curve tolerance
ISO9906:2012 3B
Impellers
2
Suitable for 50/60 Hz
N
Connection
3 inch
Impeller
Stainless steel
Code for shaft seal
HUUV
Number of reduced-diameter impellers
2
Standard
NEMA
Pump version
A
