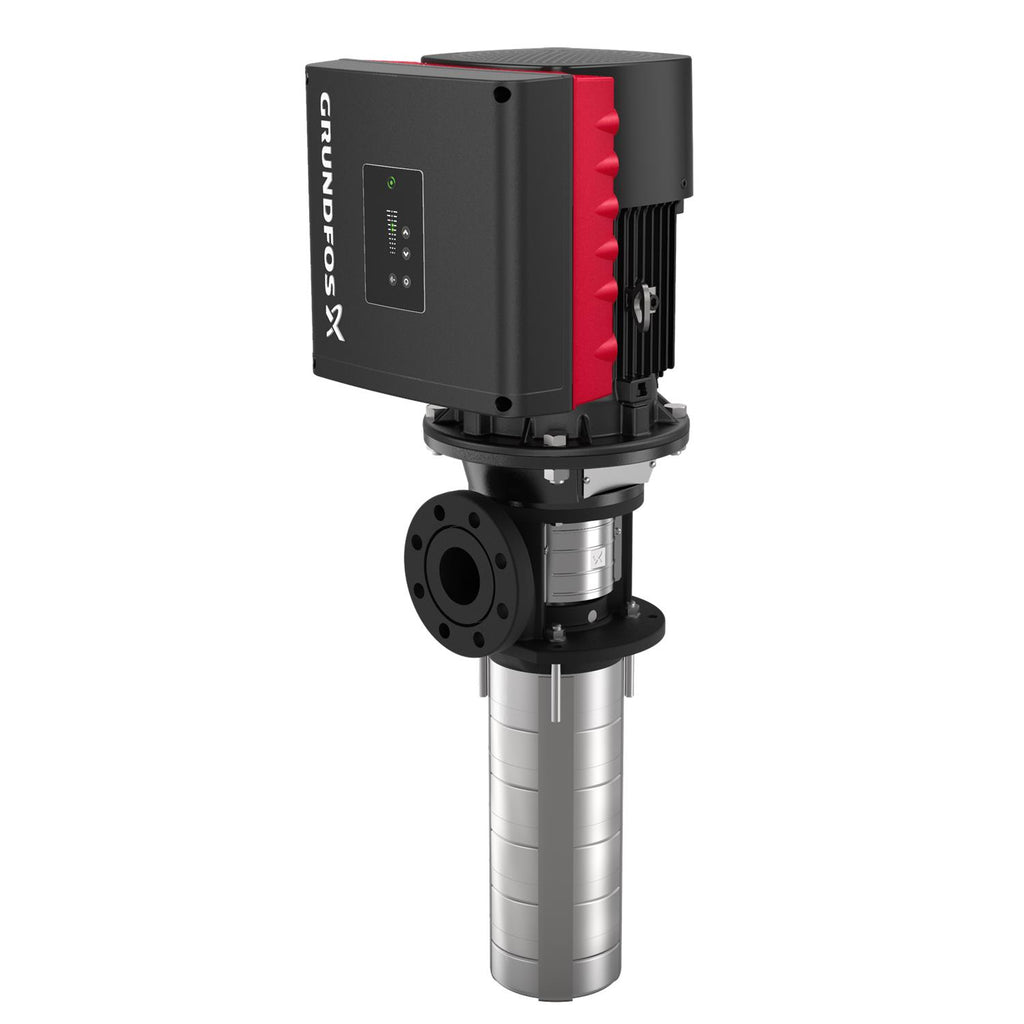

Grundfos 98472485 - MTRE 64-3/3-2 A-G-A-HUUV | Multistage | Immersible | SelfPriming | Centrifugal | Vertical Installation | Vertical

Save $11,569.52
GrundfosSKU: 98472485

Price:
Sale price$13,046.48 Regular price$24,616.00
or Call for most up to date lead times. (781) 281-8905

Description

⚠ Discontinued Product This model has been discontinued by Grundfos. Stock may be limited. Contact PumpStop to confirm availability or discuss a replacement model.
Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
98472485 · Submersible Multistage Pump — Tank Top Variable Speed
MTRE30HP460-480V3.0-Phase60 HzNEMA Premium / IE3 60HzIP55Stainless steel

The Grundfos 98472485 (MTRE 64-3/3-2 A-G-A-HUUV) is a Submersible Multistage Pump — Tank Top Variable Speed. Tank top multistage pump with integrated frequency converter. Nominal performance: 339US gpm at 249.4ft. Rated 460-480V, 3.0-Phase, 60 Hz. Applications include Machining.

Power
30HP
Voltage
460-480V
Phase
3.0-Phase
Max Flow
339US gpm
Max Head
249.4ft
Max Pressure
362.59psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
NEMA Premium / IE3 60Hz motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — 98472485
Series: MTRE
Impeller Material: Stainless steel
Shaft Seal: HUUV
Technical Specifications
Model Number 98472485
Product Series MTRE
Series Description Submersible Multistage Pump — Tank Top Variable Speed
Power 30HP
Voltage 460-480V
Phase 3.0-Phase
Frequency 60 Hz
Motor Speed 480-3540rpm
Pump Speed 3541rpm
Full Load Current 36.5A
Motor Type 180AA
Motor Protection YES
Motor Efficiency Class NEMA Premium / IE3 60Hz
Motor Efficiency 91.7%
Insulation Class F
Protection Class (IP) IP55
Nominal Flow 339US gpm
Nominal Head 249.4ft
Max Operating Pressure 362.59psi
Max Fluid Temperature 194°F
Max Ambient Temperature 104°F
Outlet Connection 3inch
Pipe Standard ANSI
Impeller Material Stainless steel
Shaft Seal HUUV
Approvals / Certifications CE, UKCA, RCM
Applications
Machining
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 460-480V, 3.0-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 194°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. MTRE pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — MTRE Series
✓ Product Data Sheet — 98472485
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5711495666293
Approvals CE
Approvals for motor CE
Built-in motor protection YES
Cable gland entry 1xM40+1xM20+4xM16 knock out
Chambers 3
Code for shaft seal HUUV
Connect code G
Connection 3 inch
Control panel Standard
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Energy approvals for motor CE
Flange size for motor 286TC
Frequency converter Built-in
Function Module ADVANCED I/O
Gross weight 689.0 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Immersion depth 13.1 in
Impeller Stainless steel
Impellers 2
Insulation class (IEC 85) F
Liquid temperature range 14 .. 194 °F
Mains frequency 60 Hz
Material code A
Material Pricing Group 32
Max pressure at stated temp 363 psi / 194 °F
Maximum ambient temperature 104 °F
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model B
Motor 286TC
Motor efficiency at full load 1 0.917
Motor standard NEMA
Motor type 180AA
Net weight 464.0 lb
Number of poles 2
Number of reduced-diameter impellers 2
Power factor 1 0.88
Product family MTRE 64
Pump speed on which pump data are based 3541 rpm
Pump version A
Pumped liquid Emulsion
Rated current 36.5 A
Rated flow 339 US gpm
Rated head 249.4 ft
Rated power - P2 22 kW
Rated speed 480-3540 rpm
Rated voltage 3 x 460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature 68 °F
Service factor 1.15
Size of outlet connection 3 inch
Standard NEMA
Suitable for 50/60 Hz Y
Terminal box position 6
Type 180AA
Type of connection ANSI
Version A

Motor Curves

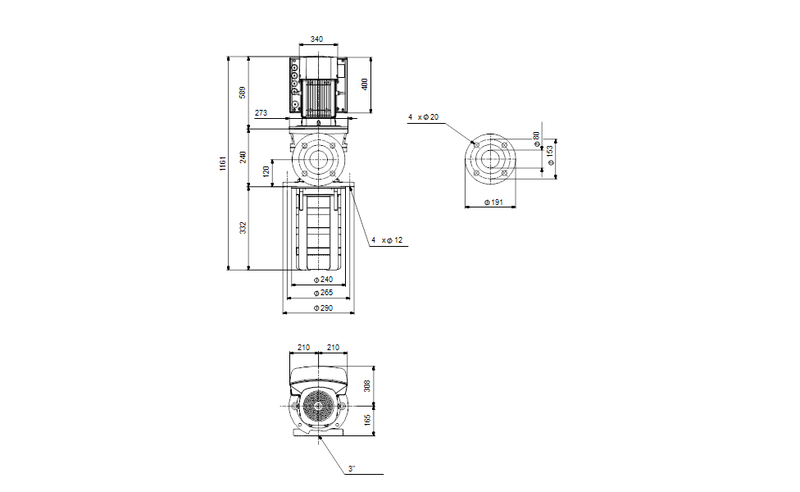

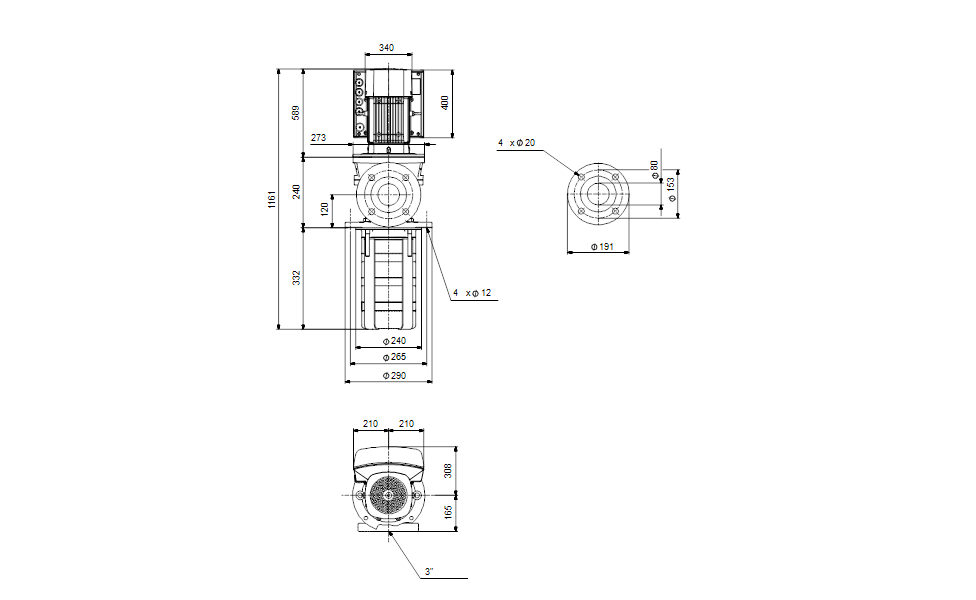

Dimensional Drawing

DWiring Diagram
