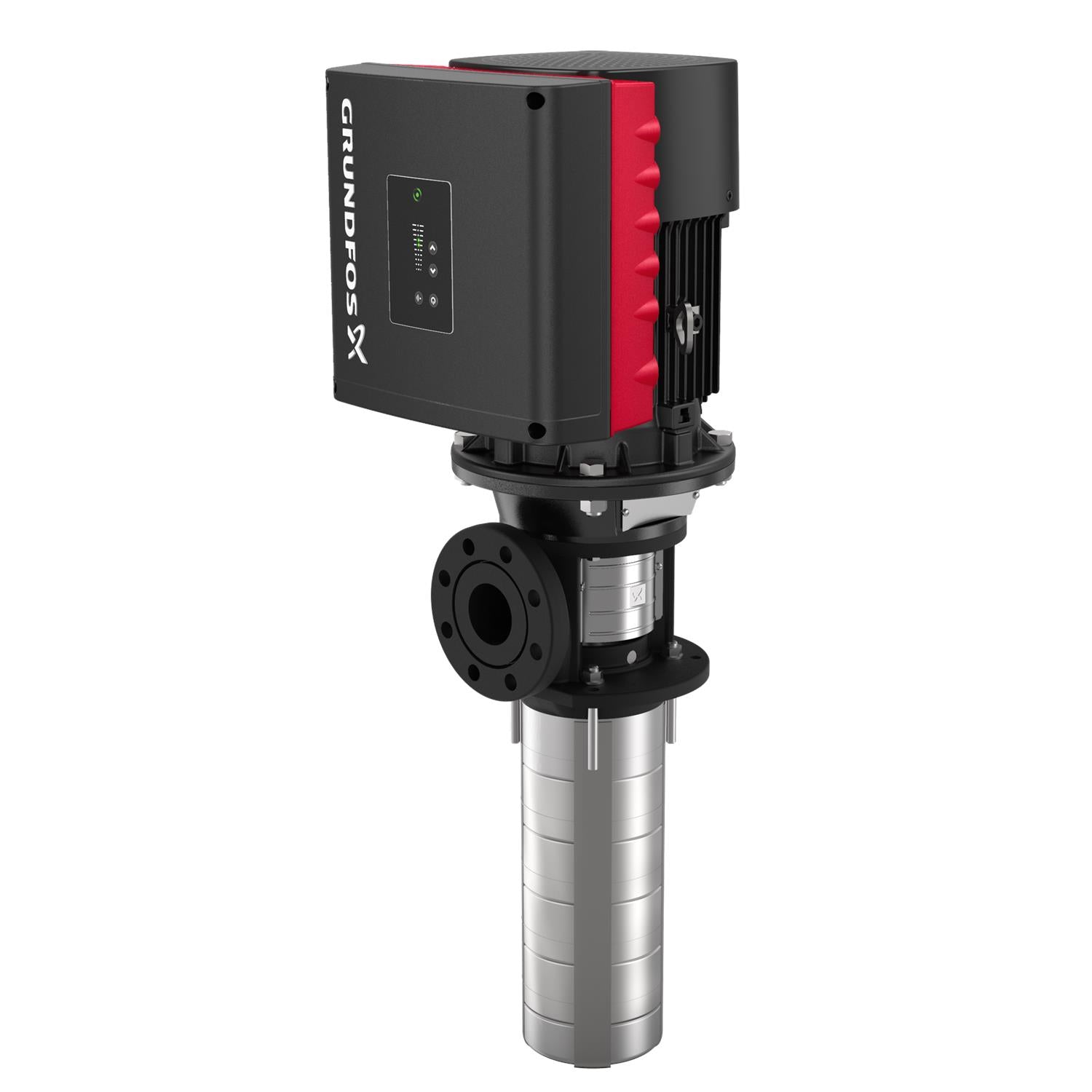

Grundfos 99068881 - MTRE 64-2/1-1 A-F-A-HUUV
Roll over image to zoom in Click on image to zoom
Grundfos 99068881 - MTRE 64-2/1-1 A-F-A-HUUV
Grundfos Pumps & Systems

Grundfos 99068881 - MTRE 64-2/1-1 A-F-A-HUUV

GRUNDFOSSKU: 99068881

Delivery date to be confirmed on Sales Order

or Call for most up to date lead times. (781) 281-8905

Description

⚠ Discontinued Product This model has been discontinued by Grundfos. Stock may be limited. Contact PumpStop to confirm availability or discuss a replacement model.
Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
99068881 · Submersible Multistage Pump — Tank Top Variable Speed
MTRE5.5HP380-500V3-Phase50 HzIE5IP55Stainless steel

The Grundfos 99068881 (MTRE 64-2/1-1 A-F-A-HUUV) is a Submersible Multistage Pump — Tank Top Variable Speed. Tank top multistage pump with integrated frequency converter. Nominal performance: 282US gpm at 46.59ft. Rated 380-500V, 3-Phase, 50 Hz. Applications include Machining.

Power
5.5HP
Voltage
380-500V
Phase
3-Phase
Max Flow
282US gpm
Max Head
46.59ft
Max Pressure
362.59psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Ultra-Premium Efficiency
IE5 motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — 99068881
Series: MTRE
Impeller Material: Stainless steel
Shaft Seal: HUUV
Flange Rating: PN 40
Technical Specifications
Model Number 99068881
Product Series MTRE
Series Description Submersible Multistage Pump — Tank Top Variable Speed
Power 5.5HP
Voltage 380-500V
Phase 3-Phase
Frequency 50 Hz
Motor Speed 360-4000rpm
Pump Speed 2899rpm
Full Load Current 7,60-6,20A
Motor Type 112MC
Motor Protection ELEC
Motor Efficiency Class IE5
Motor Efficiency 92.2%
Insulation Class F
Protection Class (IP) IP55
Nominal Flow 282US gpm
Nominal Head 46.59ft
Max Operating Pressure 362.59psi
Max Fluid Temperature 194°F
Max Ambient Temperature 122°F
Outlet Connection DN 80
Pipe Pressure Rating PN 40
Pipe Standard DIN
Impeller Material Stainless steel
Shaft Seal HUUV
Approvals / Certifications CE, UKCA, RCM
Applications
Machining
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 380-500V, 3-Phase, 50 Hz.
Temperature limits Do not exceed max fluid temperature 194°F or max ambient temperature 122°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. MTRE pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — MTRE Series
✓ Product Data Sheet — 99068881
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
Grundfos — 99068881 · 99068881Authorized Grundfos Distributor · pump-stop.com
EAN
5712606144327
Approvals
WEEE
Approvals for motor
WEEE
Built-in motor protection
ELEC
Cable gland entry
4xM20 + M25 blind plug
Chambers
2
Code for shaft seal
HUUV
Connect code
F
Connection
PN 40
Control panel
Standard
Curve tolerance
ISO9906:2012 3B
Density
62.29 lb/ft³
Enclosure class (IEC 34-5)
IP55
Energy approvals for motor
CE
Environmental approvals
WEEE
Environmental approvals for motor
WEEE
Flange size for motor
FT130
Frequency converter
Built-in
Function Module
FM300 - Advanced
Gross weight
237.0 lb
IE Efficiency class
IE5
Immersion depth
9.8 in
Impeller
Stainless steel
Impellers
1
Insulation class (IEC 85)
F
Liquid temperature range
14 .. 194 °F
Mains frequency
50 Hz
Material code
A
Material Pricing Group
32
Max pressure at stated temp
363 psi / 194 °F
Maximum ambient temperature
122 °F
Maximum operating pressure
25 bar
Minimum efficiency index, MEI ≥
0.7
Model
B
Motor
WEEE
Motor efficiency at full load 1
0.922
Motor standard
IEC
Motor type
112MC
Net weight
173.0 lb
Number of reduced-diameter impellers
1
Power factor 1
0.92-0.87
Pressure rating for connection
PN 40
Product family
MTRE 64
Pump speed on which pump data are based
2899 rpm
Pump version
A
Pumped liquid
Emulsion
Rated current
7.60-6.20 A
Rated flow
282 US gpm
Rated head
46.59 ft
Rated power - P2
4 kW
Rated speed
360-4000 rpm
Rated voltage
3 x 380-500 V
Real Time
Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature
68 °F
Size of outlet connection
DN 80
Standard
IEC
Suitable for 50/60 Hz
Y
Terminal box position
6
Type
112MC
Type of connection
DIN
Version
A
