Grundfos 98400084 - MTRE 5-8/8 A-WB-A-HUUV | Vertical | Multistage | Tank Mounted | Centrifugal

GrundfosSKU: 98400084

Price:
Sale price$7,675.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
98400084 · Submersible Multistage Pump — Tank Top Variable Speed
MTRE3HP440-480V3.0-Phase60 HzIE5IP55Stainless steel

The Grundfos 98400084 (MTRE 5-8/8 A-WB-A-HUUV) is a Submersible Multistage Pump — Tank Top Variable Speed. Tank top multistage pump with integrated frequency converter. Nominal performance: 30.4US gpm at 194.6ft. Rated 440-480V, 3.0-Phase, 60 Hz. Applications include Machining.

Power
3HP
Voltage
440-480V
Phase
3.0-Phase
Max Flow
30.4US gpm
Max Head
194.6ft
Max Pressure
435.11psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Ultra-Premium Efficiency
IE5 motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Genuine Grundfos Part

OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.

Full Traceability

Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.

Authorized Source

PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.

Confirm Compatibility

Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.

Technical Support Available

PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.

Contact for Availability

Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.

Model Information — 98400084
Series: MTRE
Impeller Material: Stainless steel
Shaft Seal: HUUV
Technical Specifications
Model Number 98400084
Product Series MTRE
Series Description Submersible Multistage Pump — Tank Top Variable Speed
Power 3HP
Voltage 440-480V
Phase 3.0-Phase
Frequency 60 Hz
Motor Speed 360-4000rpm
Pump Speed 3461rpm
Full Load Current 3.8A
Motor Type 90D
Motor Protection ELEC
Motor Efficiency Class IE5
Motor Efficiency 90.7%
Insulation Class F
Protection Class (IP) IP55
Nominal Flow 30.4US gpm
Nominal Head 194.6ft
Max Operating Pressure 435.11psi
Max Fluid Temperature 194°F
Max Ambient Temperature 122°F
Outlet Connection 1 1/4inch
Pipe Standard NPT(F)
Impeller Material Stainless steel
Shaft Seal HUUV
Approvals / Certifications CE, UKCA, RCM
Applications
Machining
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 440-480V, 3.0-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 194°F or max ambient temperature 122°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. MTRE pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — MTRE Series
✓ Product Data Sheet — 98400084
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5711494356218
Approvals CE
Approvals for motor CE
Built-in motor protection ELEC
Cable gland entry 4xM20 blind plug
Chambers 8
Code for shaft seal HUUV
Connect code WB
Connection 1 1/4 inch
Control panel Graphical
Curve tolerance ISO9906:2012 3B
Density 998.2 kg/m³
Enclosure class (IEC 34-5) IP55
Energy approvals for motor CE
Flange size for motor 182TC
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 44.6 kg
IE Efficiency class IE5
Immersion depth 331 mm
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -10 .. 90 °C
Mains frequency 60 Hz
Material code A
Material Pricing Group 32
Max pressure at stated temp 25 bar / 90 °C
Maximum ambient temperature 50 °C
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.57
Model A
Motor 182TC
Motor efficiency at full load 1 0.907
Motor standard NEMA
Motor type 90D
Net weight 29.9 kg
Number of reduced-diameter impellers 0
Power factor 1 0.89
Product family MTRE 5
Pump speed on which pump data are based 3461 rpm
Pump version A
Pumped liquid Emulsion
Rated current 3.8 A
Rated flow 115 l/min
Rated head 59.3 m
Rated power - P2 2.2 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Selected liquid temperature 20 °C
Service factor 1.15
Size of outlet connection 1 1/4 inch
Standard NEMA
Suitable for 50/60 Hz Y
Terminal box position 6
Type 90D
Type of connection NPT(F)
Version A

Motor Curves

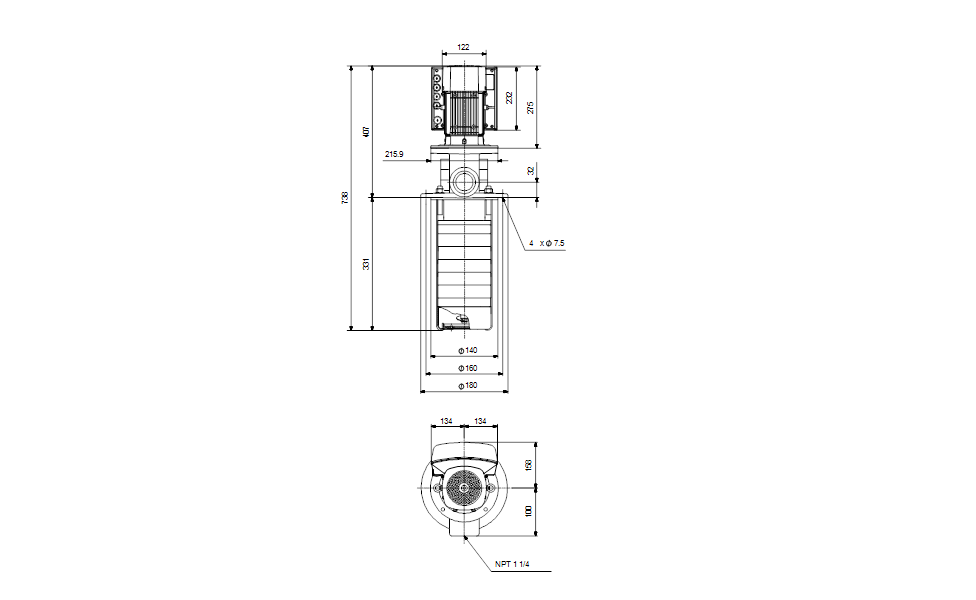

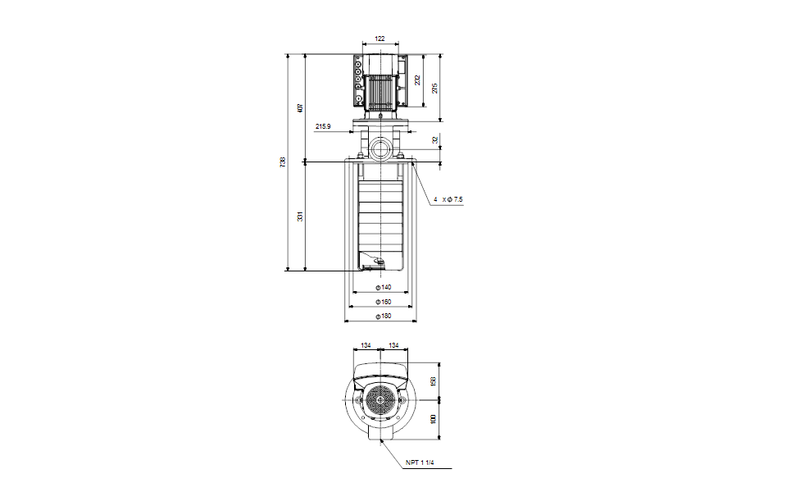

Dimensional Drawing

DWiring Diagram
